8291SRM75.32A005

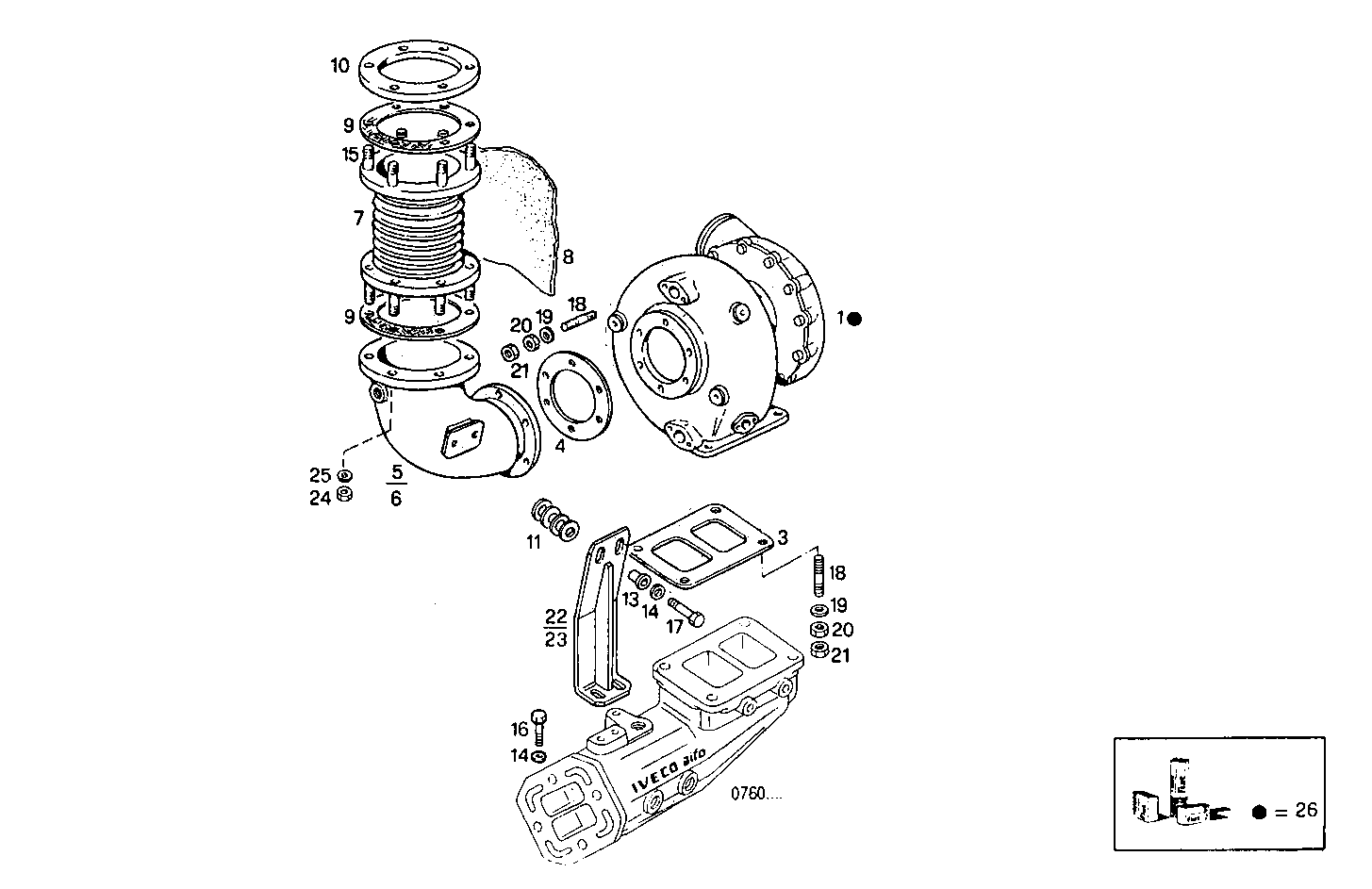

2400.154 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8014109 | WATER COOL.TURBOCHARGER ASSY K.K.K. |
| 3 | 4512366 | GASKET |
| 4 | 42075987 | GASKET |
| 5 | 8014979 | EXHAUST ELBOW LEFT |
| 6 | 8014978 | EXHAUST ELBOW RIGHT |
| 7 | 8016096 | EXHAUST BELLOWS |
| 8 | 8014758 | PROTECTION |
| 9 | 8010072 | GASKET |
| 10 | 8010113 | FLANGE |
| 11 | 8014696 | SPRING |
| 13 | 8014697 | SPACING BAR |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 16731234 | STUD M10X1,5X25 |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
| 17 | 16605734 | HEXAGON BOLT M8X30 MM |
| 18 | 16731334 | STUD M10X30 |
| 19 | 16665614 | WASHER Ø10,5 MM |
| 20 | 17038131 | HEXAGON NUT M10 |
| 21 | 16979631 | HEXAGON NUT M10 |
| 22 | 8014982 | RETAINER |
| 23 | 8015877 | RETAINER |
| 24 | 17038121 | HEXAGON NUT M10 |
| 25 | 17090174 | SPRING WASHER Ø10X20 MM |
| 26 | 8092488 | KIT-TURBOCHARGER |
