8291SRM75.32A007

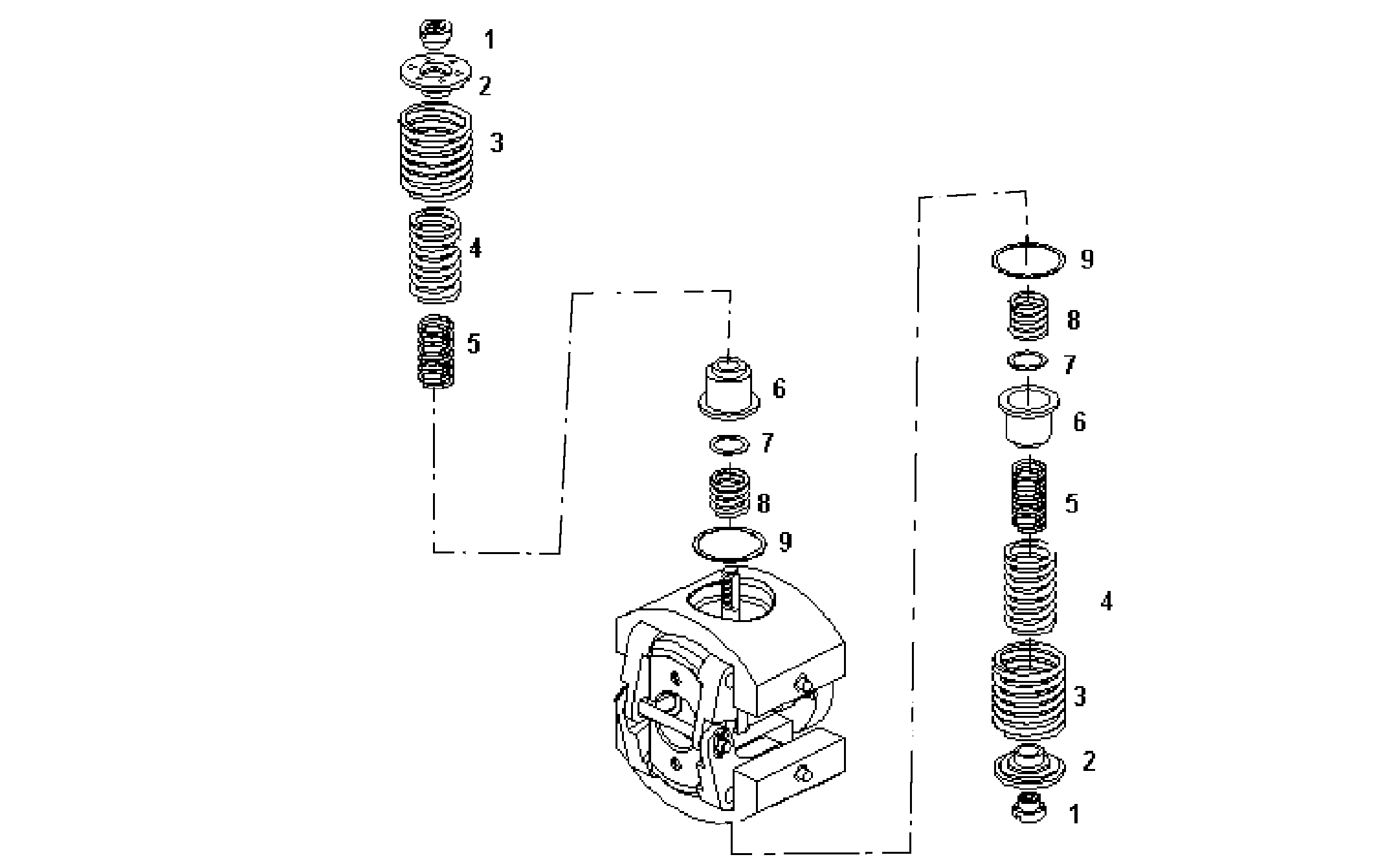

1450.001 INJECTION PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 79035483 | FASTENING RING |
| 2 | 8100094 | WASHER/PLATE |
| 3 | 4935669 | SPRING |
| 4 | 764051 | SPRING |
| 5 | 8011993 | SPRING |
| 6 | 4936834 | WASHER/PLATE |
| 7 | 9001897 | SHIM |
| 8 | 8100322 | SPRING |
| 9 | 8009760 | SHIM |
