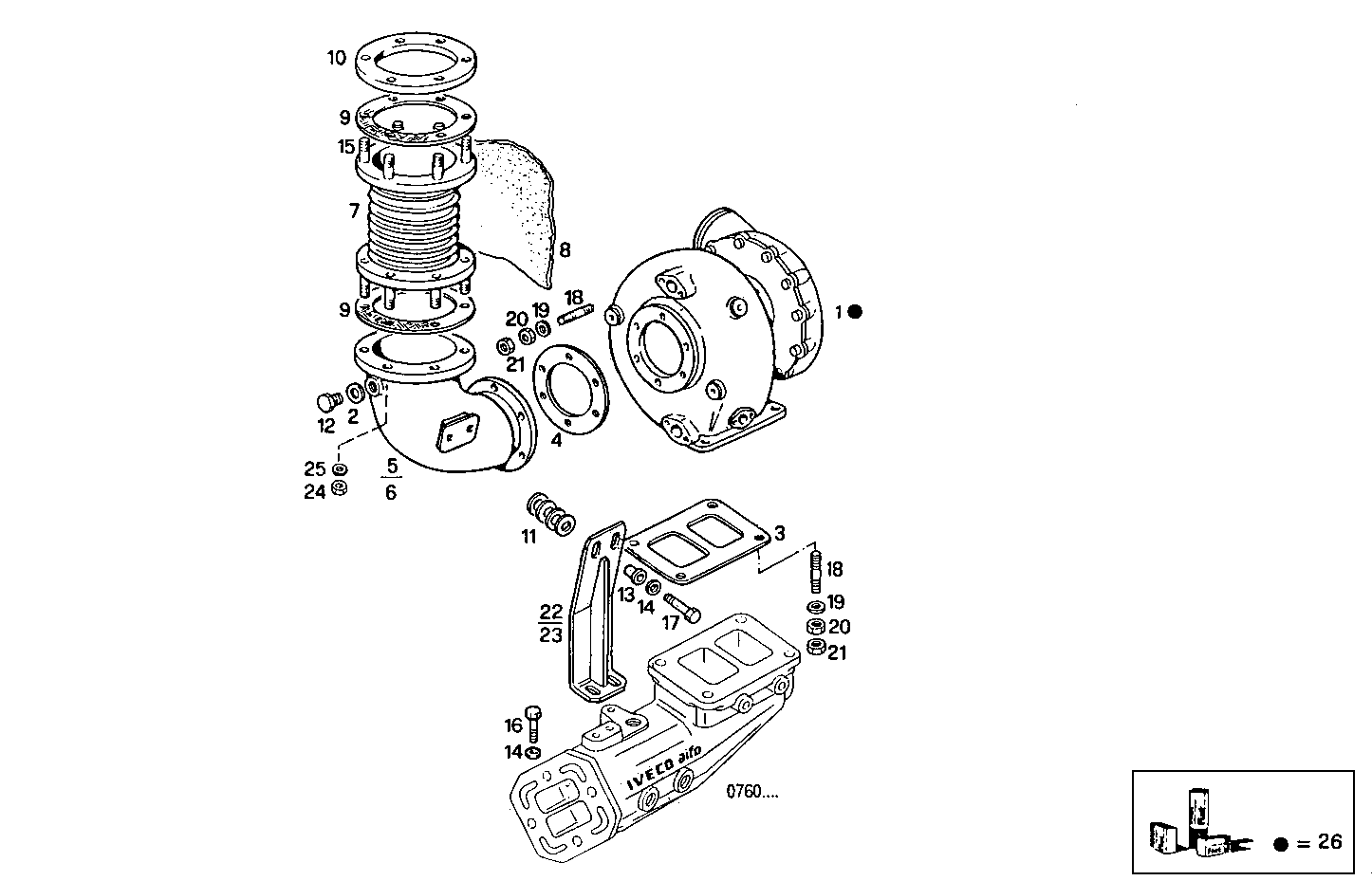

| Item |
Part number |
Description |
|
1 |
8014109 |
WATER COOL.TURBOCHARGER ASSY K.K.K. |
|
2 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
3 |
4512366 |
GASKET |
|
4 |
42075987 |
GASKET |
|
5 |
8014979 |
EXHAUST ELBOW LEFT |
|
6 |
8014978 |
EXHAUST ELBOW RIGHT |
|
7 |
8016096 |
EXHAUST BELLOWS |
|
8 |
8014758 |
PROTECTION |
|
9 |
8010072 |
GASKET |
|
10 |
8010113 |
FLANGE |
|
11 |
8014696 |
SPRING |
|
12 |
16992211 |
THREADED PLUG M12X1,5 |
|
13 |
8014697 |
SPACING BAR |
|
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
15 |
16731234 |
STUD M10X1,5X25 |
|
16 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
17 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
18 |
16731334 |
STUD M10X30 |
|
19 |
16665614 |
WASHER Ø10,5 MM |
|
20 |
17038131 |
HEXAGON NUT M10 |
|
21 |
16979631 |
HEXAGON NUT M10 |
|
22 |
8014982 |
RETAINER |
|
23 |
8015877 |
RETAINER |
|
24 |
17038121 |
HEXAGON NUT M10 |
|
25 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
26 |
8092488 |
KIT-TURBOCHARGER |
