8291SRM75.32A007

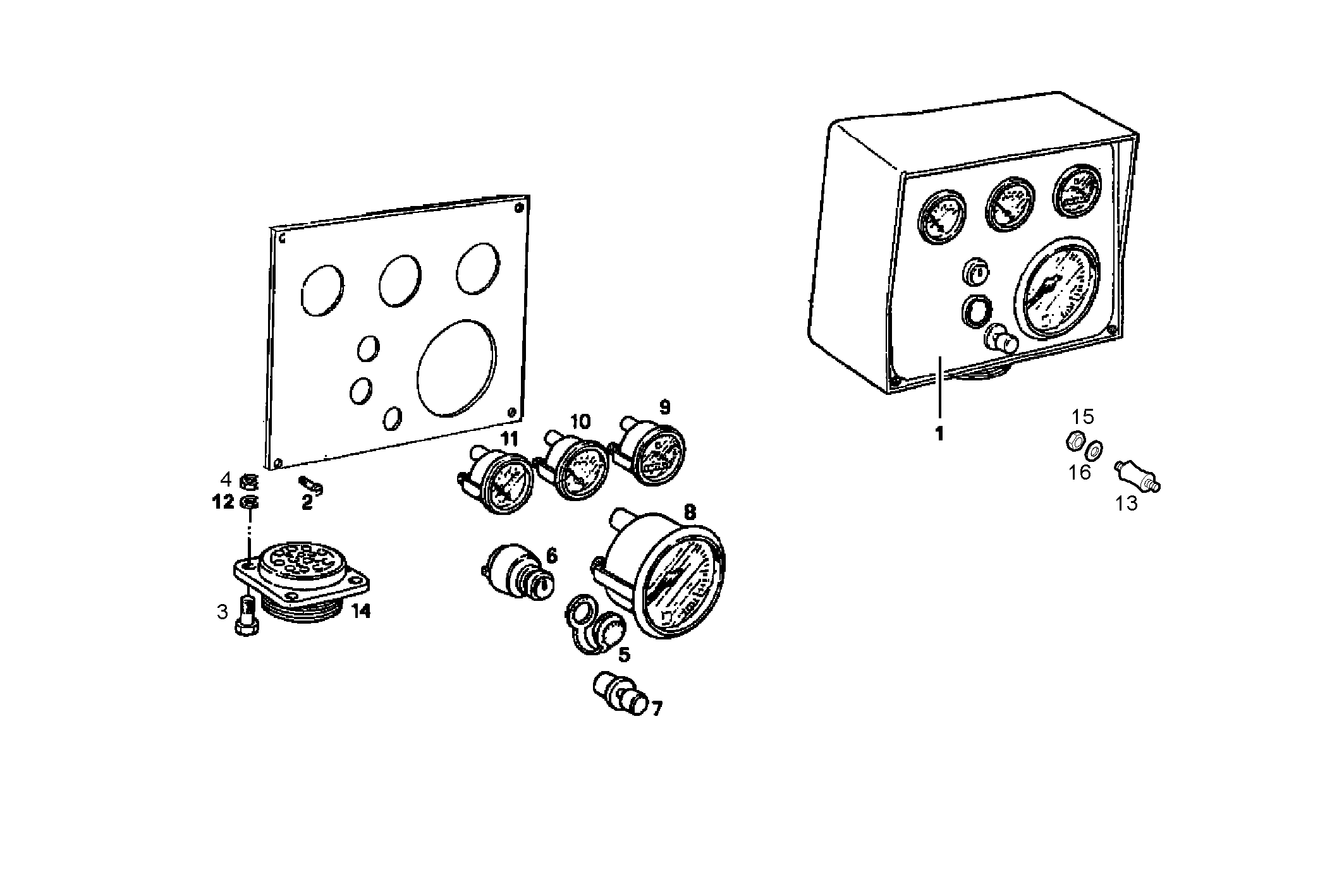

5630.010 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8025108 | INSTRUMENTS BOARD ASSY |
| 2 | 8103662 | SCREW M4X10 |
| 3 | 17129714 | SCREW |
| 4 | 17037521 | NUT M3 |
| 5 | 8110226 | CAP |
| 6 | 8103708 | SWITCH |
| 7 | 8025024 | PUSH BUTTON STOP |
| 8 | 8030622 | REVOLUTION COUNTER |
| 9 | 8023442 | THERMOMETER |
| 10 | 8030614 | THERMOMETER |
| 11 | 8030615 | PRESSURE GAUGE 10 BAR |
| 12 | 17094004 | WASHER �3 MM |
| 13 | 4910949 | RUBBER LUG |
| 14 | 8105629 | CONNECTION |
| 15 | 17037821 | HEXAGON NUT M6X1 |
| 16 | 17088474 | WASHER �6X12 MM |
