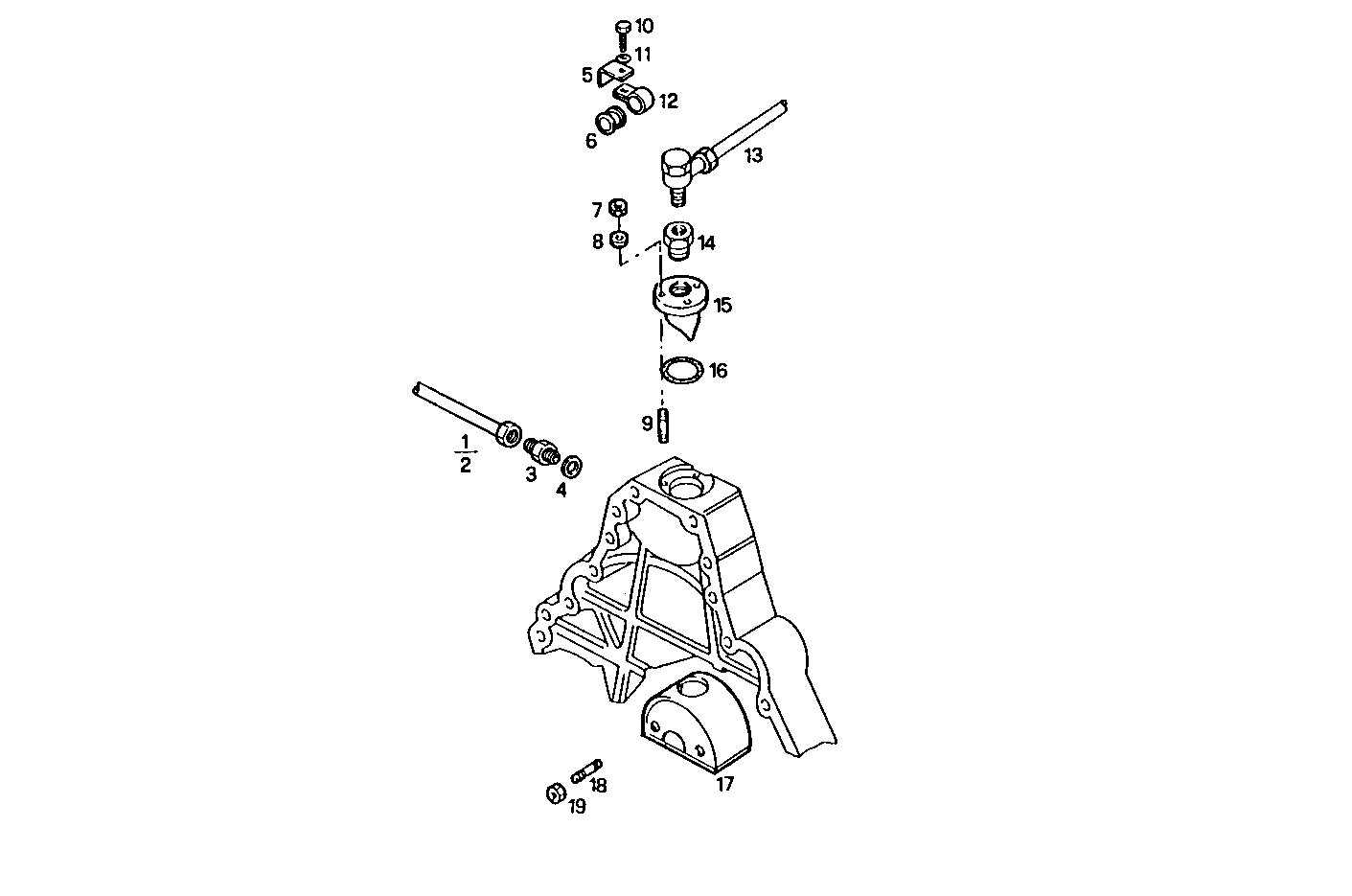

| Item |
Part number |
Description |
|
1 |
8011452 |
OIL LINE LEFT |
|
2 |
8011453 |
OIL LINE RIGHT |
|
3 |
8012087 |
PIPE SOCKET |
|
4 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
5 |
8102227 |
RETAINER |
|
6 |
8011236 |
RUBBER PAD |
|
7 |
17037931 |
HEXAGON NUT M8X1,25 |
|
8 |
17094804 |
WASHER Ø8X15 MM |
|
9 |
13516521 |
STUD M8X12 MM |
|
10 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
11 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
12 |
4755963 |
FASTENING BRACKET |
|
13 |
8011458 |
BREATHER PIPE |
|
14 |
8011159 |
PIPE SOCKET |
|
15 |
8011158 |
FLANGE |
|
16 |
17282881 |
O-RING 2,62x32,99 |
|
17 |
4857392 |
BREATHER |
|
18 |
13540824 |
STUD M6X12X14 |
|
19 |
14047221 |
HEXAGON NUT M6 |
