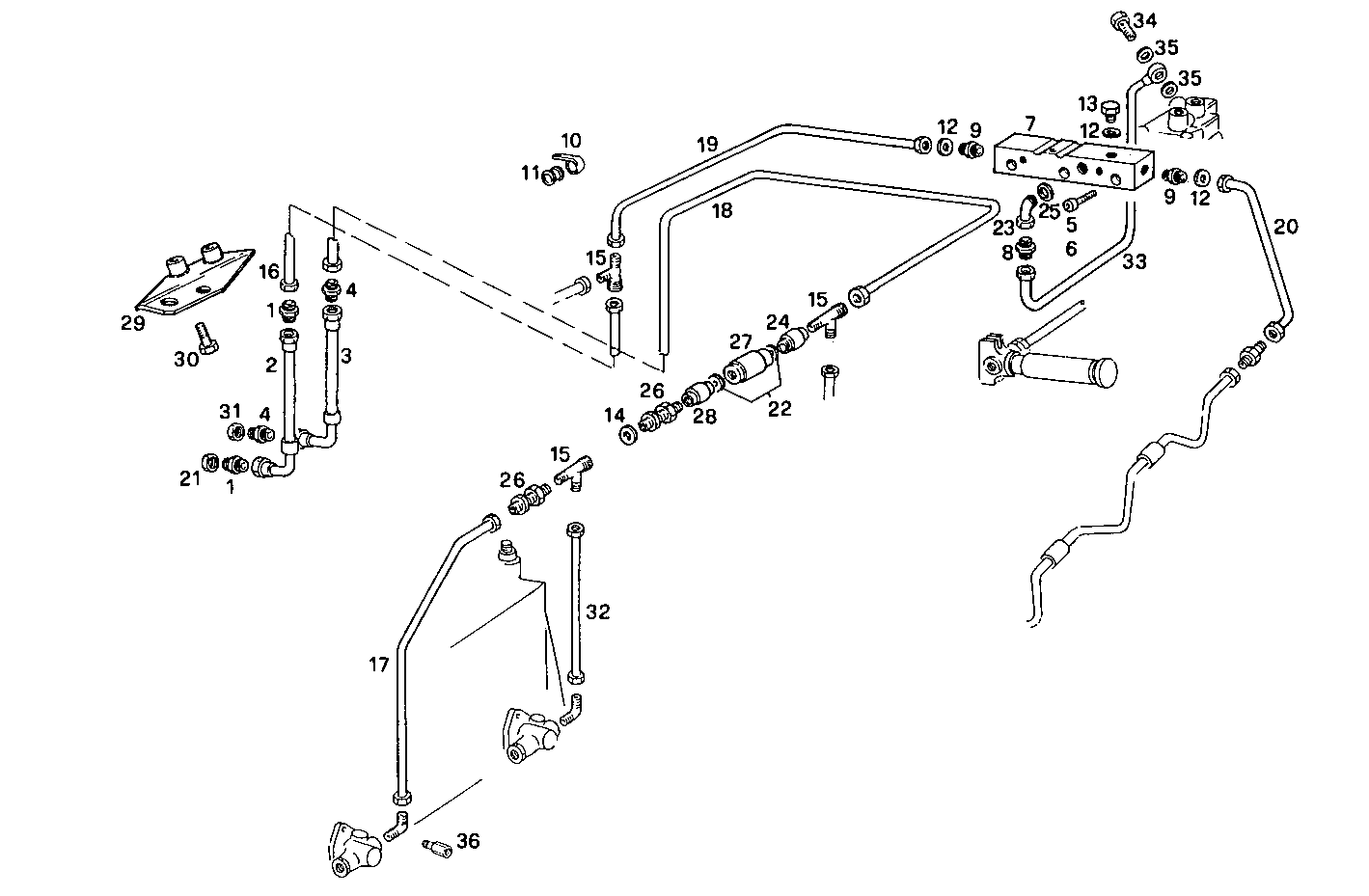

| Item |
Part number |
Description |
|
1 |
8011138 |
PIPE SOCKET 1/2''/M16X1,5 |
|
2 |
8112285 |
FUEL LINE |
|
3 |
8010406 |
FUEL LINE |
|
4 |
8010502 |
PIPE SOCKET M22X1,5 |
|
5 |
16691324 |
CYLIND-HEAD SCREW M8X60 MM |
|
6 |
16691224 |
CYLIND-HEAD SCREW M8X55 MM |
|
7 |
8018178 |
DISTRIBUTOR |
|
8 |
16500011 |
PIPE SOCKET |
|
9 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
10 |
4763804 |
FASTENING BRACKET |
|
11 |
4757122 |
RUBBER PAD |
|
12 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
13 |
16992311 |
LOCK PLUG M14X1,5 |
|
14 |
11270260 |
SEAL GASKET Ø14X18 MM |
|
15 |
8011303 |
PIPE SOCKET |
|
16 |
8020666 |
FUEL LINE |
|
17 |
8018184 |
FUEL LINE |
|
18 |
8020660 |
FUEL LINE |
|
19 |
8018188 |
FUEL LINE |
|
20 |
8018189 |
FUEL LINE |
|
21 |
16508911 |
NUT M18X1,5 |
|
22 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
23 |
16503811 |
ELBOW COUPLING |
|
24 |
8018215 |
PIPE SOCKET |
|
25 |
4858606 |
GASKET Ø10X14X1 MM |
|
26 |
8018203 |
PIPE SOCKET |
|
27 |
8018220 |
VALVE |
|
28 |
8011304 |
PIPE SOCKET |
|
29 |
8014474 |
SUPPORT |
|
30 |
16605924 |
SCREW M8X40 MM |
|
31 |
16509011 |
NUT M22X1,5X7 MM |
|
32 |
8018837 |
FUEL LINE |
|
33 |
8021334 |
FUEL LINE |
|
34 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
35 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
36 |
8017715 |
PIPE SOCKET |
