8291SRM85.12

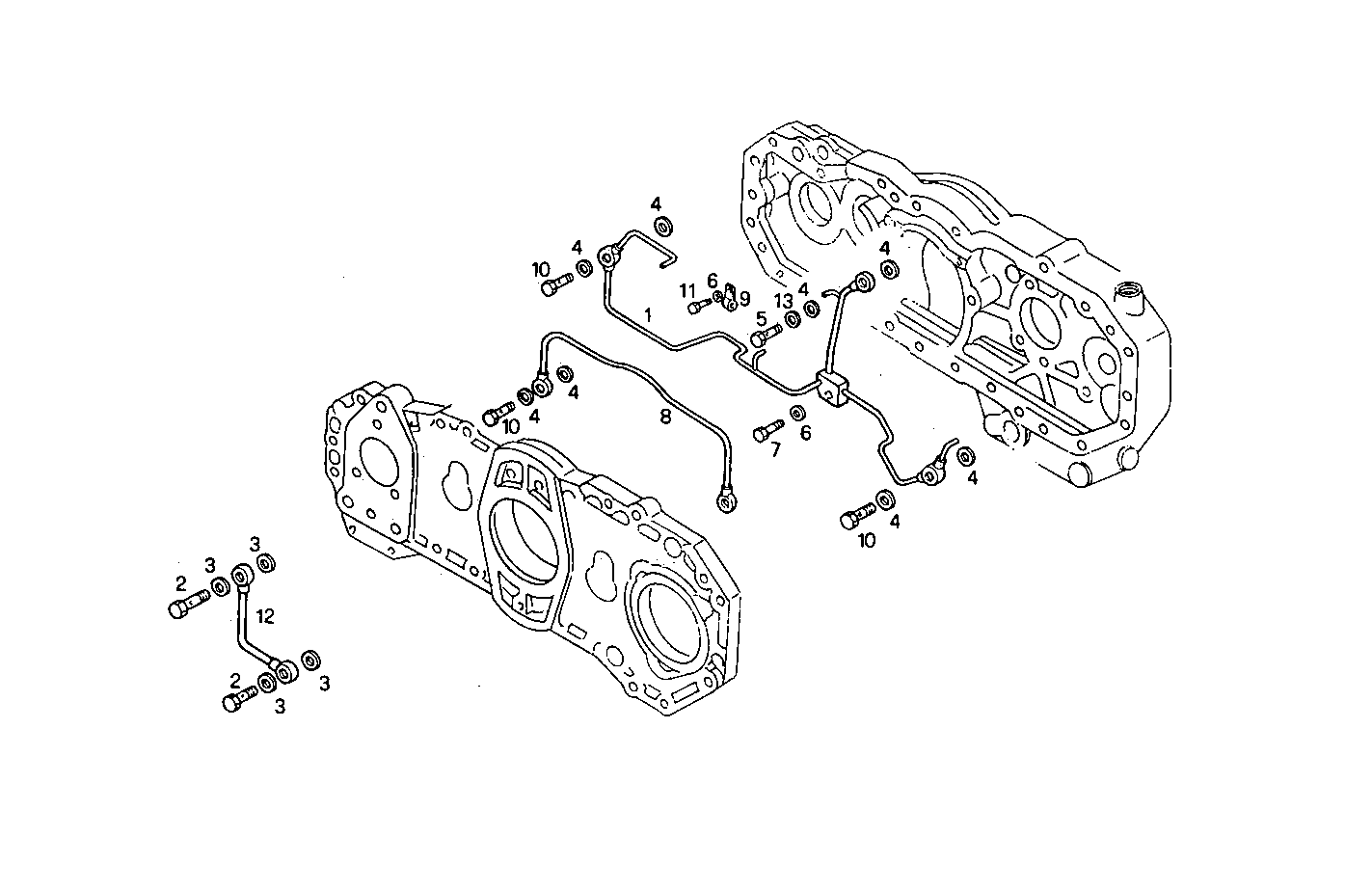

3010.094/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8012850 | OIL LINE |
| 2 | 4864084 | BANJO BOLT M16X1,5 |
| 3 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 4 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 5 | 4795453 | SCREW CONNECTOR |
| 6 | 17094714 | WASHER Ø6,4X12 MM |
| 7 | 16603824 | SCREW M6X25 |
| 8 | 8012847 | OIL LINE |
| 9 | 4791489 | CLIP |
| 10 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 11 | 16603524 | SCREW M6X12 MM (8.8) |
| 12 | 8013966 | OIL LINE |
| 13 | 852409 | LOCKING PLATE Ø10,5 MM |
