8291SRM85.12

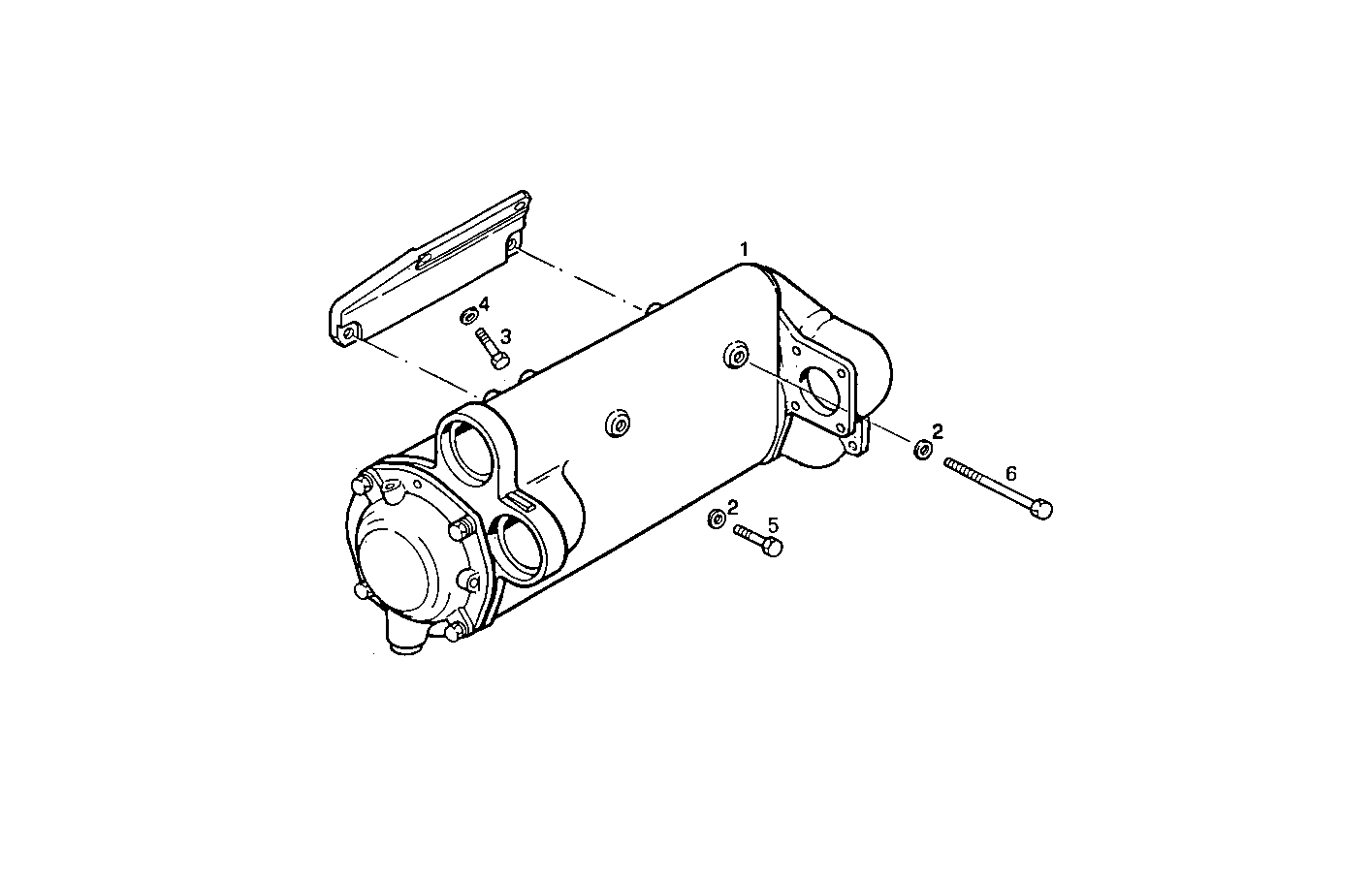

3370.024/01 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8014701 | WATER/SEA WATER HEAT EXCH ASSY |
| 2 | 17091074 | WASHER Ø12X24X2,8 MM |
| 3 | 16614521 | SCREW M16X35 |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 16610124 | HEXAGON BOLT M12X40 MM |
| 6 | 15542321 | HEXAGON BOLT M12X1,25X170 MM |
