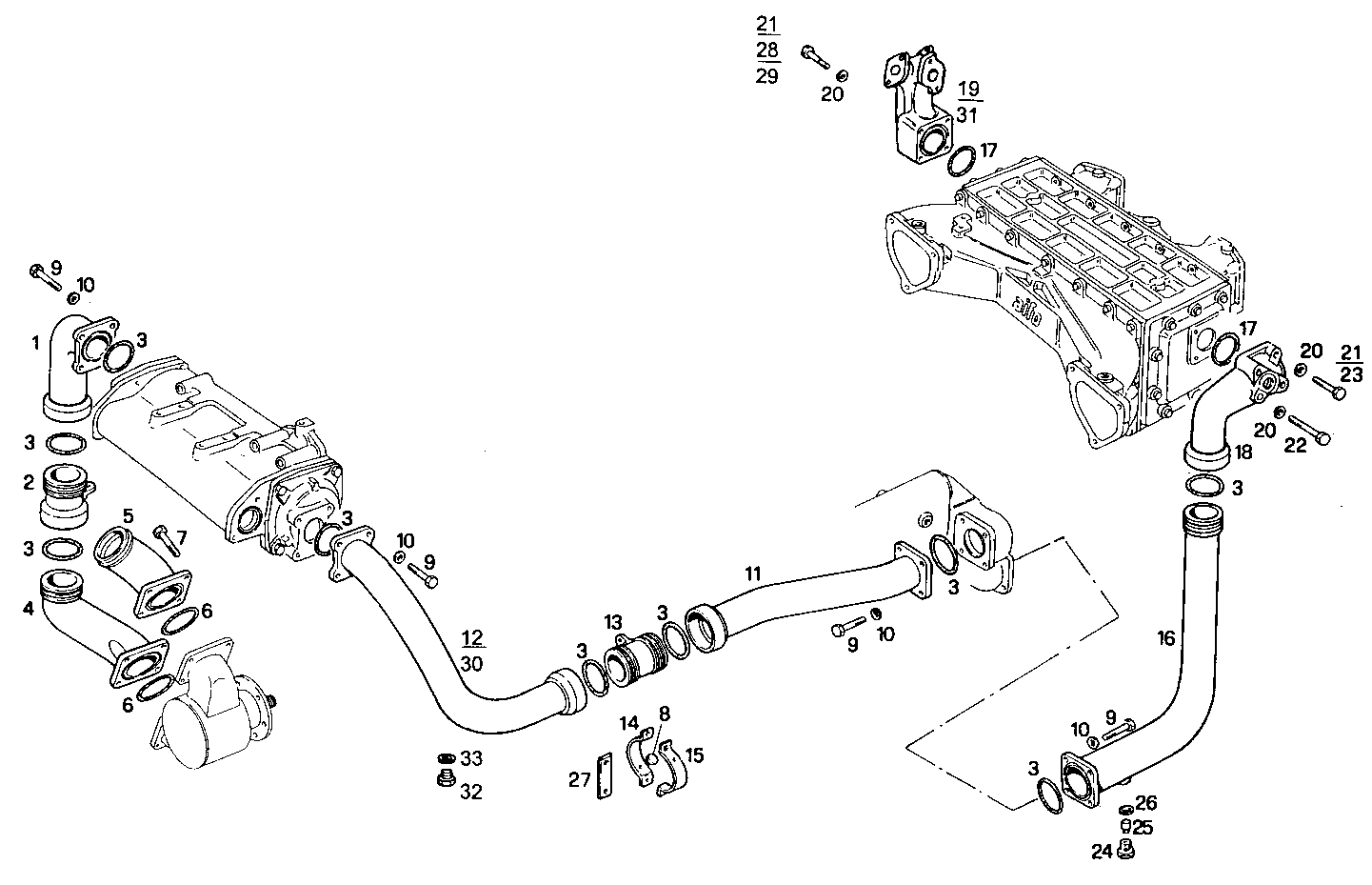

| Item |
Part number |
Description |
|
1 |
8010568 |
WATER PIPE |
|
2 |
8010567 |
SPACING BAR |
|
3 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
4 |
8010715 |
WATER PIPE |
|
5 |
8010688 |
WATER PIPE |
|
6 |
17290781 |
O-RING Ø78,97X3,53 MM |
|
7 |
8014453 |
SCREW |
|
8 |
1366290 |
RUBBER LUG |
|
9 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
8014933 |
WATER PIPE |
|
12 |
8010438 |
WATER PIPE |
|
13 |
8010462 |
SPACING BAR |
|
14 |
8011429 |
CLAMP |
|
15 |
8011430 |
CLAMP |
|
16 |
8014937 |
WATER PIPE |
|
17 |
17290281 |
O-RING Ø63,09 MM SP=3,53 MM |
|
18 |
8012415 |
INTAKE ELBOW |
|
19 |
8014913 |
WATER PIPE |
|
20 |
17101634 |
SPRING WASHER Ø10X16X2,5 MM |
|
21 |
16693224 |
SCREW M10X1,5X90 MM [from 01-96] |
|
22 |
16692824 |
CYLIND-HEAD SCREW M10X60 MM |
|
23 |
16693024 |
SCREW |
|
24 |
8101771 |
PLUG M28 |
|
25 |
8101772 |
SACRIFICAL ANODE Ø20 MM |
|
26 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
|
27 |
8011592 |
RETAINER |
|
28 |
16692424 |
CYLIND-HEAD SCREW M10X40 MM |
|
29 |
16693324 |
SCREW [up to 01-96] |
|
30 |
8019981 |
WATER PIPE [from 01-96] |
|
31 |
8017650 |
WATER PIPE [from 01-96] |
|
32 |
16992440 |
THREADED PLUG M16X1,5 |
|
33 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
