8360SRC20.00

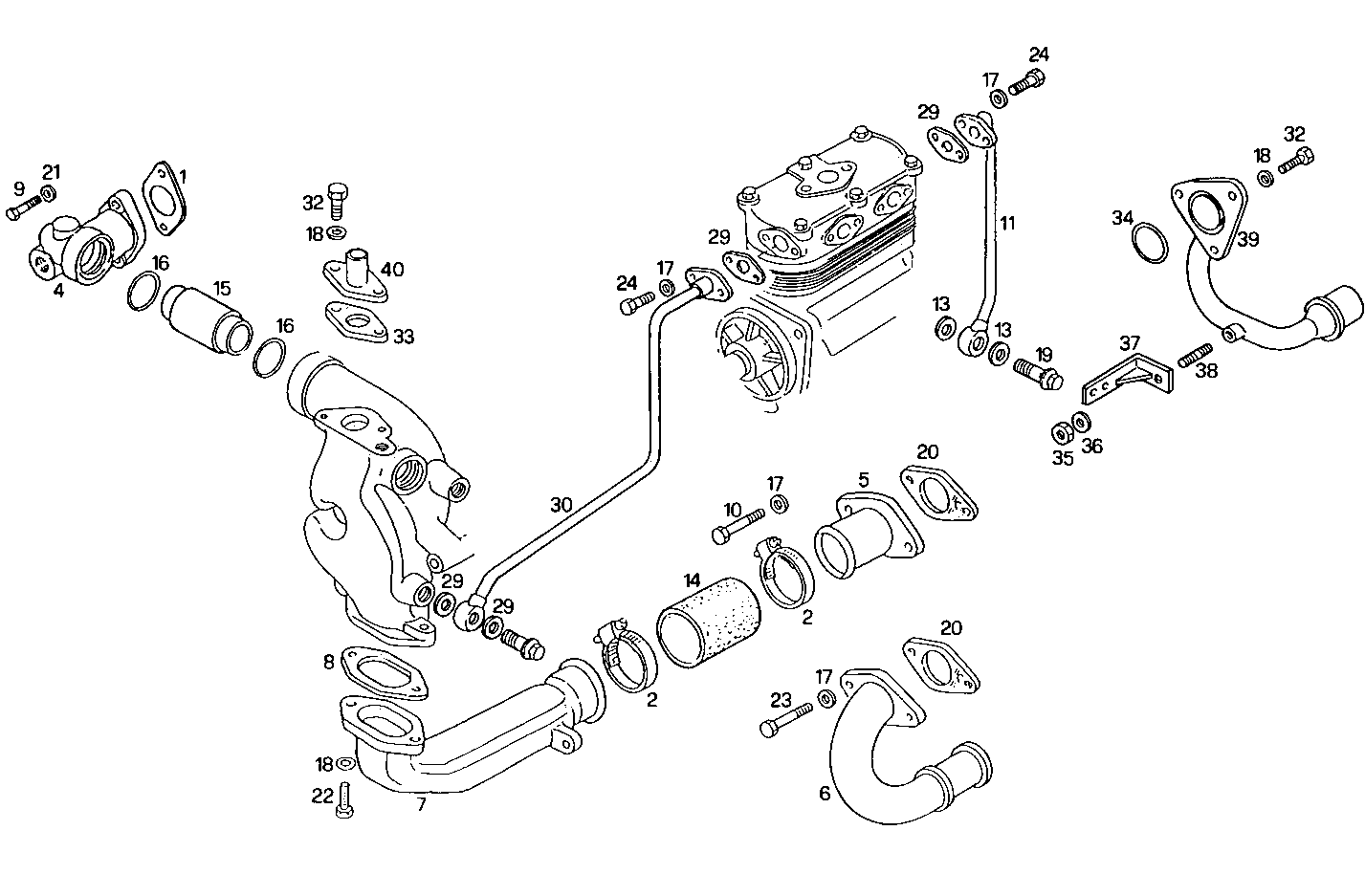

3210.134 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4853484 FLAT ENGINE GASKET
2 17764992 CLIP Ø50-70 MM
4 4853482 WATER PIPE
5 4853477 WATER PIPE
6 99468904 WATER PIPE
7 99441780 WATER PIPE
8 4853480 FLAT ENGINE GASKET
9 10923621 HEXAGON BOLT M10X1,25X35 MM
10 16606924 SCREW M8X110
11 98480582 WATER PIPE
13 98474309 WASHER Ø16X24 MM SP=1,9 MM
14 98421381 WATER HOSE
15 4853483 WATER HOSE
16 98465115 O-RING
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17094914 WASHER 8x16
19 4864084 BANJO BOLT M16X1,5
20 98412396 GASKET
21 17095114 WASHER Ø10X21 MM
22 16605734 HEXAGON BOLT M8X30 MM
23 16607024 HEXAGON BOLT M8X120 MM
24 16043324 HEXAGON BOLT M8X18 MM
29 4863497 FLAT ENGINE GASKET
30 98480509 WATER PIPE
32 16605624 HEXAGON BOLT M8X25 MM (8.8)
33 4853511 FLAT ENGINE GASKET
34 98465109 O-RING
35 17037931 HEXAGON NUT M8X1,25
36 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
37 99441656 RETAINER
38 16729224 STUD M8X16 MM
39 99440165 WATER PIPE
40 98497507 PIPE SOCKET
