8360SRC21.00

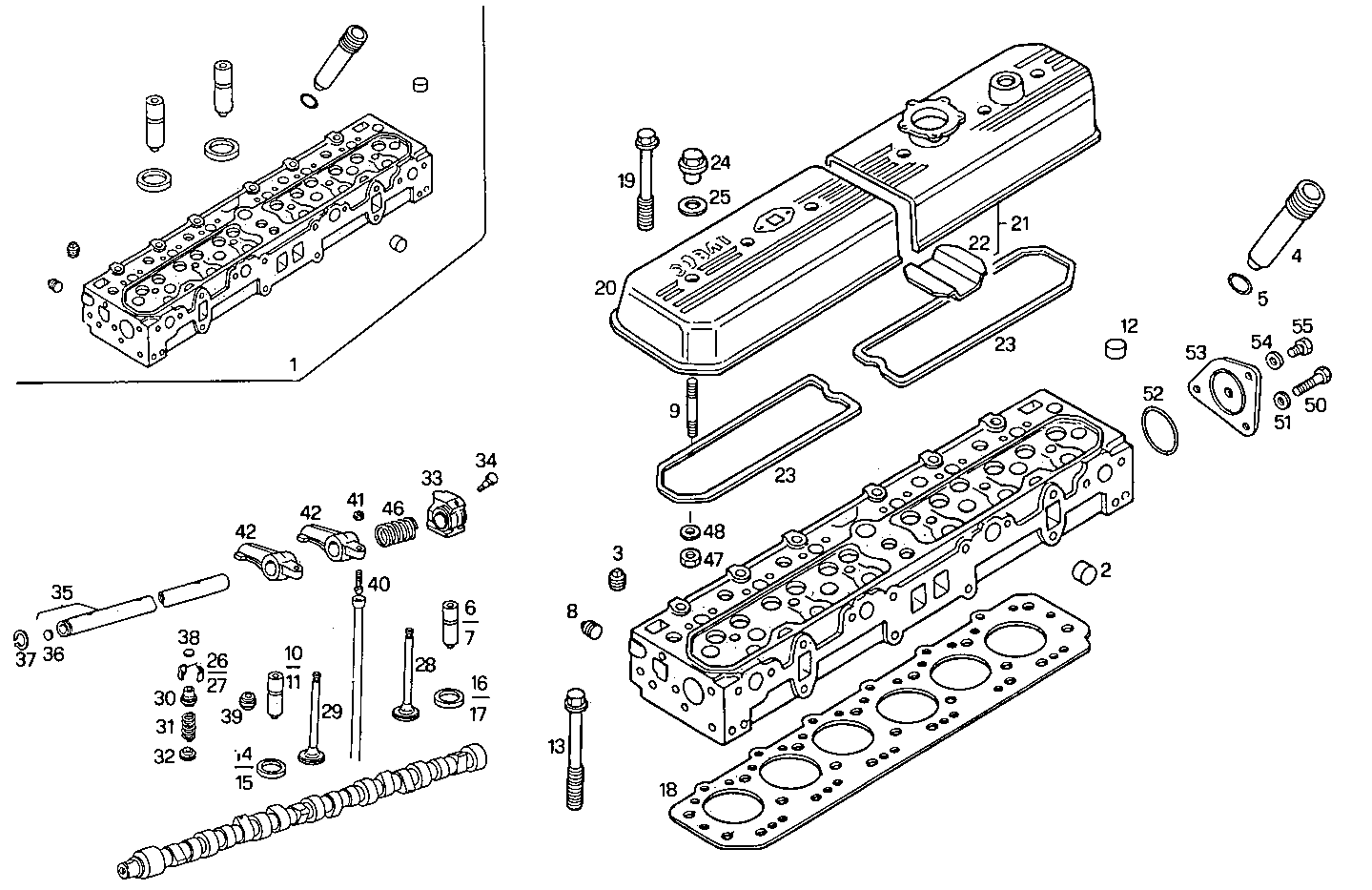

0600.115 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 98443489 CYLINDER HEAD ASSY
2 16990870 LOCK PLUG Ø28 MM
3 14326001 THREADED PLUG M10X1,25
4 4857426 NOZZLE HOLDER SEAT
5 17278981 O-RING Ø25,12 MM SP=1,78 MM
6 4861816 VALVE GUIDE INLET
7 4861818 VALVE GUIDE +0,2 INLET
8 14326101 THREADED PLUG M8X1,25
9 98417097 STUD
10 4861811 VALVE GUIDE EXHAUST
11 4861813 VALVE GUIDE +0,2 EXHAUST
12 16990670 LOCK PLUG Ø22 MM
13 98415216 CYL.HEAD STUD
14 1908356 VALVE SEAT STD. EXHAUST
15 1908357 VALVE SEAT +0.20 EXHAUST
16 1908354 VALVE SEAT STD. INLET
17 1908355 VALVE SEAT +0.20 INLET
18 98497505 CYL.HEAD GASKET
19 4851870 HEXAGON BOLT
20 99444868 CYL. HEAD COVER FRONT
21 99444877 CYL. HEAD COVER ASSY REAR
22 98466591 DEFLECTOR PLATE
23 98449318 HEAD COVER GASKET
24 98418750 NUT
25 98418749 WASHER
26 61577211 VALVE CONE
27 61320851 VALVE CONE
28 98497241 INLET VALVE
29 1908427 EXHAUST VALVE
30 98450581 SPRING CAP
31 98450393 ENGINE VALV.SPRING
32 61577212 WASHER
33 4851896 ROCKER BRACKET ASSY
34 61577283 HEXAGON BOLT
35 98480252 ROCKER SHAFT ASSY
36 16988101 LOCK PLUG Ø16 MM
37 16866376 CIRCLIP Ø24 MM
38 61316052 CAP
39 4861823 OIL RETAINER
40 4786841 ROCKER ARM SCREW
41 61584377 NUT [from 298109]
42 98479642 ROCKER ARM ASSY
46 61577214 SPRING
47 17042931 NUT M12
48 17095314 WASHER Ø12X24 MM [up to ...]
50 16605524 HEXAGON BOLT M8X20 MM
51 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
52 98465109 O-RING
53 98474666 COVER REAR
54 4858609 WASHER Ø16X22 MM SP=1,5 MM
55 16992411 THREADED PLUG M16X1,5
