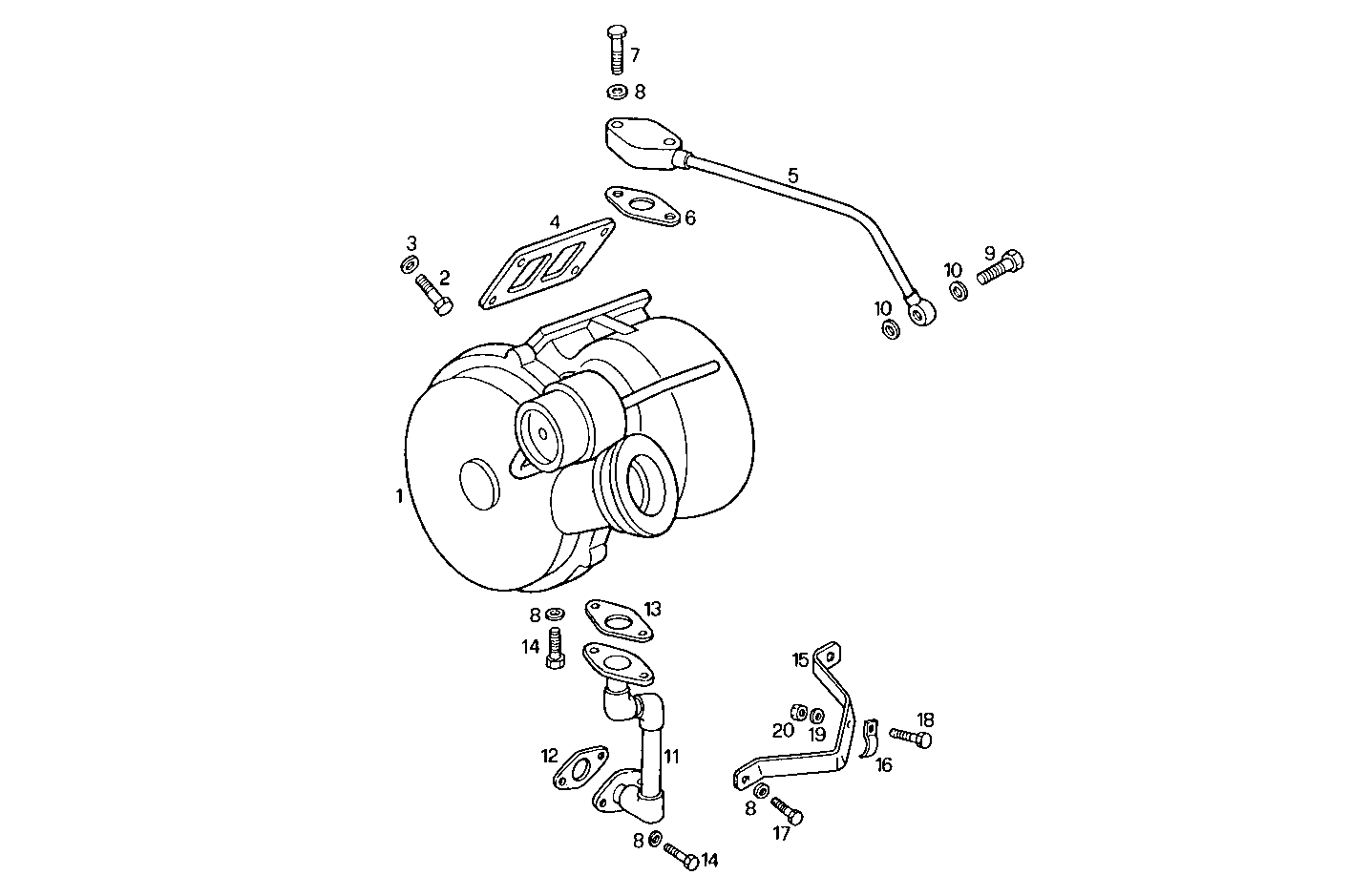

2400.104 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 99443287 TURBOCHARGER ASSY
2 98491312 HEXAGON BOLT
3 17095114 WASHER Ø10X21 MM
4 4853250 FLAT ENGINE GASKET
5 99454607 OIL LINE
6 98415922 FLAT ENGINE GASKET
7 16605824 HEXAGON BOLT M8X35 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 4864084 BANJO BOLT M16X1,5
10 98474309 WASHER Ø16X24 MM SP=1,9 MM
11 98441262 OIL LINE
12 98411814 FLAT ENGINE GASKET
13 98412509 FLAT ENGINE GASKET
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 98495109 FASTENING BRACKET
16 98495111 RETAINER
17 16605424 SCREW M8X16 MM (8.8)
18 16603624 HEXAGON BOLT M6X16 MM (8.8)
19 17088474 WASHER Ø6X12 MM
20 17037821 HEXAGON NUT M6X1
