8360SRC22.00

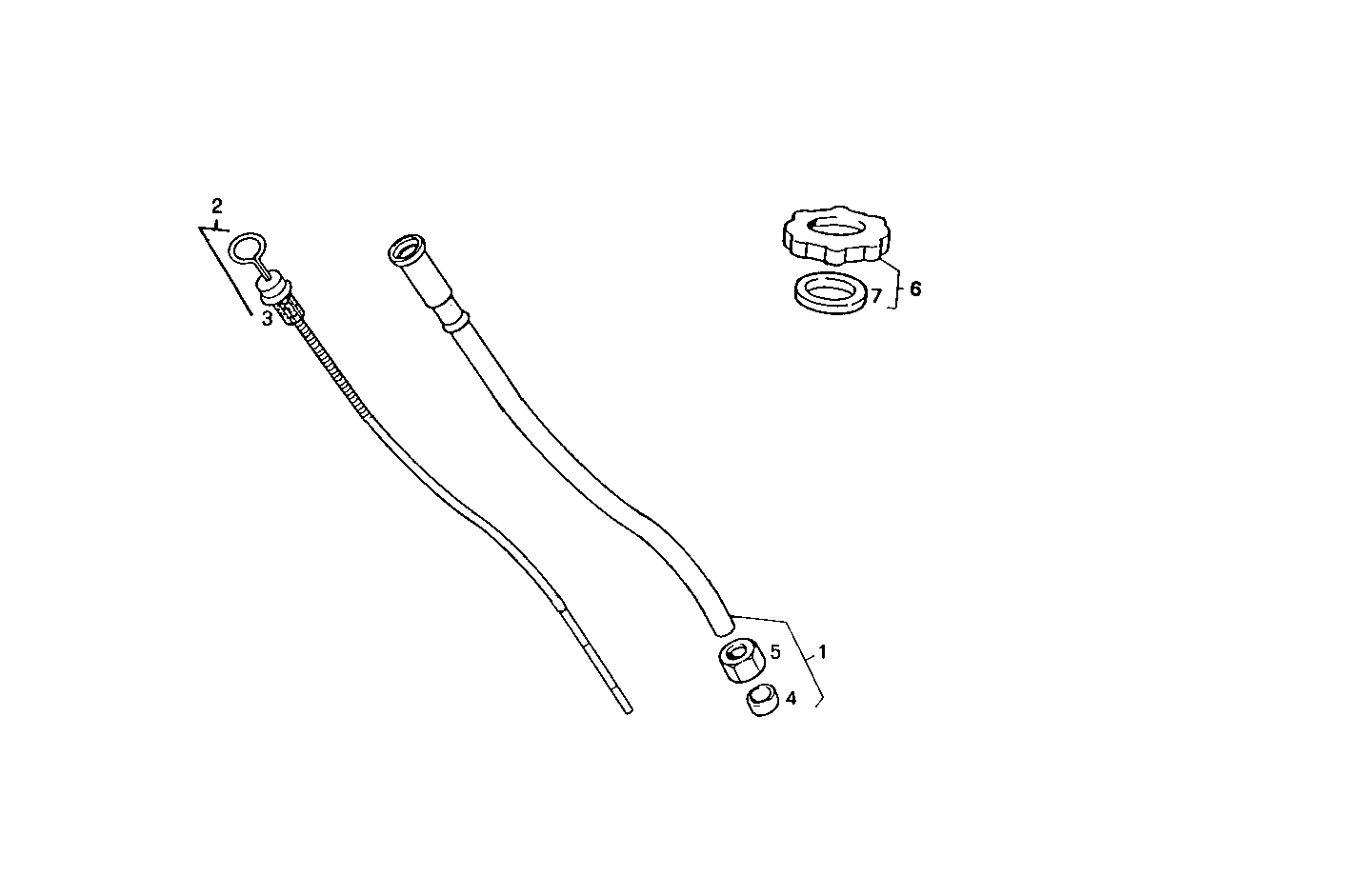

2710.064 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98461865 | OIL LEVEL TUBE ASSY |
| 2 | 98461884 | OIL DIPSTICK ASSY |
| 3 | 98417751 | RUBBER GASKET |
| 4 | 4641221 | RING |
| 5 | 4845669 | NUT |
| 6 | 98418980 | OIL FILLER PLUG ASSY |
| 7 | 98418978 | GASKET |
