8360SRC22.00

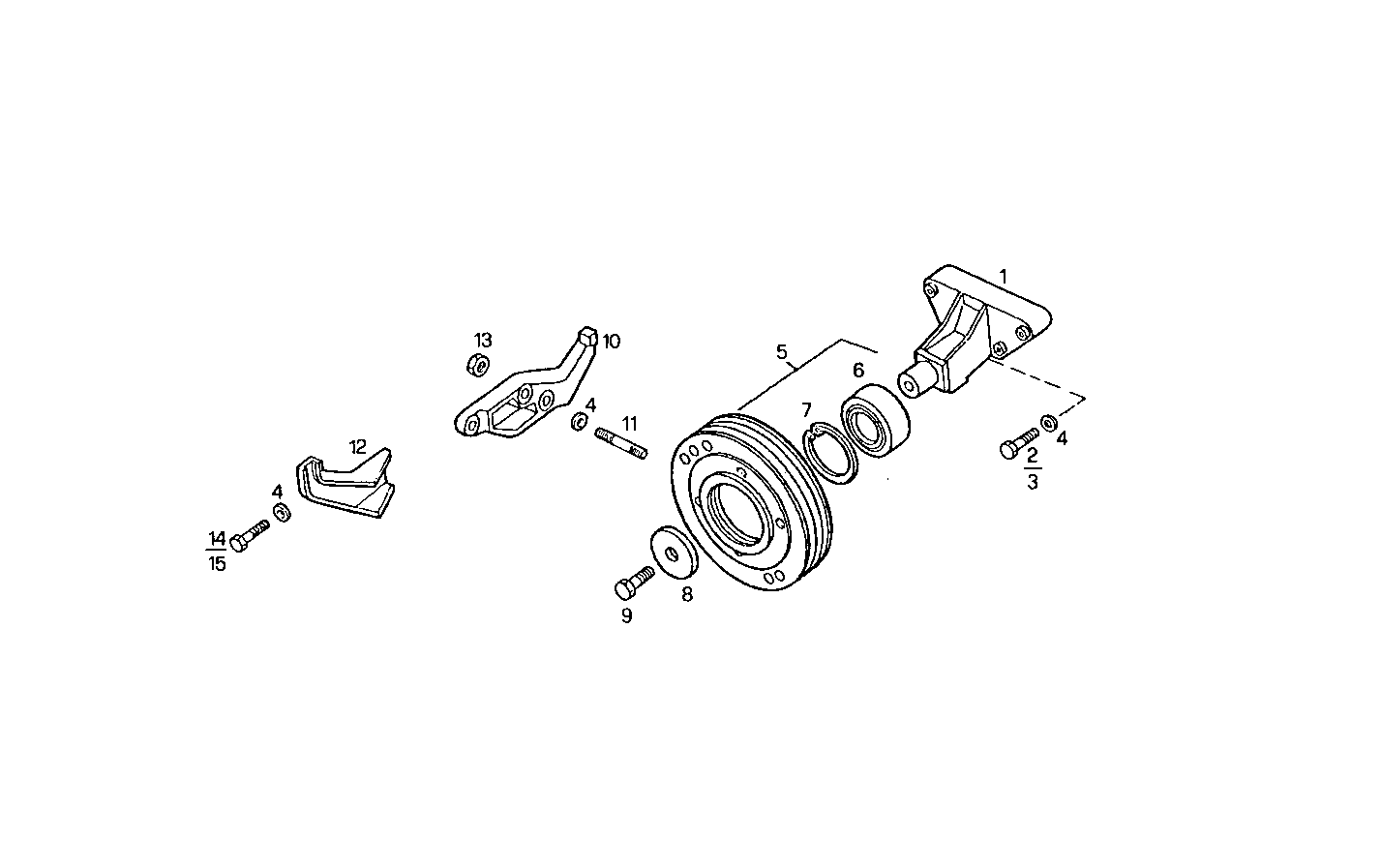

3230.015 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 98470565 | SUPPORT |
| 2 | 11343721 | HEXAGON BOLT M10X65 MM |
| 3 | 15971821 | SCREW M10X1,25X100 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 98470573 | PULLEY ASSY |
| 6 | 98427607 | ENGINE BEARINGS |
| 7 | 16874773 | CIRCLIP |
| 8 | 98427590 | WASHER |
| 9 | 16678434 | HEXAGON BOLT M12X60 MM |
| 10 | 98451950 | RETAINER |
| 11 | 13449224 | STUD M10 |
| 12 | 98451945 | RETAINER |
| 13 | 17038221 | HEXAGON NUT M10 |
| 14 | 15888824 | HEXAGON BOLT M10X1,25X70 MM |
| 15 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
| 16 | 98429205 | SET OF V-BELTS KIT |
