8360SRC22.10

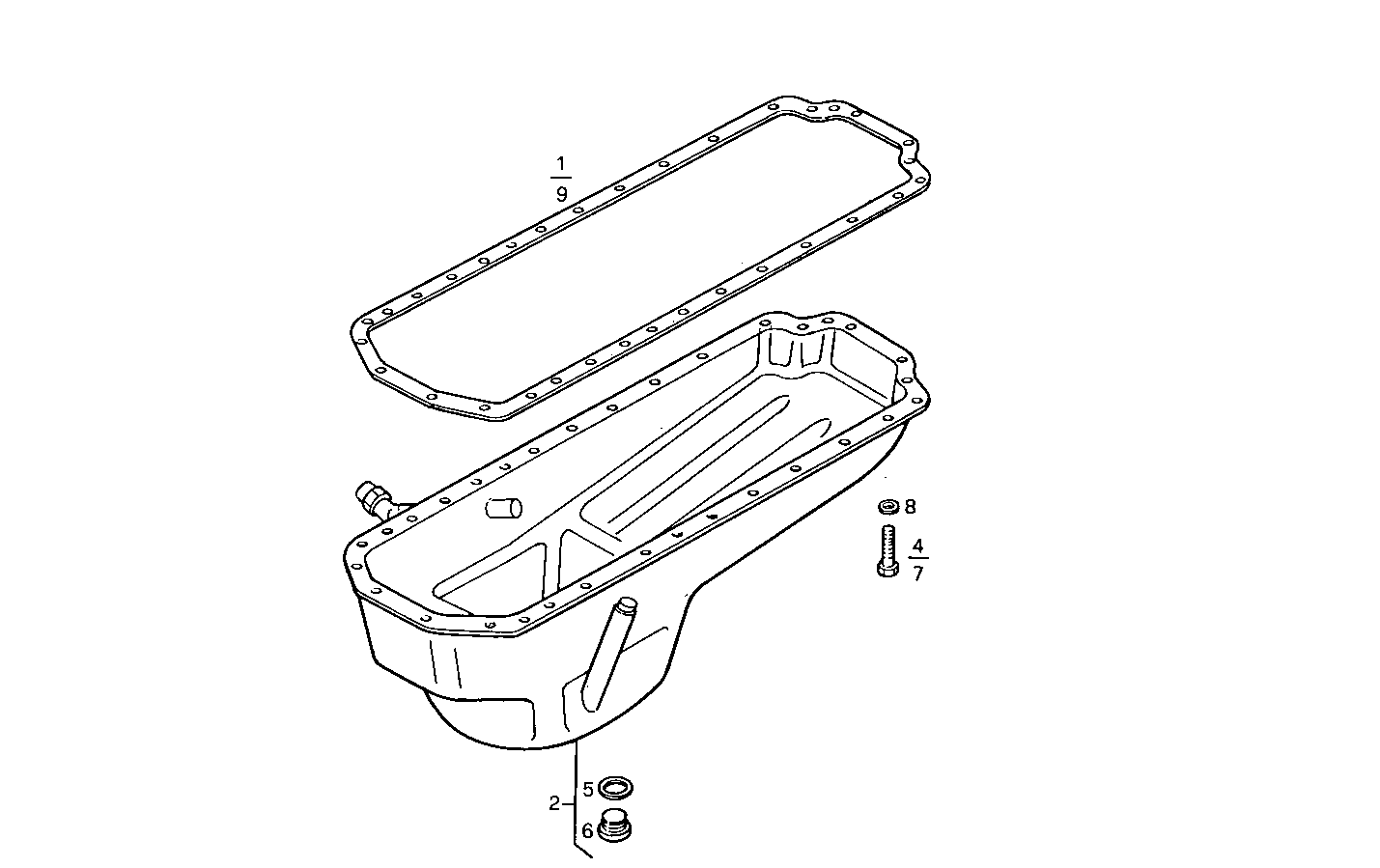

0420.112 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 98433204 | OIL SUMP GASKET |
| 2 | 4851821 | OIL SUMP ASSY |
| 4 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 5 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 6 | 4847102 | THREADED PLUG |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 17090274 | WASHER Ø10X20 MM |
| 9 | 98482927 | OIL SUMP GASKET |
