8360SRC22.10

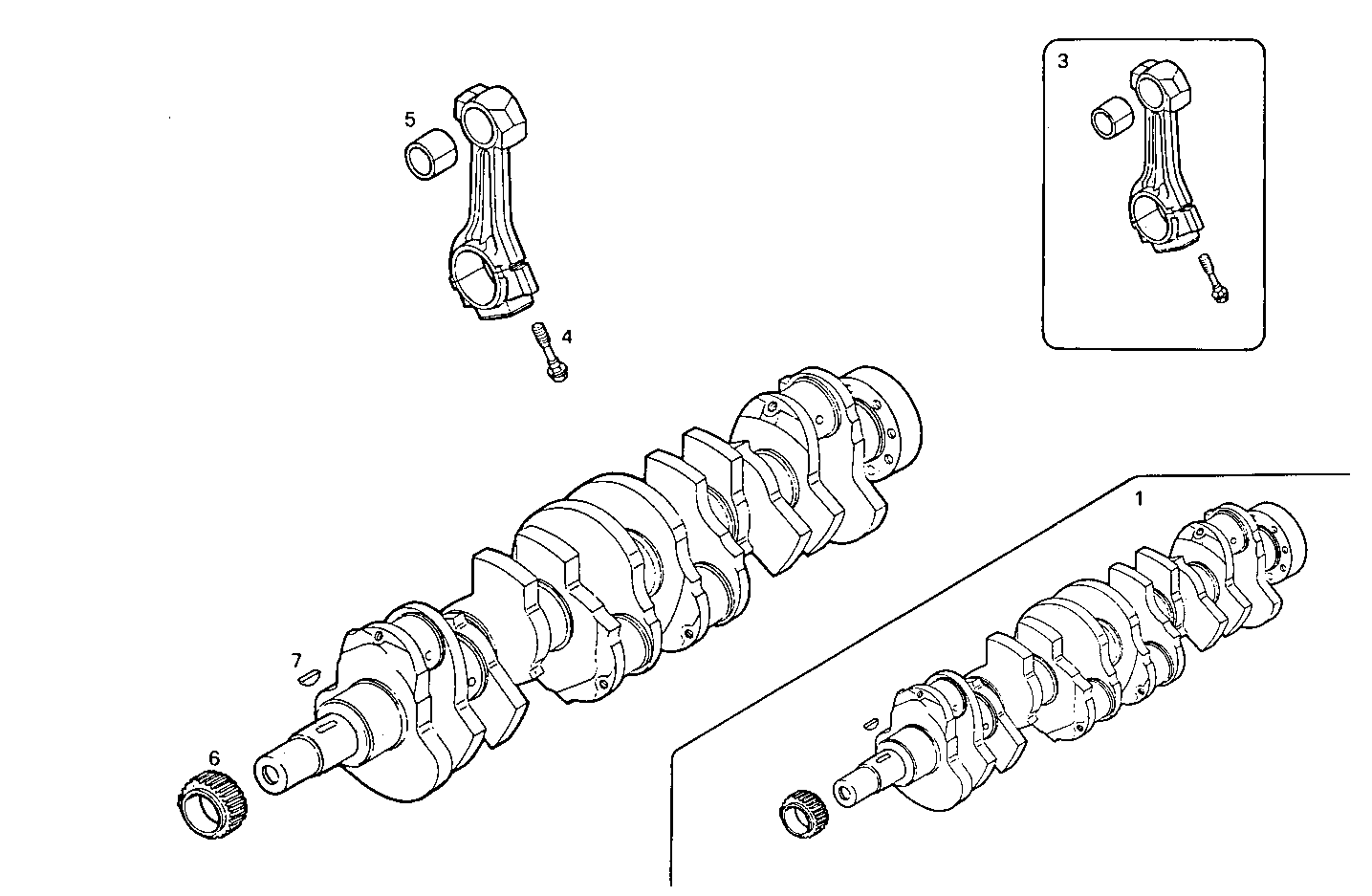

0800.063 CRANK SHAFT - CONNECTING RODS
| Item | Part number | Description |
|---|---|---|
| 1 | 4851914 | CRANK SHAFT ASSY |
| 3 | 4852757 | CONN.ROD ASSY. |
| 4 | 4722162 | BIG-END BOLT |
| 5 | 4803660 | BIG-END BUSH |
| 6 | 4861824 | OIL PUMP DRIV.GEA |
| 7 | 8817913 | KEY |
