8360SRC22.10

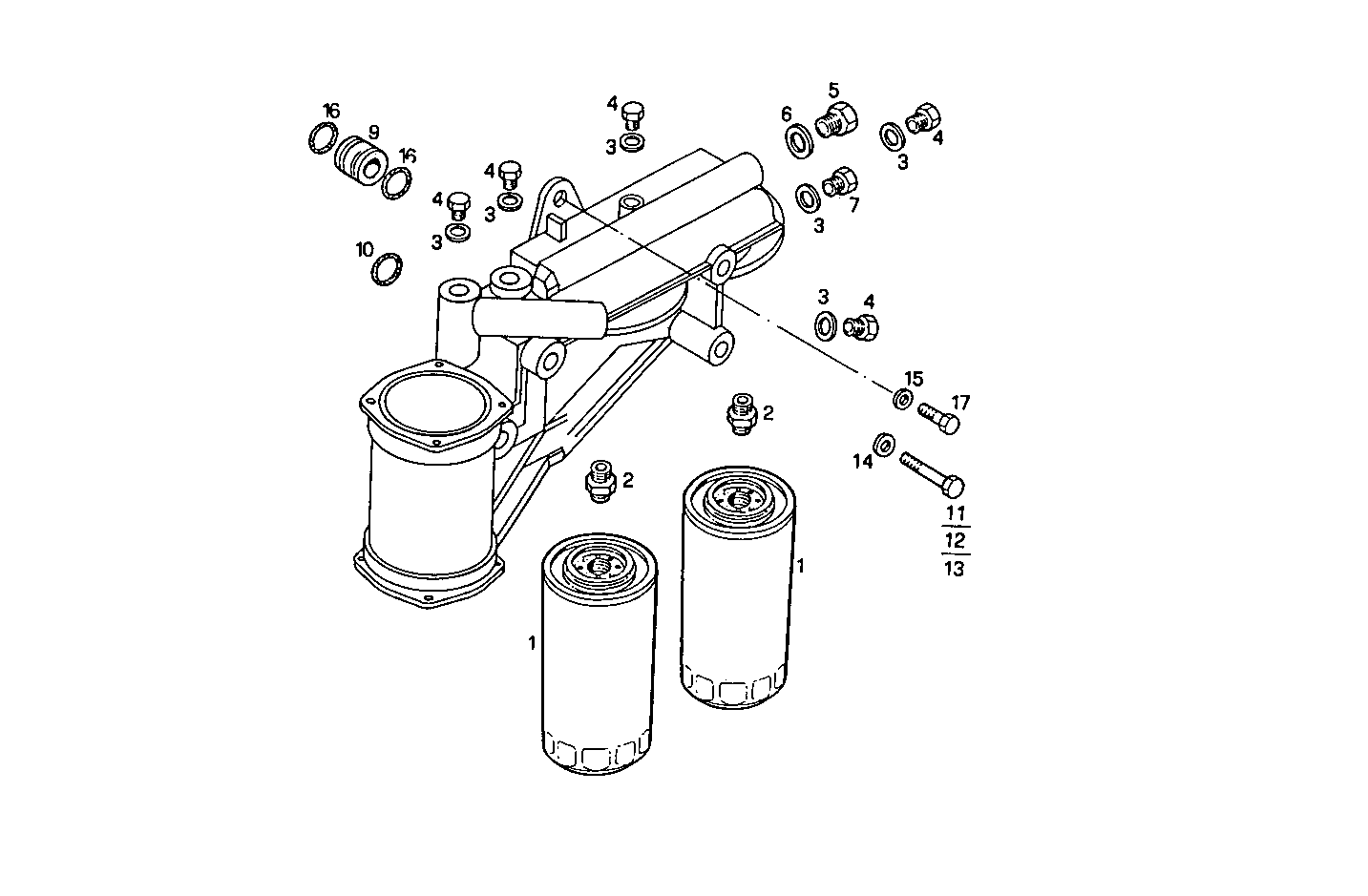

3020.057 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 1907584 | OIL FILTER CARTRIDGE |
| 2 | 4741301 | THREADED UNION ASSY |
| 3 | 16570760 | GASKET |
| 4 | 16994011 | LOCK PLUG M24X1,5 |
| 5 | 1110423 | SCREW PLUG M14X1,5 |
| 6 | 16508150 | GASKET |
| 7 | 99433191 | LOCK PLUG M24X1,5 |
| 9 | 4853307 | CENTERING BUSH |
| 10 | 14458081 | O-RING SP=2,62 MM |
| 11 | 15541124 | SCREW |
| 12 | 15541724 | SCREW |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 17278981 | O-RING Ø25,12 MM SP=1,78 MM |
| 17 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
