8360SRC22.10

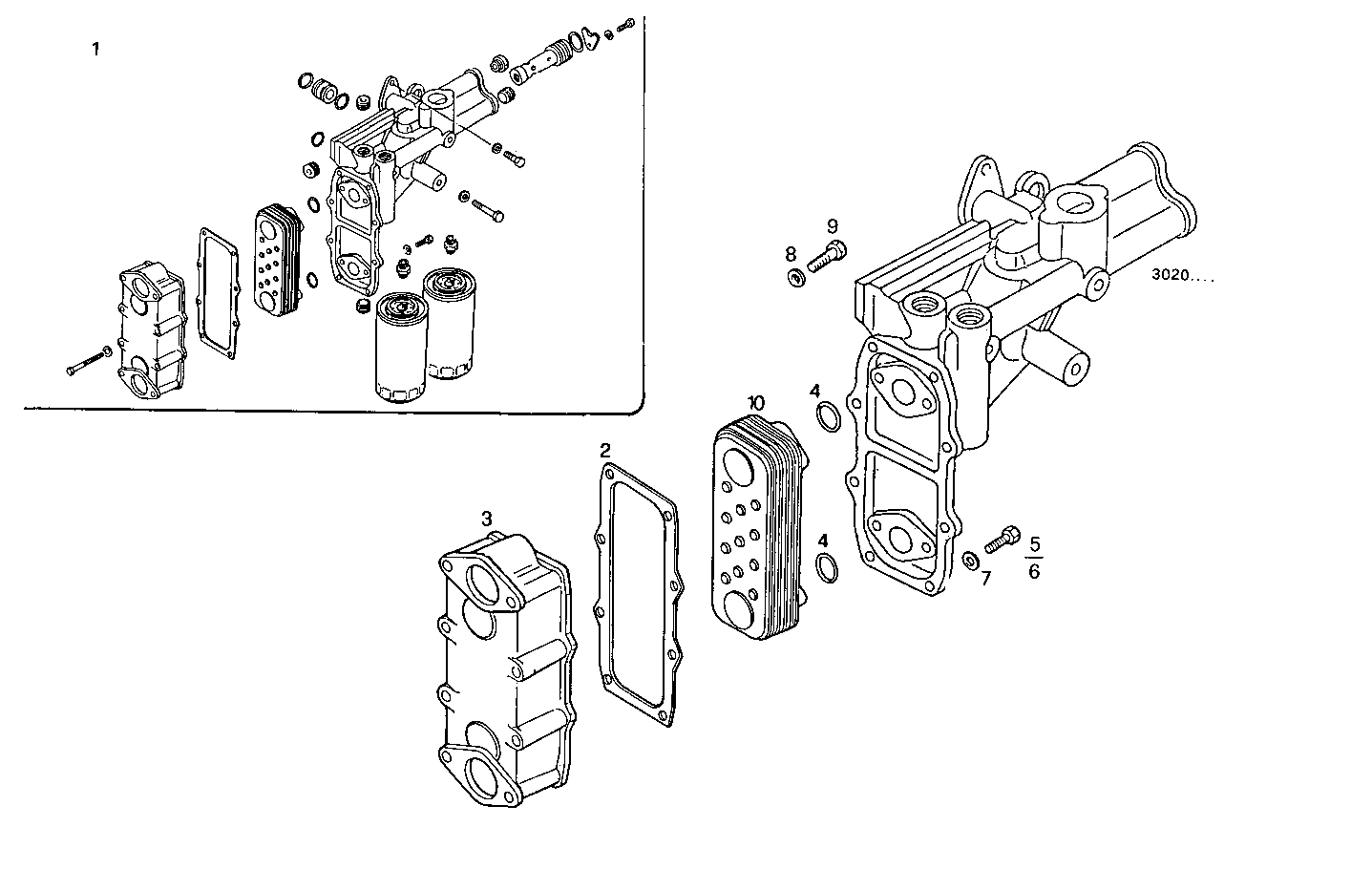

3100.061 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 99431518 | HEAT EXCHANGER ASSY MOTA |
| 2 | 98412166 | FLAT ENGINE GASKET |
| 3 | 4846399 | HEAT EXCHANG.COVER |
| 4 | 98465102 | O-RING Ø44,12 MM SP=2,62 MM |
| 5 | 16606124 | HEXAGON BOLT M8X50 MM |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 4716734 | WASHER |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16606824 | HEXAGON BOLT M8X100 MM |
| 10 | 98435137 | OIL COOLER |
