8360SRC22.10

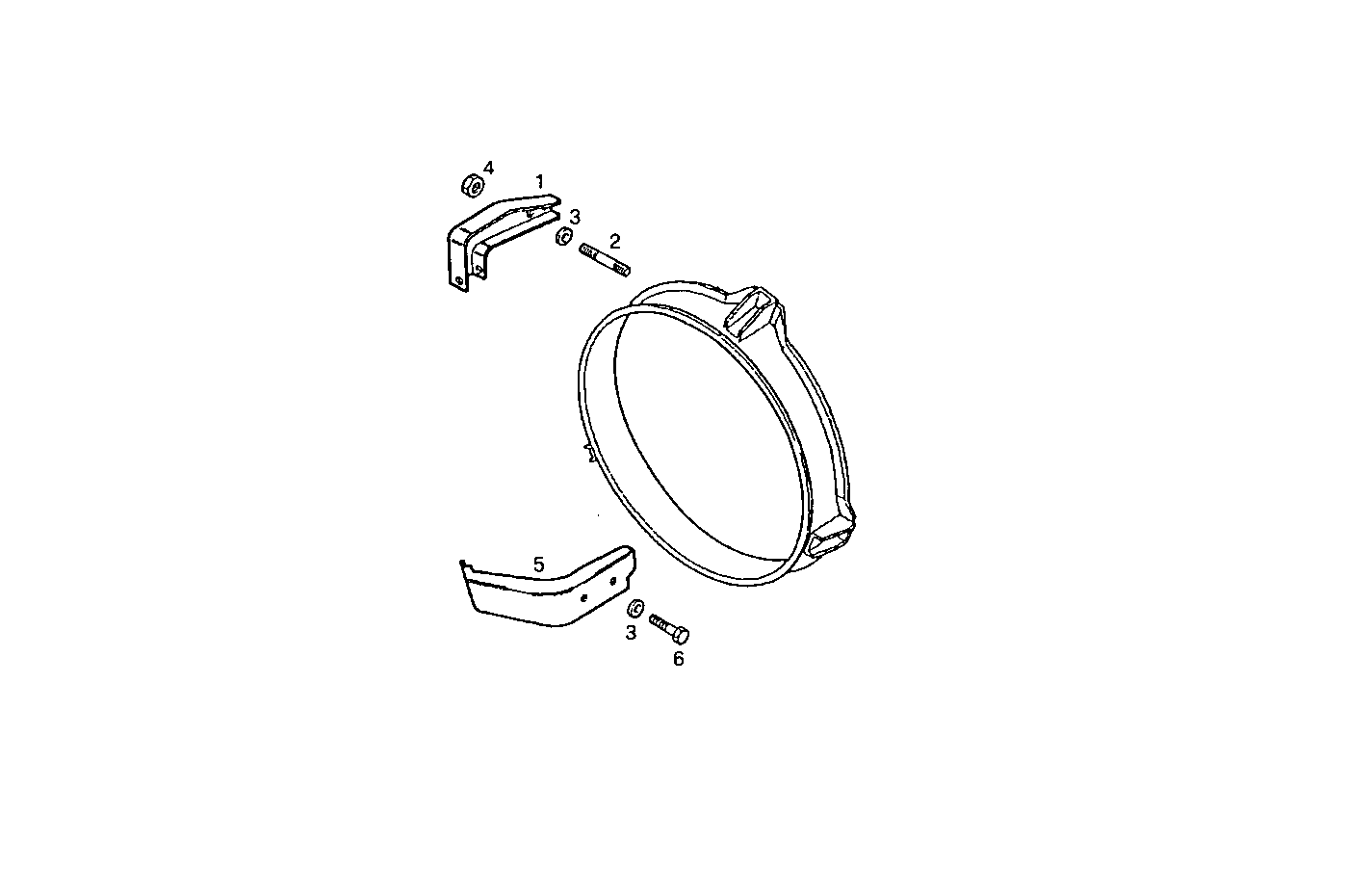

3230.016 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 98436449 | RETAINER |
| 2 | 13449224 | STUD M10 |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 98436423 | RETAINER |
| 6 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
