8360SRC22.10

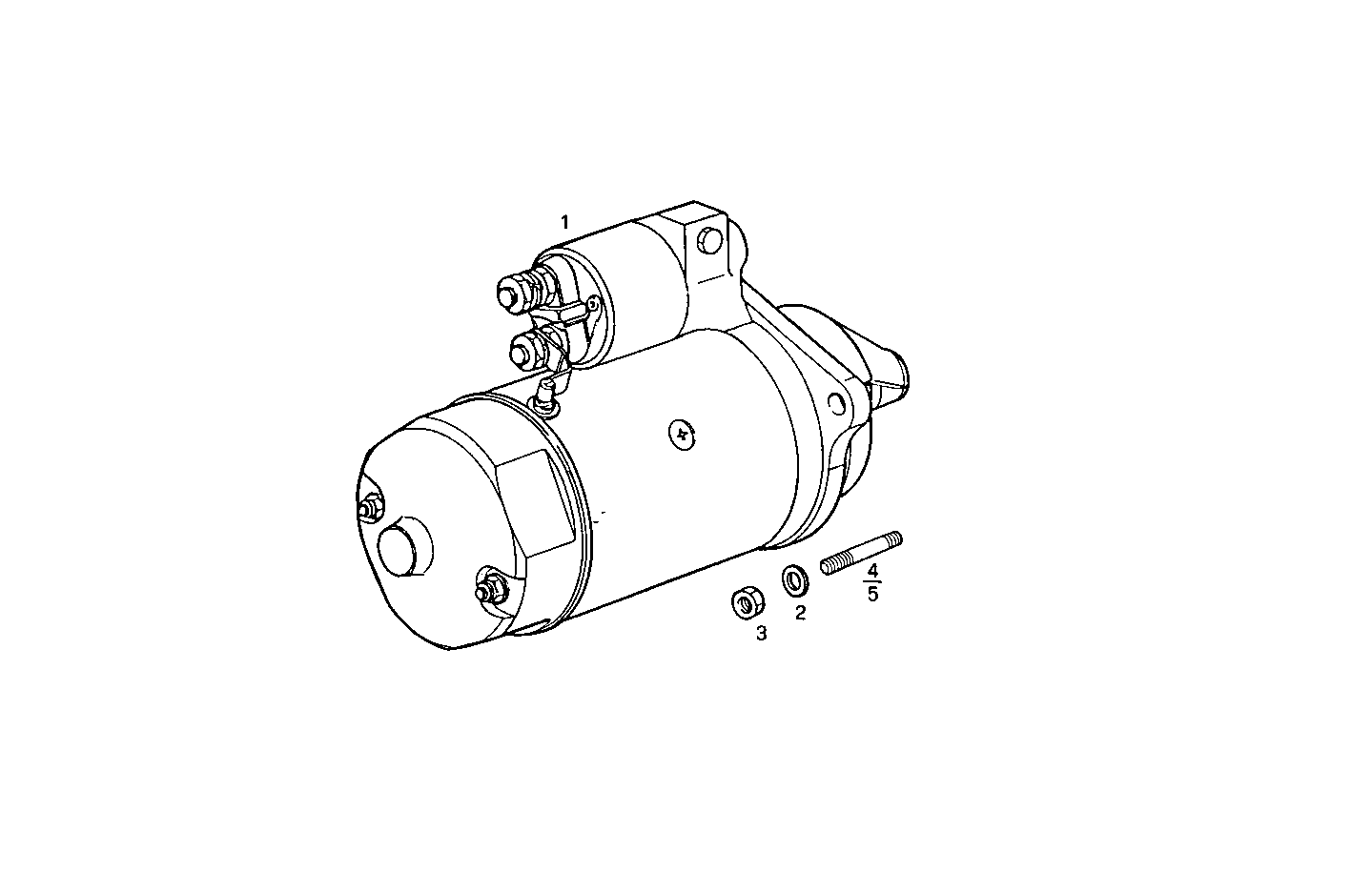

3600.062 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4854185 | STARTER MOTOR ASSY 24V BOSCH |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 12164711 | HEXAGON NUT M10X1,25 |
| 4 | 13546624 | STUD M10X20X35 |
| 5 | 13449824 | STUD M10X1,25X15 MM |
