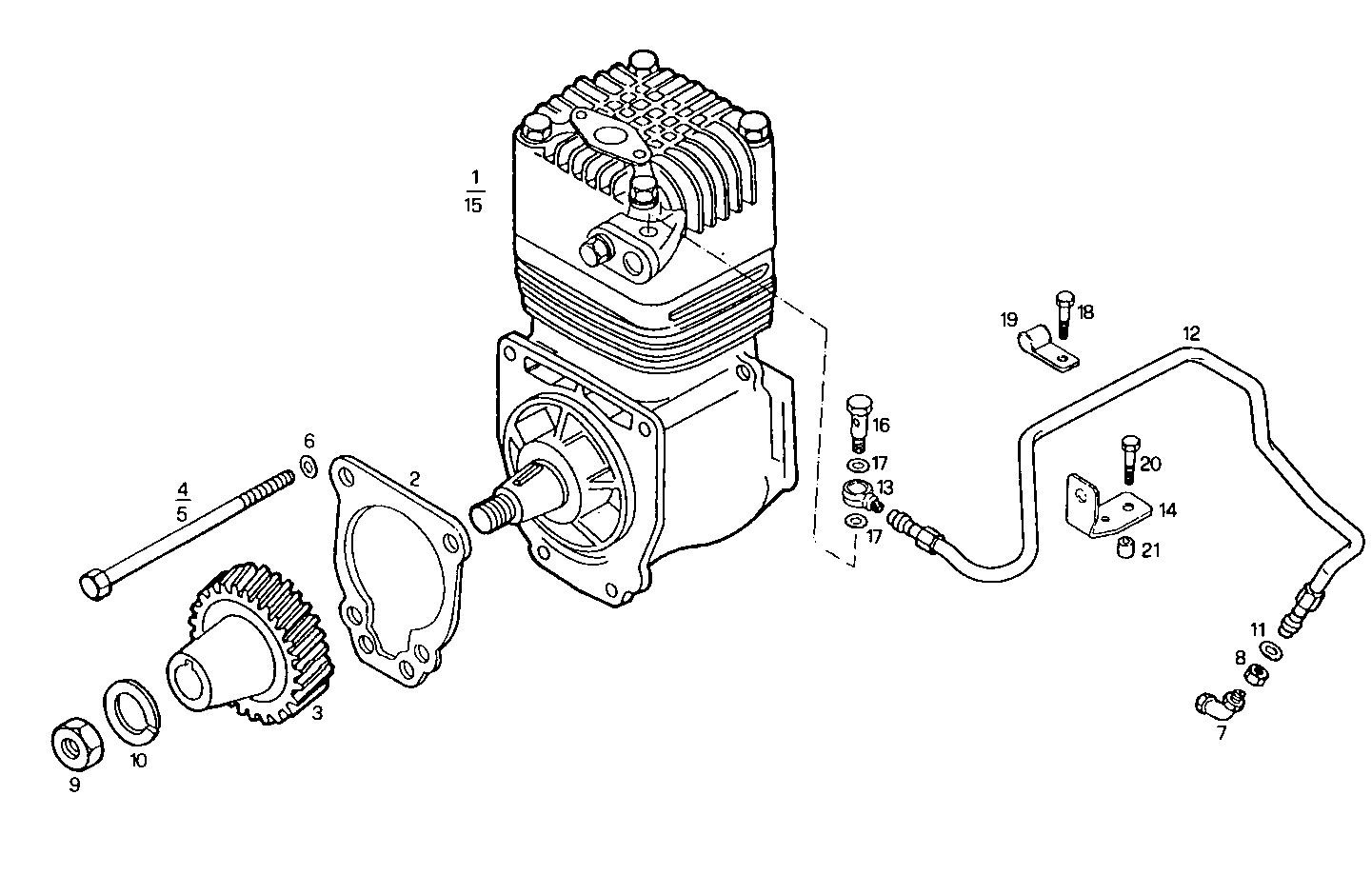

| Item |
Part number |
Description |
|
1 |
98465002 |
AIR COMPRESSOR ASSY |
|
2 |
4864032 |
FLAT ENGINE GASKET |
|
3 |
98445187 |
COMP. DRIVE GEAR |
|
4 |
15970924 |
HEXAGON BOLT M10X1,25X35 MM |
|
5 |
15972024 |
HEXAGON BOLT M10X1,25X110 |
|
6 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
7 |
16503314 |
ELBOW COUPLING |
|
8 |
16508611 |
NUT M12X1,5 |
|
9 |
16980731 |
HEXAGON NUT |
|
10 |
17798774 |
SPRING WASHER Ø18 MM |
|
11 |
17710374 |
WASHER Ø12 MM |
|
12 |
98478067 |
PIPE |
|
13 |
98454675 |
SWIVEL COUPLING [up to 810887] |
|
14 |
98426506 |
FASTENING BRACKET [up to 810887] |
|
15 |
4863994 |
AIR COMPRESSOR ASSY BENDIX [up to 417852] |
|
16 |
98454664 |
BANJO BOLT [up to 810887] |
|
17 |
16508060 |
SEAL GASKET Ø12X15,5 MM |
|
18 |
16587024 |
HEXAGON BOLT M10X20 MM |
|
19 |
38800263 |
FASTENING BRACKET |
|
20 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
21 |
8791565 |
SPACER |
