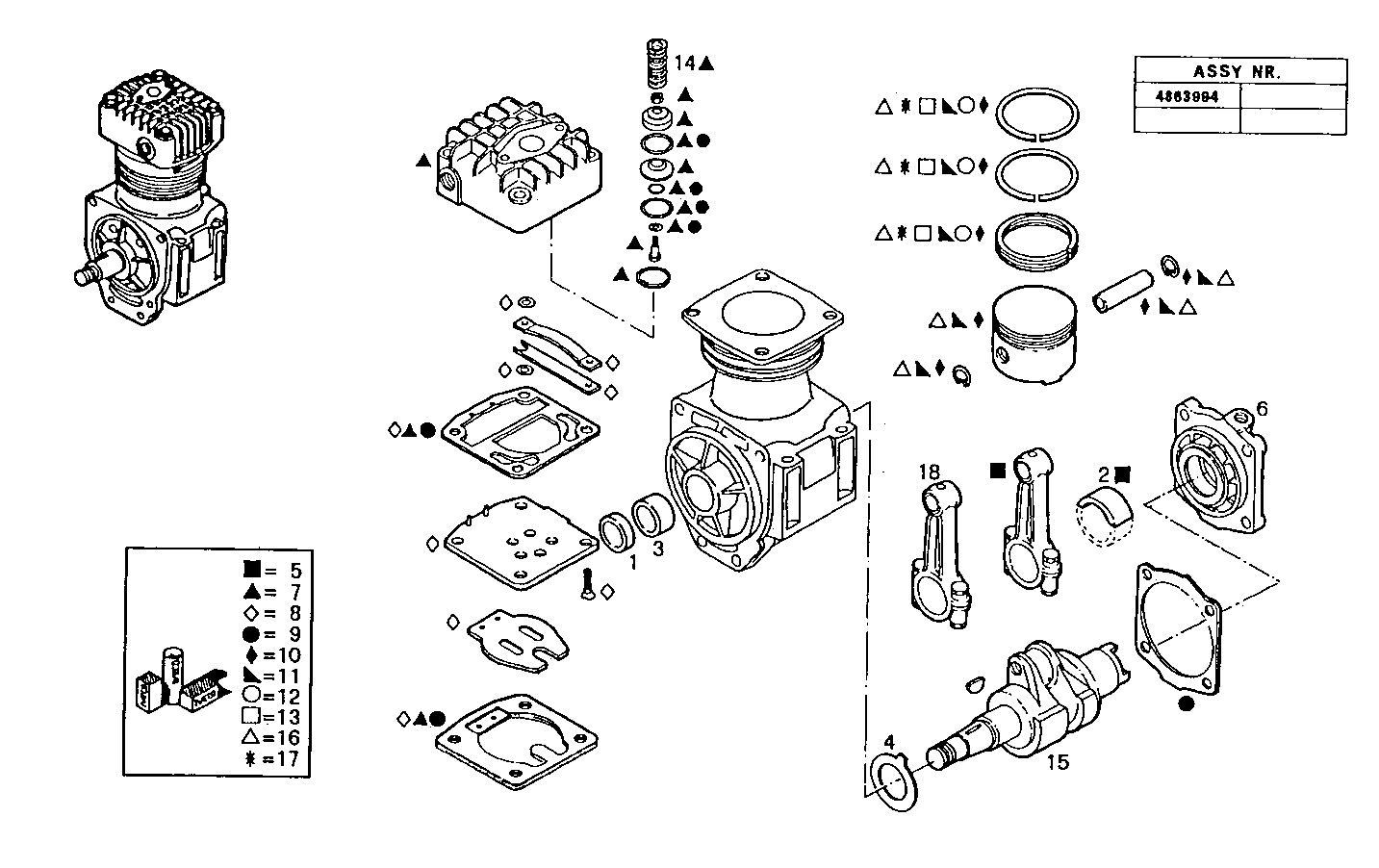

3830.009 AIR COMPRESSOR (COMPONENTS)

Iveco/FPT AIR COMPRESSOR (COMPONENTS)

Item Part number Description
1 7980955 WASHER
2 9918517 HALF-BEARING
3 79022436 BUSH
4 79022437 RING
5 79069742 KIT-AIR COMPRESSOR
6 93159347 COVER
7 93161299 KIT-AIR COMPRESSOR
8 93161300 KIT-AIR COMPRESSOR
9 93161301 KIT-AIR COMPRESSOR
10 93161302 KIT-AIR COMPRESSOR Ø80 MM
11 93161303 KIT-AIR COMPRESSOR Ø80,2MM
12 93161305 KIT-AIR COMPRESSOR Ø80 MM
13 93161306 KIT-AIR COMPRESSOR Ø80,2MM
14 93163016 SPRING
15 93163018 COMPR.CRANKSHAFT
16 93161304 KIT-AIR COMPRESSOR Ø80,5MM
17 93161307 KIT-AIR COMPRESSOR Ø80,5MM
18 93190969 COMPRESS.CONN.ROD ASSY
