8360SRC22.10

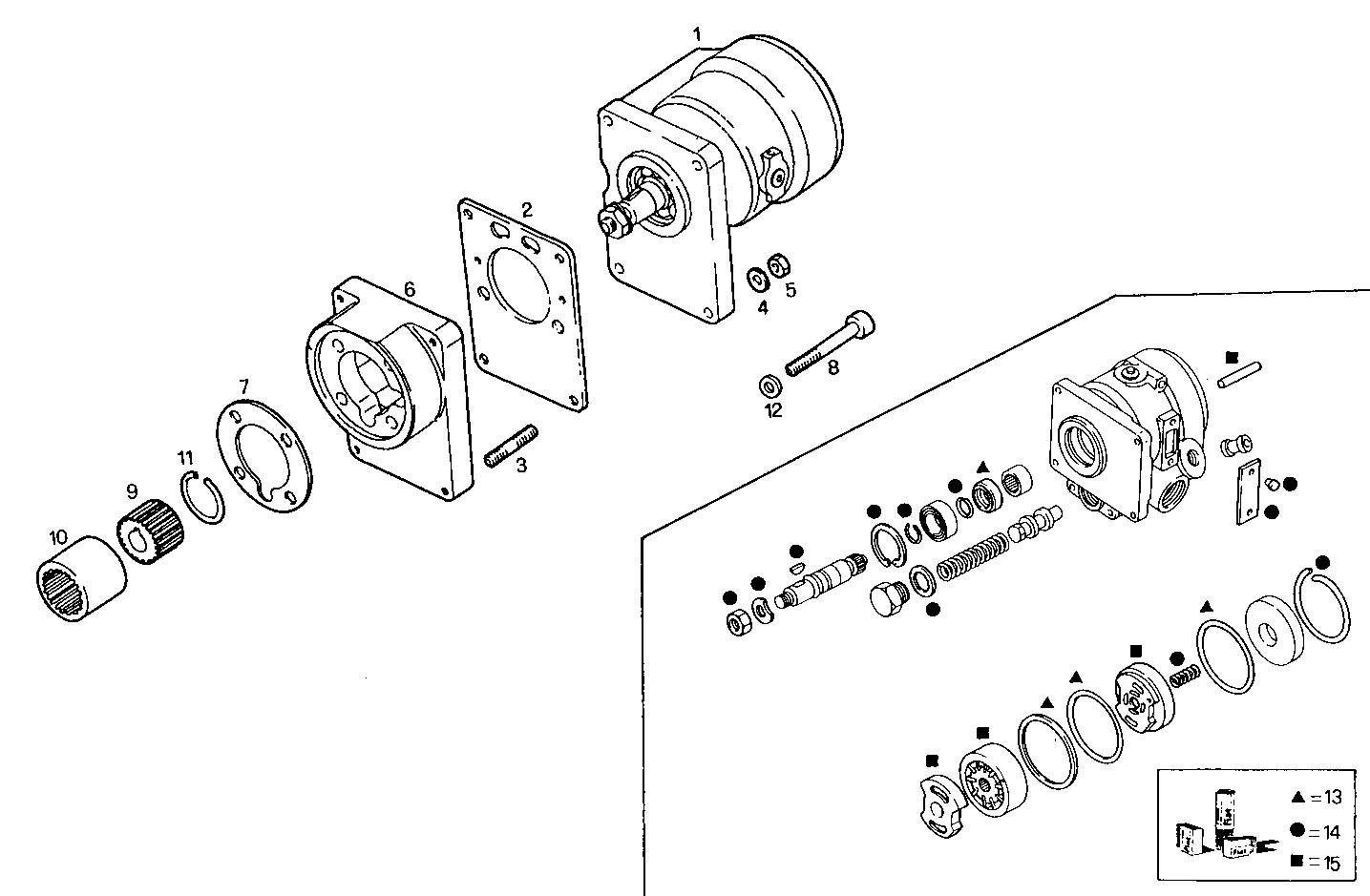

4220.003 POWER STEERING PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4853322 | OIL PUMP-STEERING ASSY |
| 2 | 4850986 | FLAT ENGINE GASKET |
| 3 | 16727724 | STUD M6X20 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 4853927 | SUPPORT |
| 7 | 4853928 | FLAT ENGINE GASKET |
| 8 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 9 | 4853929 | HUB |
| 10 | 4853930 | CONNECTOR SLEEVE |
| 11 | 17085376 | CIRCLIP Ø30 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 8124619 | KIT-HYDRAULIC PUMP |
| 14 | 93161234 | KIT-HYDRAULIC PUMP |
| 15 | 93161235 | KIT-HYDROST.PUMP |
