8360SRC22.10

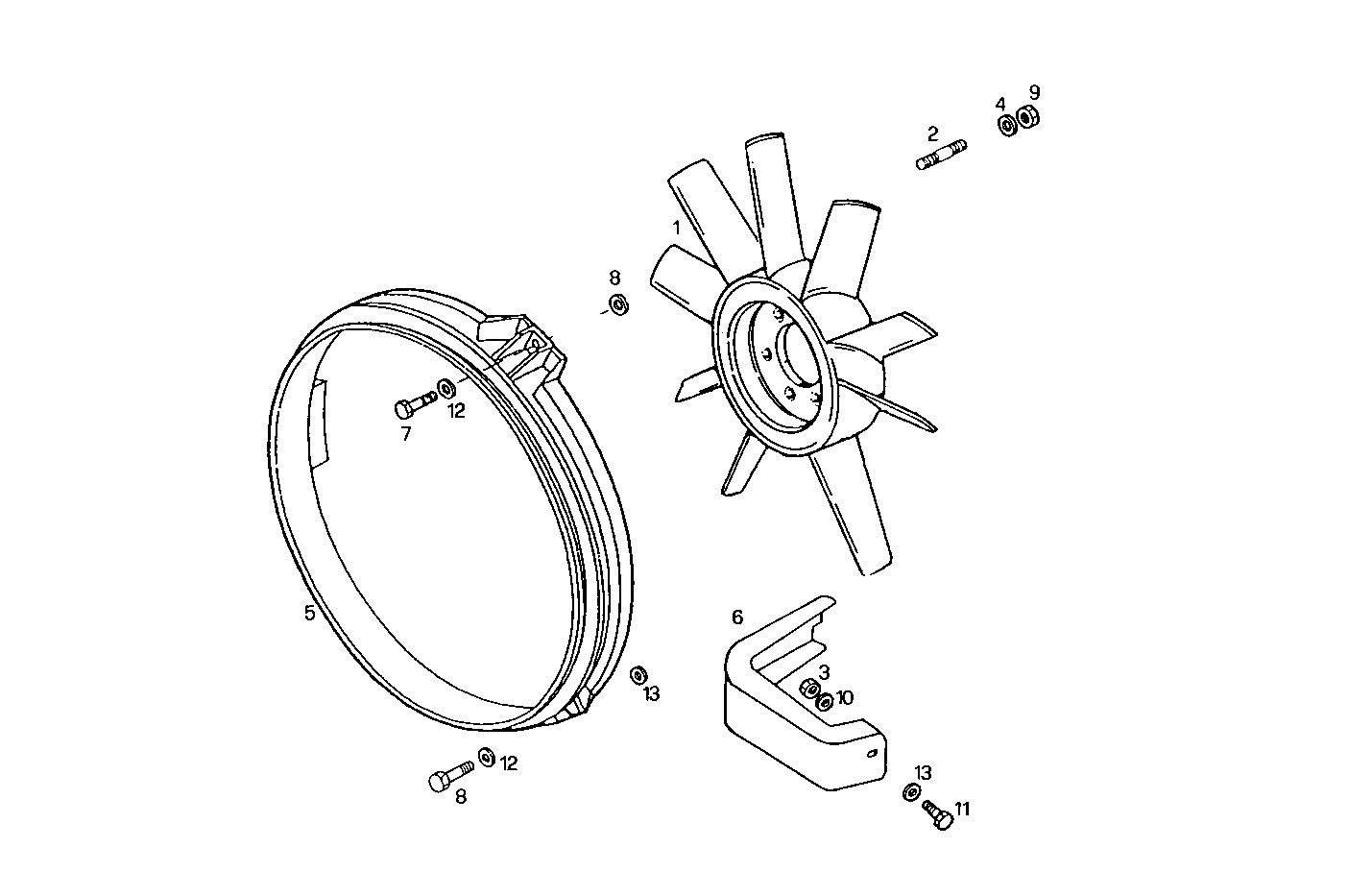

A08100006 VISCOSTATIC PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 98468265 | BLOWER Ø597 MM 9 BLADES |
| 2 | 16729224 | STUD M8X16 MM |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 4 | 17089674 | SPRING WASHER Ø8X16 MM SP=2,2 MM |
| 5 | 98436436 | AIR HOOD |
| 6 | 98436420 | RETAINER |
| 7 | 98451083 | SOCKET-HEAD SCREW M10X1,25X75 MM |
| 8 | 98451084 | SOCKET-HEAD SCREW M10X1,25X100 MM |
| 9 | 17157221 | NUT M10X1,25 |
| 10 | 17793914 | WASHER Ø10X25X1,5 MM |
| 11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17095114 | WASHER Ø10X21 MM |
