Catalogue Menu

8360SRC22.20

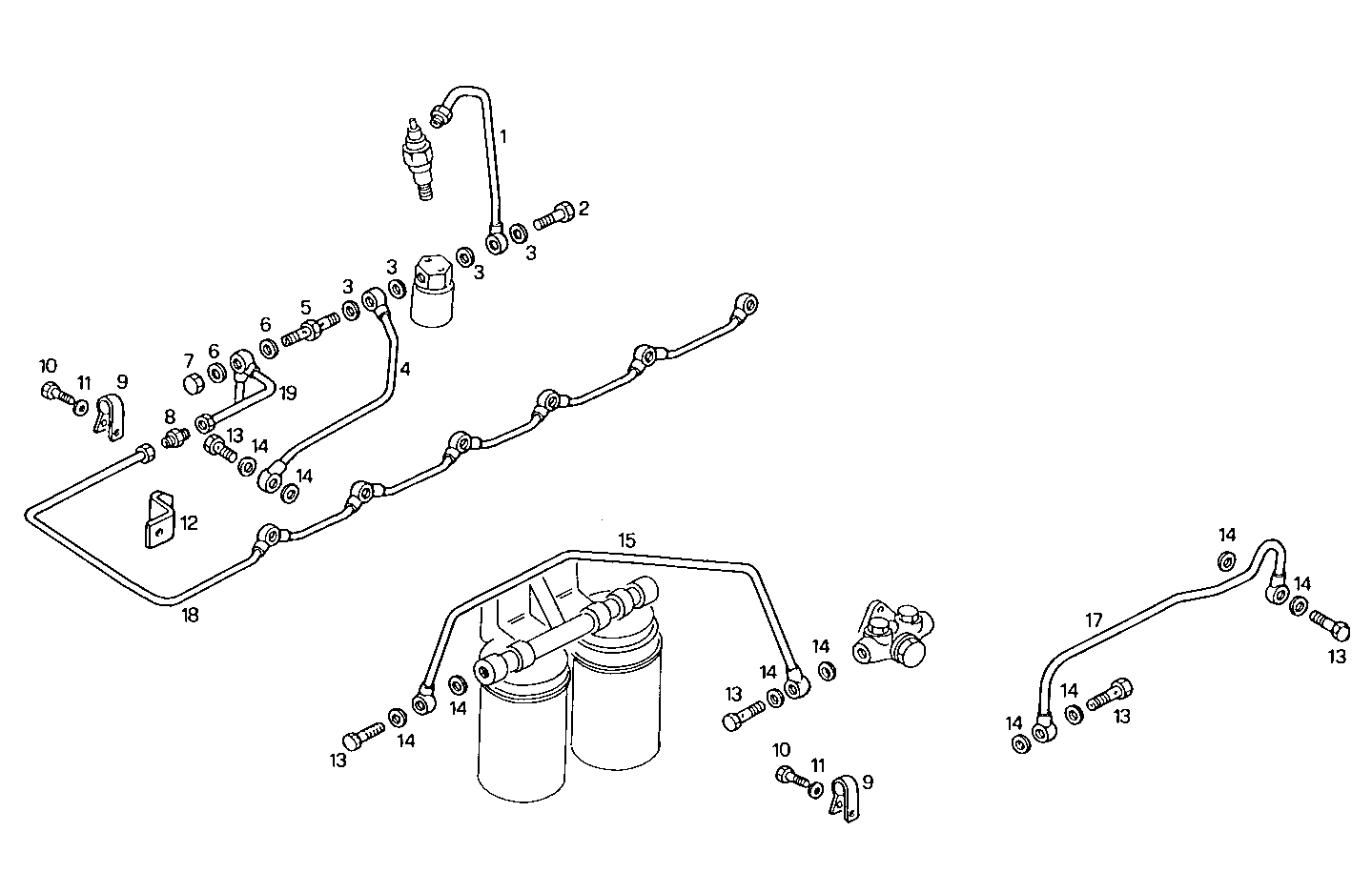

2030.119 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 500301236 FUEL LINE L=680 MM
2 4864079 SCREW CONNECTOR M10X1
3 4858606 GASKET Ø10X14X1 MM
4 98485985 FUEL LINE
5 98469450 BYPASS VALVE
6 98474306 WASHER Ø12X20 MM SP=1,9 MM
7 98469675 THREADED PLUG M12X1
8 16501514 THREADED UNION
9 17316490 CLIP
10 16603624 HEXAGON BOLT M6X16 MM (8.8)
11 17094714 WASHER Ø6,4X12 MM
12 4860244 RETAINER
13 4864083 SCREW CONNECTOR M14X1,5X30 MM
14 98474308 SEAL GASKET Ø14X22 MM
15 99476410 FUEL LINE
17 99476403 FUEL LINE Ø15 MM
18 98444238 FUEL LINE
19 98485989 FUEL LINE
