8360SRC22.20

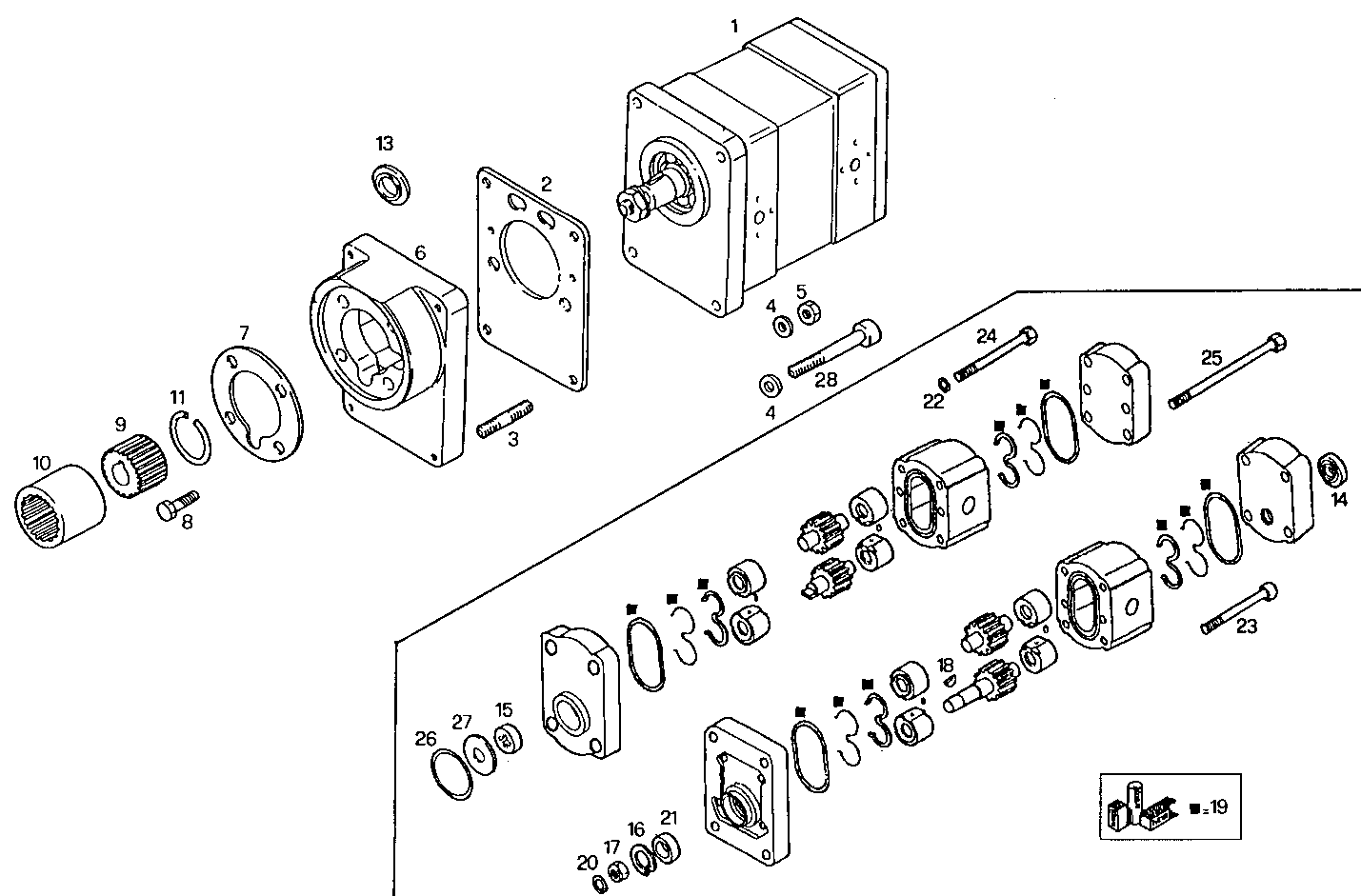

4220.004 POWER STEERING PUMP

Iveco/FPT POWER STEERING PUMP

Item Part number Description
1 98450345 OIL PUMP-STEERING ASSY
2 98494472 FLAT ENGINE GASKET
3 16729530 STUD M8X30 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 17037931 HEXAGON NUT M8X1,25
6 98480319 SUPPORT
7 4853928 FLAT ENGINE GASKET
8 16690724 CYLIND-HEAD SCREW M8X30 MM
9 4853929 HUB
10 4853930 CONNECTOR SLEEVE
11 17085376 CIRCLIP Ø30 MM
13 4609538 CENTERING RING
14 1300154 SHAFT SEAL
15 7984002 BUSH
16 7984179 CIRCLIP
17 7984181 NUT M12X1,5
18 10205720 KEY 3X5 MM
19 42481597 KIT-HYDROST.PUMP
20 79058503 WASHER
21 93160143 RADIAL SEAL Ø17X30 MM
22 93160897 SPRING WASHER M8X25 MM
23 93192821 HEXAGON BOLT
24 93192822 HEXAGON BOLT
25 93192823 HEXAGON BOLT
26 93192824 O-RING
27 93192825 WASHER
28 16690824 CYLIND-HEAD SCREW M8X35 MM
