8360SRC46.10A007

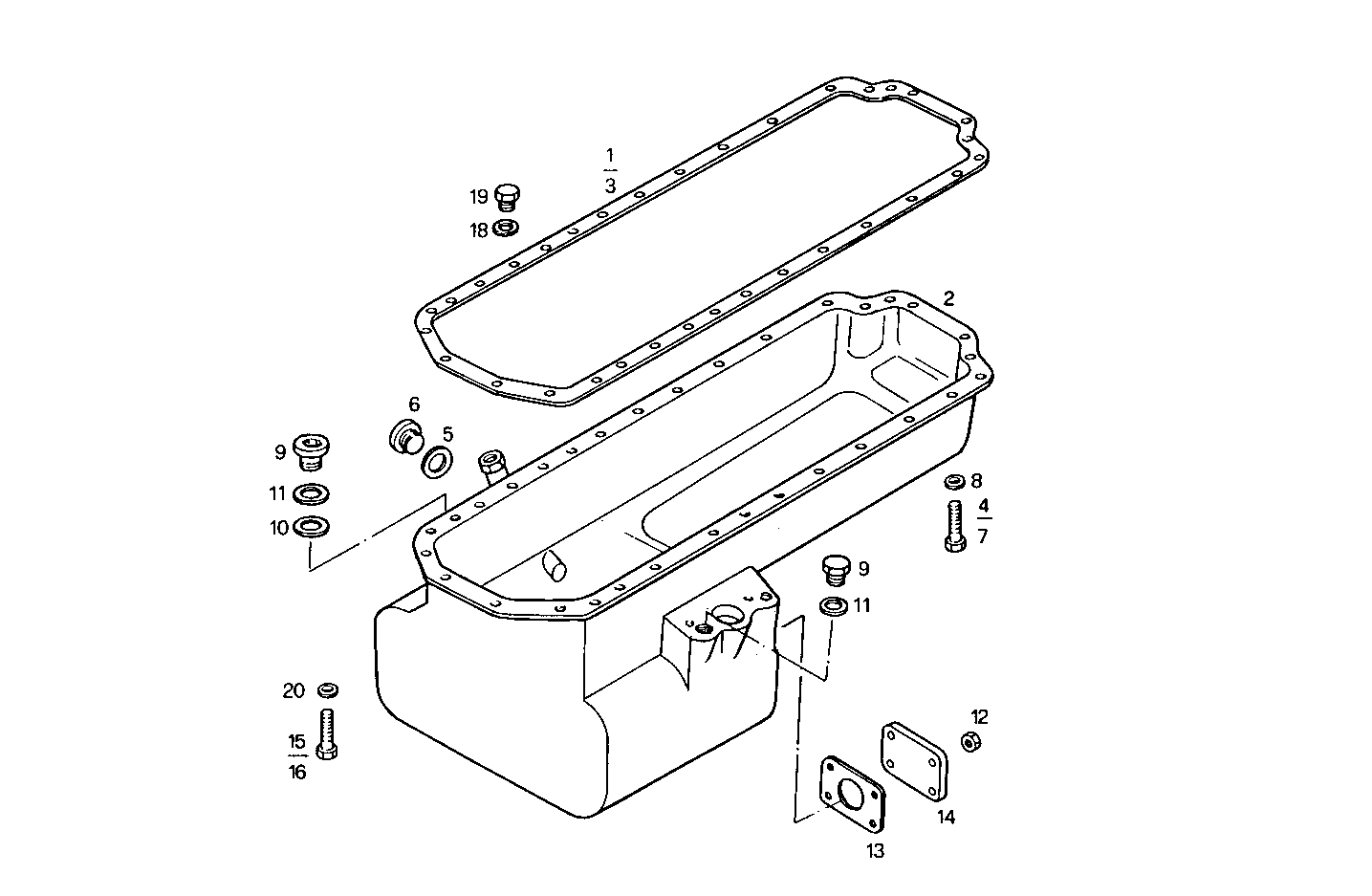

0420.113 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 98482927 OIL SUMP GASKET
2 98499590 OIL SUMP
3 98433204 OIL SUMP GASKET
4 15970921 HEXAGON BOLT M10X1,25X35 MM
5 98465103 O-RING Ø21,8 MM SP=2,6 MM
6 4847102 THREADED PLUG
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 10275040 LOCK PLUG M22X1,5
10 16508460 WASHER 22x27x1,5
11 10261860 SEAL GASKET Ø22X30 MM SP=1,5 MM
12 17037821 HEXAGON NUT M6X1
13 99474411 FLAT ENGINE GASKET Ø22X30 MM
14 99474410 COVER REAR
15 11306924 HEXAGON BOLT M10X1,25X30 MM
16 11307024 SCREW M10X1,25X40 MM
17 15588824 SCREW
18 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
19 11903211 LOCK PLUG M12X1,25
20 10263160 SEAL GASKET Ø18X24 MM SP=1 MM
