8360SRC46.10A007

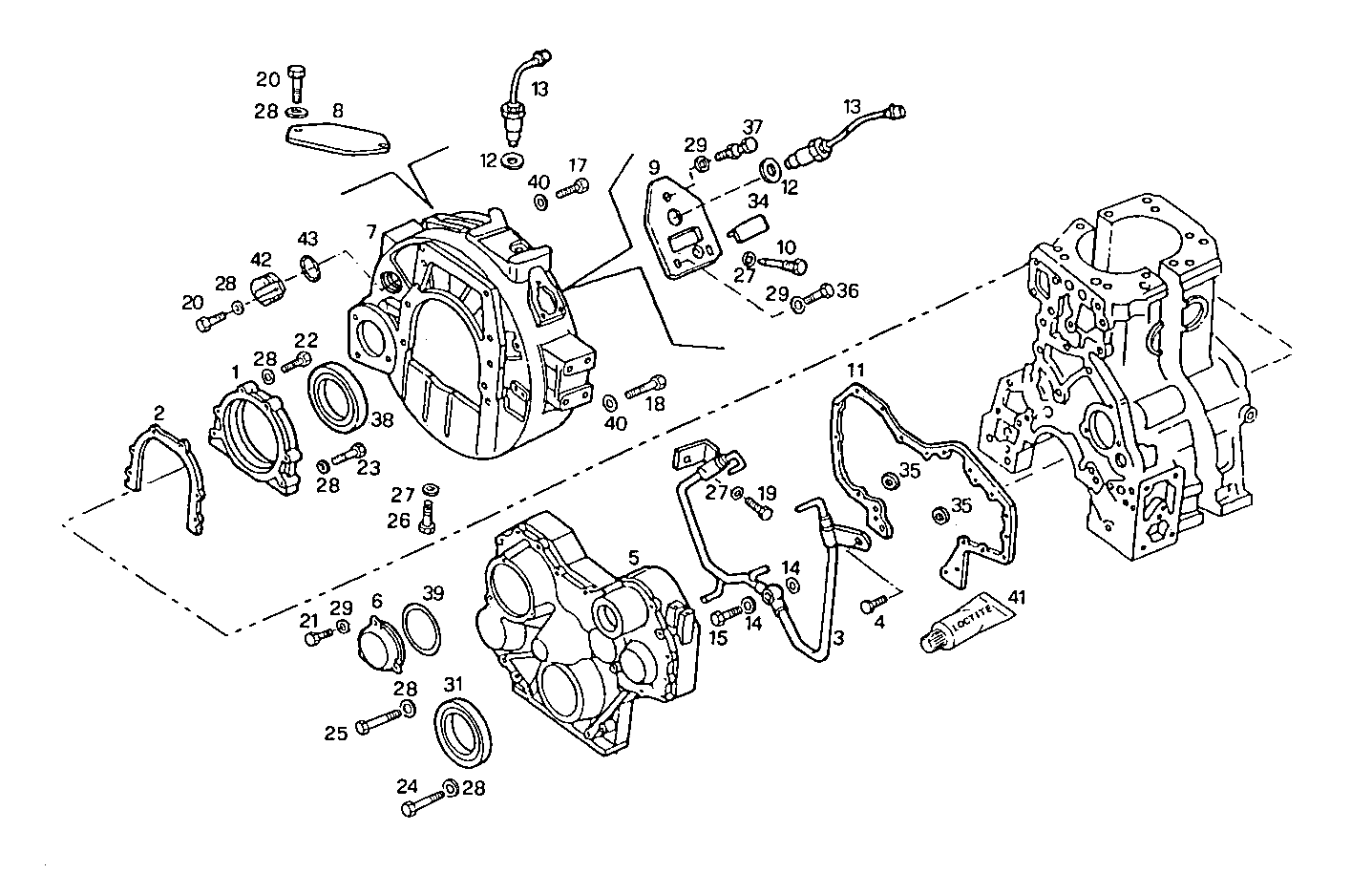

0430.131 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4841297 COVER
2 4851387 FLAT ENGINE GASKET
3 4851832 OIL LINE
4 4851834 HEXAGON BOLT
5 98493058 FRONT C.CASE COVER ASSY
6 4851837 COVER
7 98499623 REAR C.CASE COVER
8 99447226 COVER ASSY REAR
9 4851846 SUPPORT
10 99447217 SCREW M10X1,25X212 MM
11 4852756 FLAT ENGINE GASKET
12 4860432 RING
13 500326504 TRANSMITTER
14 98474305 WASHER Ø10X17 MM SP=2,3
15 99443063 SCREW CONNECTOR ASSY
17 15007533 HEXAGON BOLT M12X1,25X40 MM
18 15540834 SCREW
19 16603424 SCREW M6X10
20 16605424 SCREW M8X16 MM (8.8)
21 16605524 HEXAGON BOLT M8X20 MM
22 16605824 HEXAGON BOLT M8X35 MM
23 16606024 SCREW M8X45 MM
24 16606324 HEXAGON BOLT M8X60 MM
25 16606624 HEXAGON BOLT M8X80 MM
26 16606724 HEXAGON BOLT M8X90 MM
27 17088474 WASHER Ø6X12 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
29 17094914 WASHER 8x16
31 98499173 SHAFT SEAL
34 61317686 PLASTIC PLUG
35 98471366 GASKET
36 16605624 HEXAGON BOLT M8X25 MM (8.8)
37 61315661 HEXAGON BOLT M8X30
38 98499174 SHAFT SEAL
39 17285881 O-RING Ø101,27 MM SP=2,62
40 11198774 WASHER
41 1905684 ADHESIVE/STICKER LOCTITE
42 4718740 PLUG
43 17289281 O-RING Ø34,5 MM SP=3,53 MM
