8360SRC46.10A007

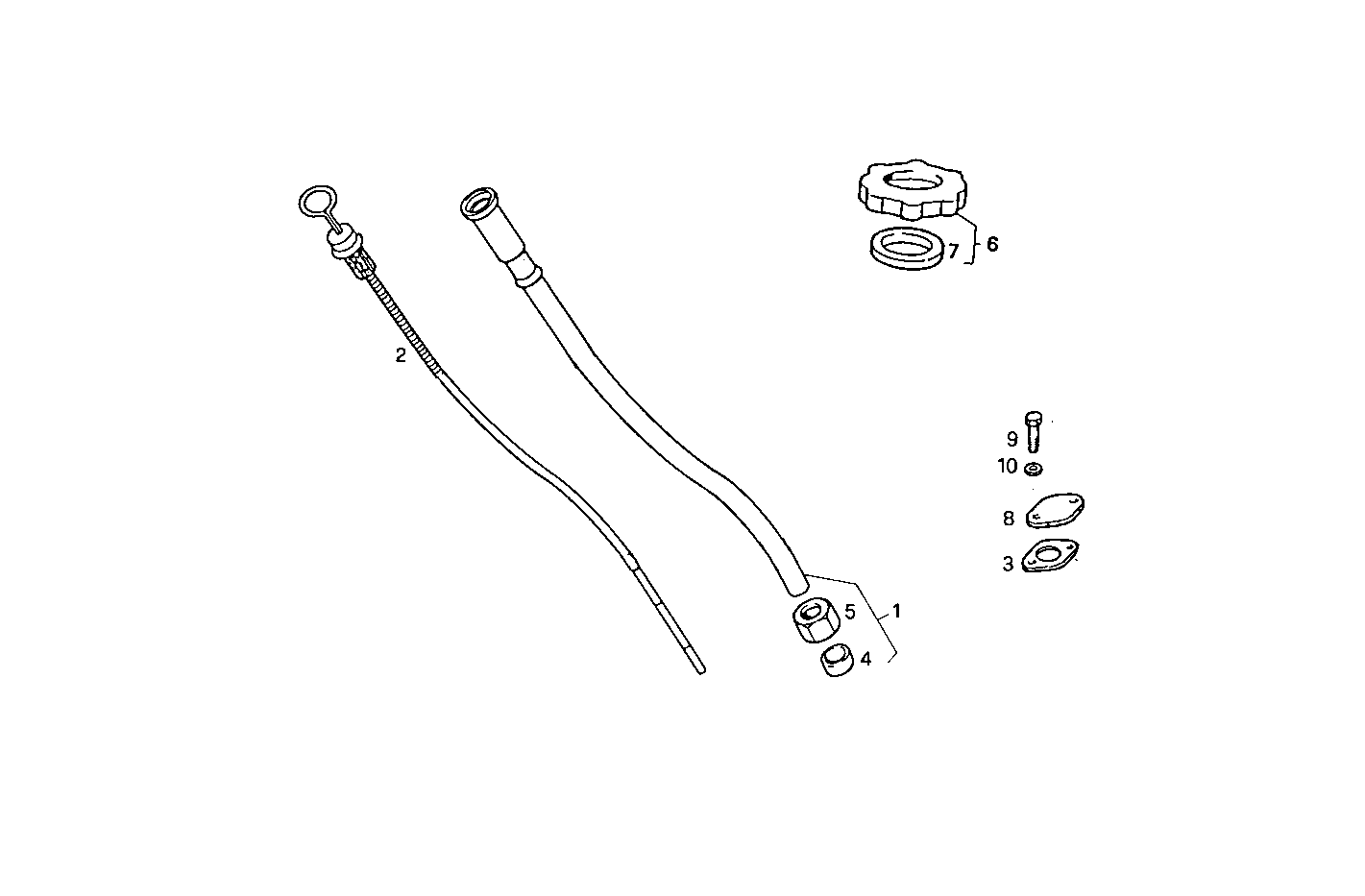

2710.069 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98420500 | OIL LEVEL TUBE ASSY |
| 2 | 8020625 | OIL DIPSTICK ASSY |
| 3 | 98468899 | FLAT ENGINE GASKET |
| 4 | 4641221 | RING |
| 5 | 4641220 | NUT |
| 6 | 98418980 | OIL FILLER PLUG ASSY |
| 7 | 98418978 | GASKET |
| 8 | 99441578 | FLANGE ASSY |
| 9 | 16605734 | HEXAGON BOLT M8X30 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
