8360SRC46.10A007

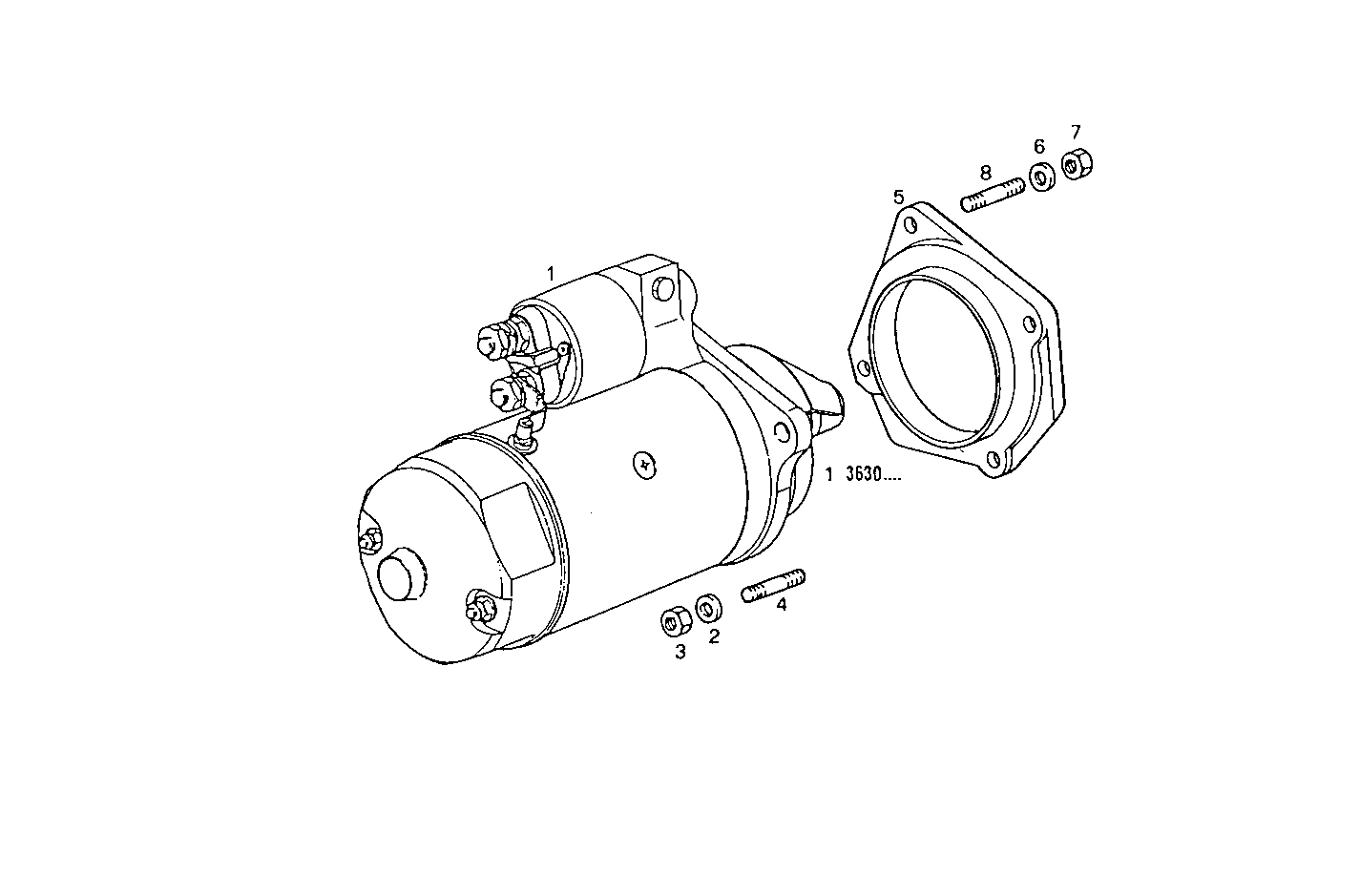

3600.063 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4786023 | STARTER MOTOR ASSY |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 12164711 | HEXAGON NUT M10X1,25 |
| 4 | 13546224 | STUD |
| 5 | 4860391 | SPACER |
| 6 | 17095314 | WASHER Ø12X24 MM [up to ...] |
| 7 | 16101511 | HEXAGON NUT M12X1,25 |
| 8 | 13530224 | STUD M12X1,25 |
