8360SRC46.10A007

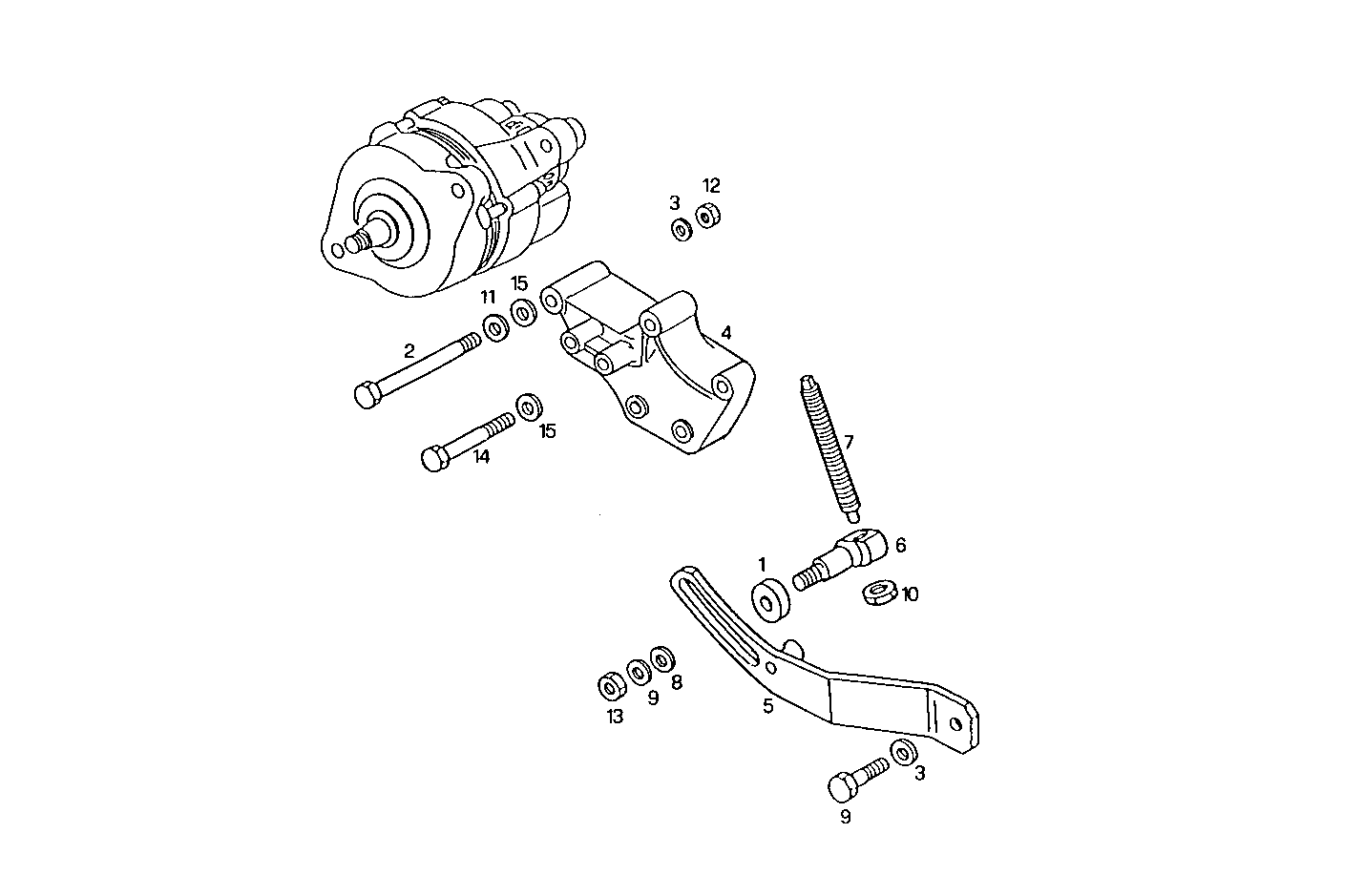

4010.070 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING �10X21X2 MM |
| 3 | 17091074 | WASHER �12X24X2,8 MM |
| 4 | 98464566 | SUPPORT |
| 5 | 99455377 | BELT TENSIONER ASSY [from 257629] |
| 6 | 4853920 | ADJUSTING SCREW |
| 7 | 4853921 | ADJUSTING SCREW |
| 8 | 759850 | WASHER �10X21X2 MM |
| 9 | 17090174 | SPRING WASHER �10X20 MM |
| 10 | 17157221 | NUT M10X1,25 |
| 11 | 17095324 | WASHER �12X24 MM |
| 12 | 17038621 | NUT M12 |
| 13 | 16979731 | NUT M10X1,25 |
| 14 | 15541824 | SCREW M12X1,25X120 MM |
| 15 | 17095504 | WASHER �14X28 MM |
