8360SRC46.10A007

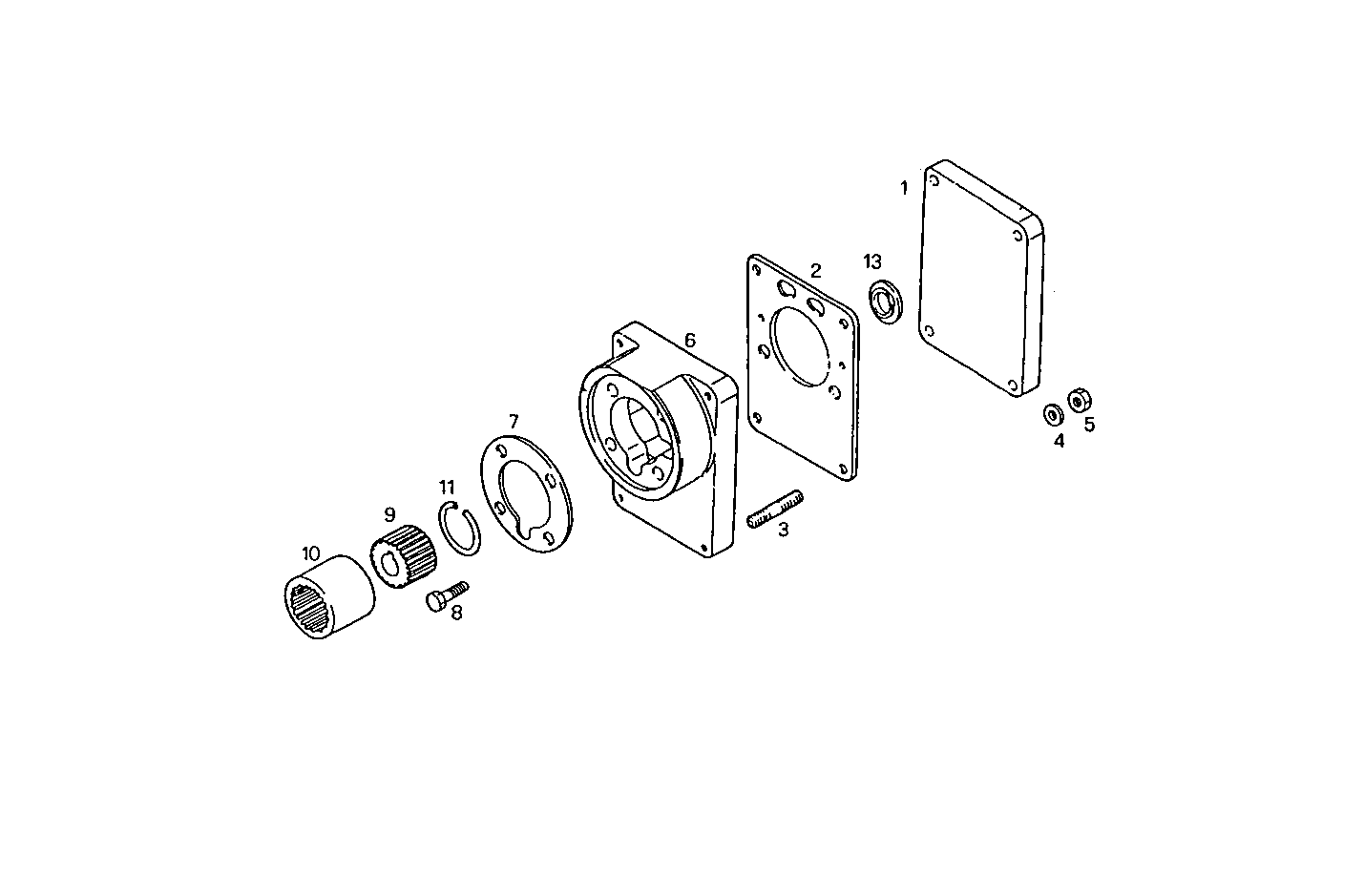

4220.005 POWER STEERING PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 61585907 | COVER |
| 2 | 98494472 | FLAT ENGINE GASKET |
| 3 | 16729530 | STUD M8X30 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 98480319 | SUPPORT |
| 7 | 4853928 | FLAT ENGINE GASKET |
| 8 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 9 | 4853929 | HUB |
| 10 | 4853930 | CONNECTOR SLEEVE |
| 11 | 17085376 | CIRCLIP Ø30 MM |
| 13 | 4609538 | CENTERING RING |
