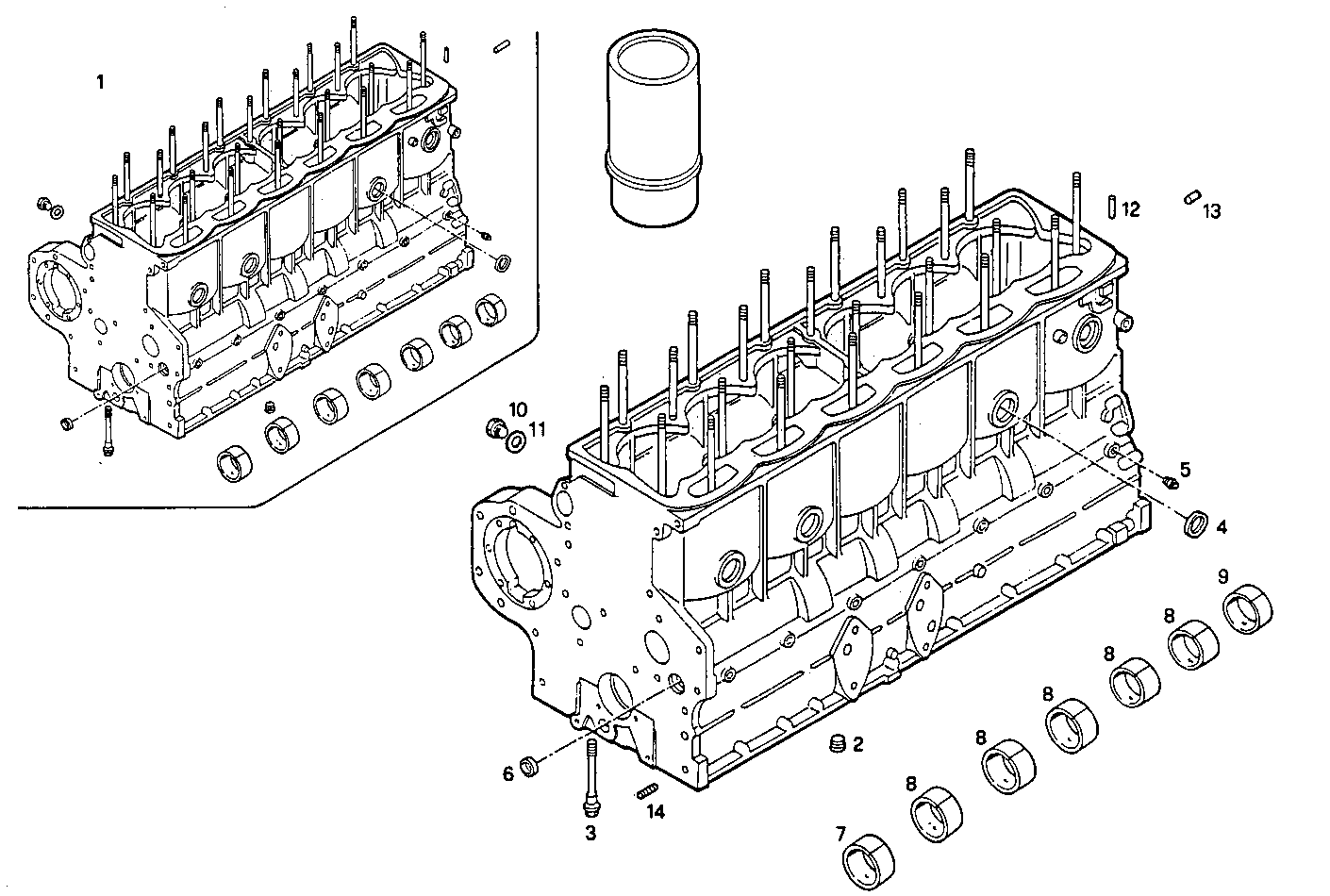

0400.018 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 4846322 | CRANKCASE ASSY |
| 2 | 4731414 | THREADED PLUG |
| 3 | 8829588 | SCREW |
| 4 | 16991170 | LOCK PLUG Ø36 MM |
| 5 | 14323911 | LOCK PLUG M10X1,25 |
| 6 | 14328801 | LOCK PLUG Ø22 MM |
| 7 | 8826317 | CAMSHAFT BEARING |
| 8 | 8829581 | CAMSHAFT BEARING |
| 9 | 8826319 | CAMSHAFT BEARING |
| 10 | 10300611 | LOCK PLUG M14X1,5 |
| 11 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 12 | 14167570 | DOWEL PIN Ø6,4 MM |
| 13 | 10839810 | DOWEL PIN Ø12 MM |
| 14 | 4708557 | DOWEL PIN |
