8361i000.00

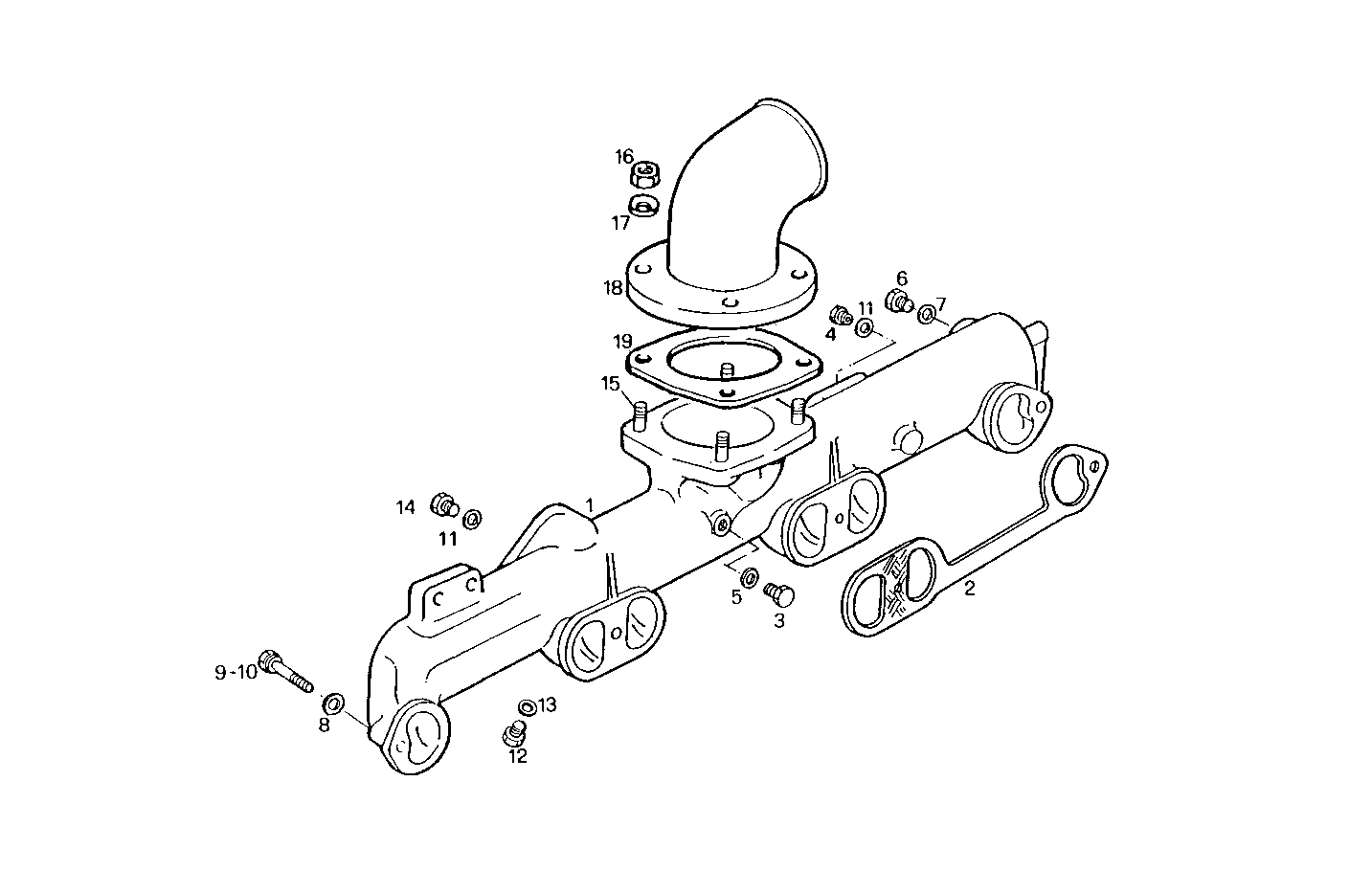

0710.031 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4726705 INTAKE ELBOW ASSY
2 500300885 INTAKE ELBOW GASK.
3 4577310 THREADED PLUG
4 4753563 PLUG M10X1,5
5 10263360 SEAL GASKET 20x26x1
6 4765225 PLUG
7 10276401 LOCK PLUG M24X1,5
8 10520001 WASHER Ø12X22 MM
9 15541021 HEXAGON BOLT M12X1,25X60 MM
10 15541621 HEXAGON BOLT M12X1,25X100 MM
11 4858606 GASKET Ø10X14X1 MM
12 16992211 THREADED PLUG M12X1,5
13 4858607 WASHER Ø12X17 MM SP=1,5 MM
14 11903111 LOCK PLUG M10X1,25
15 13543421 STUD M8X16 MM
16 17037931 HEXAGON NUT M8X1,25
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 4934956 INTAKE ELBOW
19 98412100 GASKET
