8361i000.00

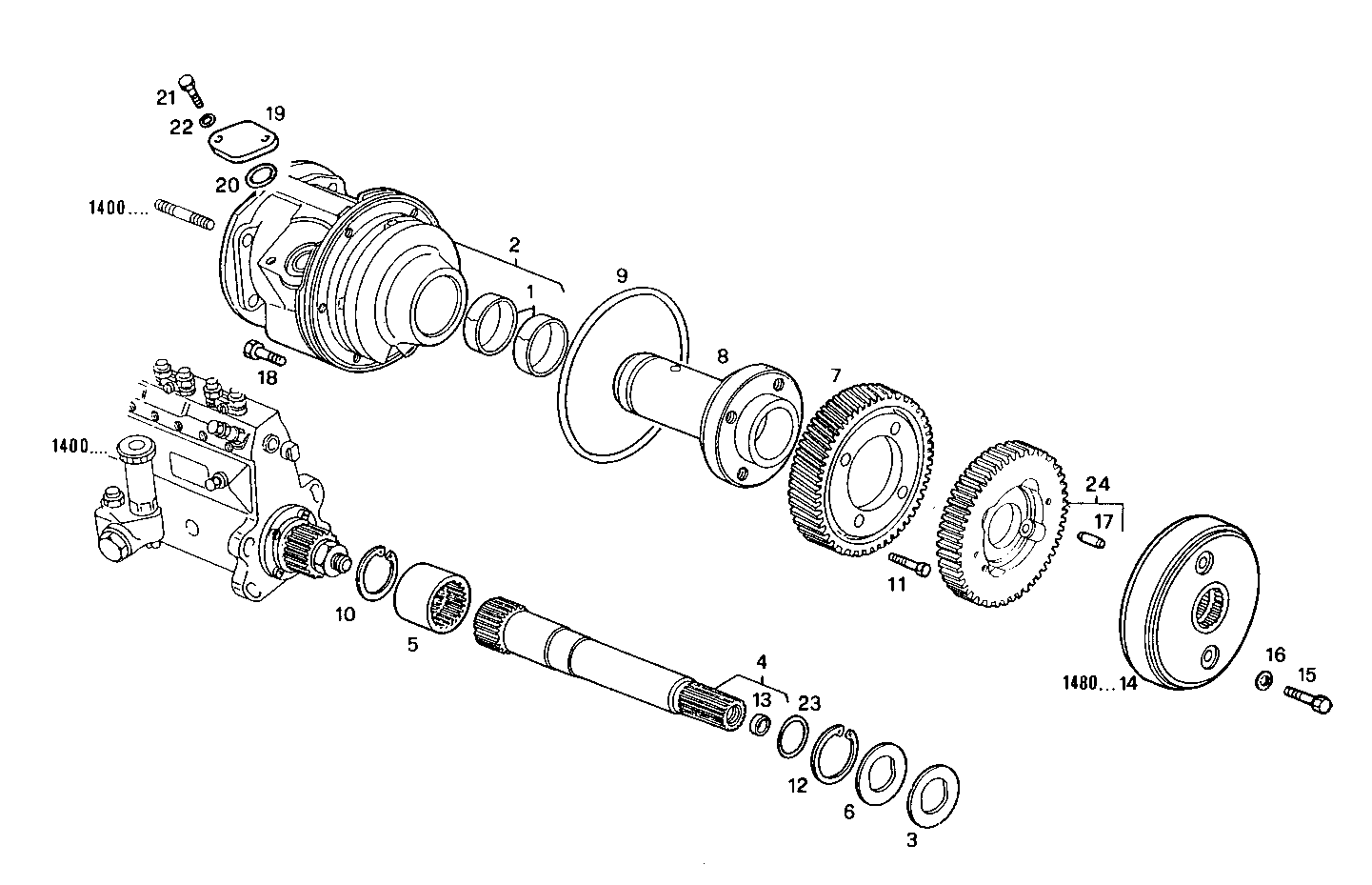

1410.037 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4601834 BUSH
2 4707603 SUPPORT ASSY
3 4667498 WASHER
4 4708207 BUSH
5 4708210 INJECT.PUMP BUSH
6 4708213 CIRCLIP
7 4722819 INJ.PUMP DRIV.GEA
8 4722820 INJECT.PUMP SPIND
9 14456781 O-RING SP=1,78 MM
10 11059576 CIRCLIP Ø38,8 MM
11 14233621 LOCKING SCREW M10X1,25X30 MM
12 17289281 O-RING Ø34,5 MM SP=3,53 MM
13 14328701 LOCK PLUG Ø20 MM
14 4757803 ADVANCE UNIT
15 16044130 HEXAGON BOLT M8X45 MM
16 11194071 WASHER Ø8X16X1,9 MM
17 14600370 DOWEL PIN Ø5 MM
18 14238721 LOCKING SCREW M8X45 MM
19 4711552 COVER
20 14457581 O-RING Ø20,29 MM SP=2,62 MM
21 10902121 HEXAGON BOLT M6X14 MM
22 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
24 4722821 GEAR ASSY
