8361i000.00

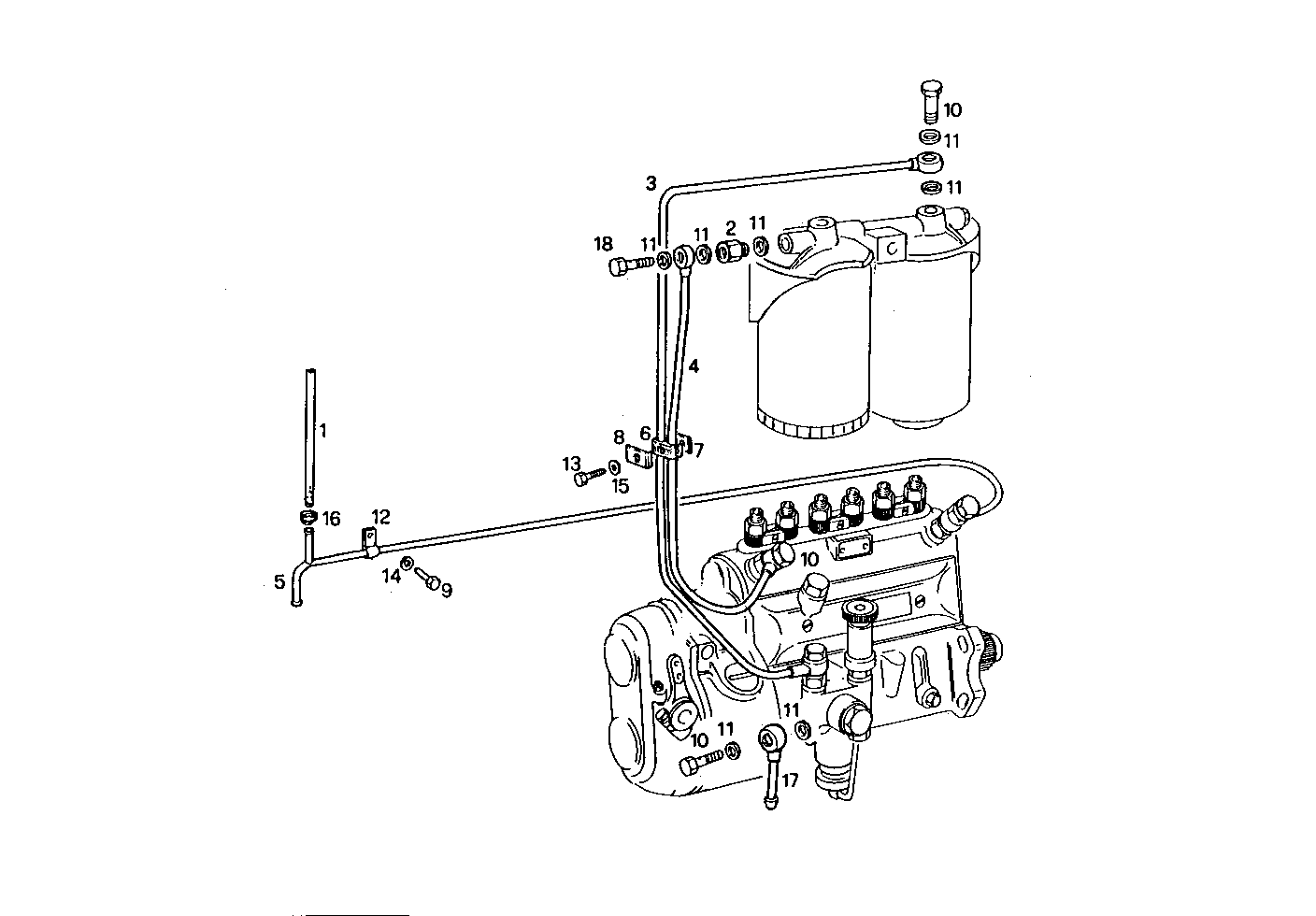

2030.014 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4934213 | RUBBER SLEEVE |
| 2 | 4728410 | PIPE SOCKET |
| 3 | 4730094 | FUEL LINE |
| 4 | 8012804 | FUEL LINE |
| 5 | 4732858 | FUEL LINE |
| 6 | 4871771 | RUBBER LUG |
| 7 | 4871773 | RETAINER ASSY |
| 8 | 4871774 | RETAINER ASSY |
| 9 | 16043124 | SCREW M8X14 MM |
| 10 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 11 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 12 | 10450090 | PIPE CLIP Ø8 MM |
| 13 | 16603824 | SCREW M6X25 |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 17088474 | WASHER Ø6X12 MM |
| 16 | 18053992 | CLIP Ø8-16 MM |
| 17 | 98404882 | PIPE SOCKET Ø8 MM |
