8361i000.00

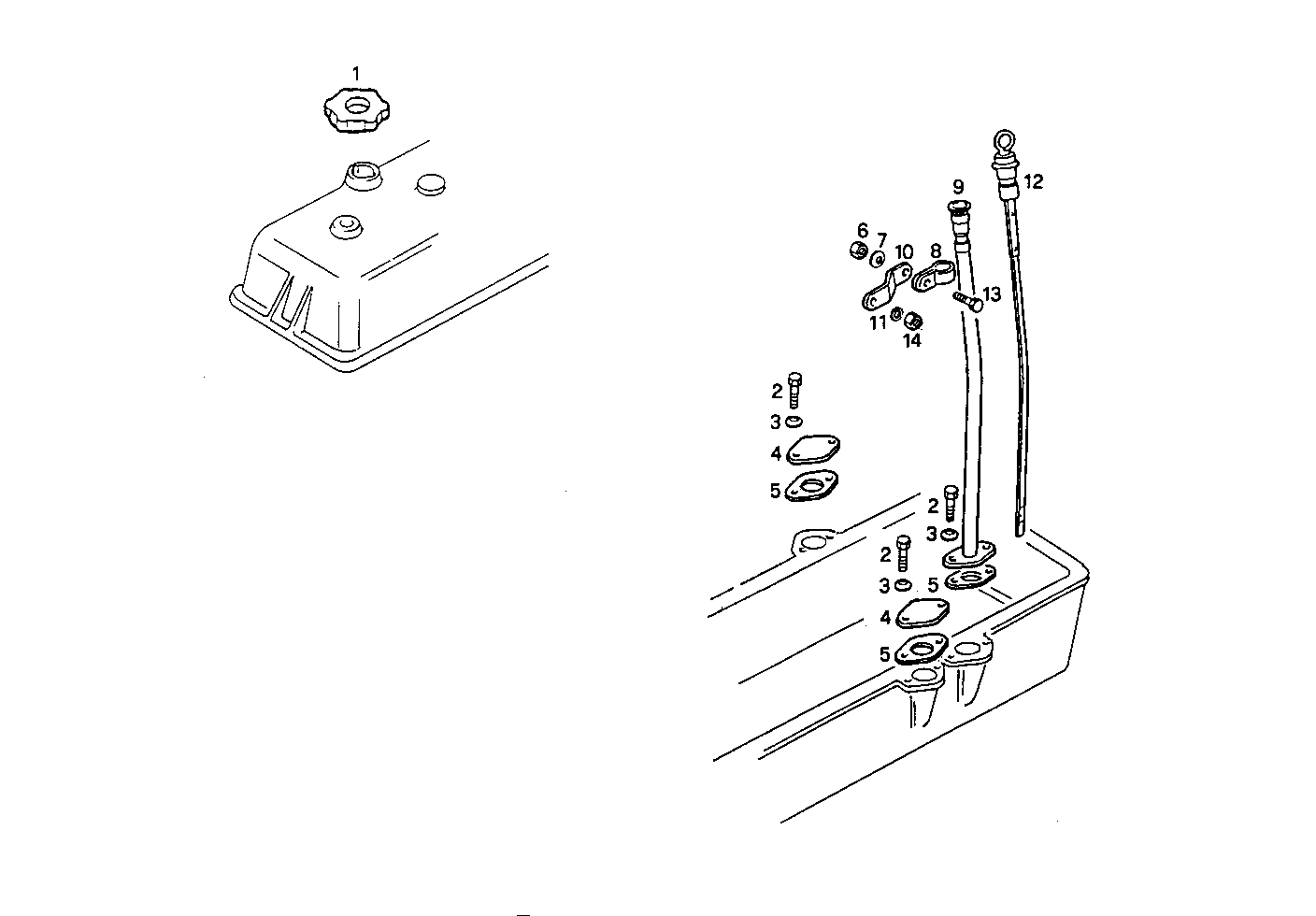

2710.016 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG ASSY |
| 2 | 16043821 | HEXAGON BOLT M8X30 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 4726341 | COVER |
| 5 | 98412099 | GASKET |
| 6 | 15896211 | HEXAGON NUT M6 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 10418400 | CLIP |
| 9 | 4735919 | ROD GUIDE |
| 10 | 4735924 | RETAINER |
| 11 | 17090274 | WASHER Ø10X20 MM |
| 12 | 4735922 | OIL DIPSTICK |
| 13 | 10902121 | HEXAGON BOLT M6X14 MM |
| 14 | 4934617 | NUT |
