8361i001.00

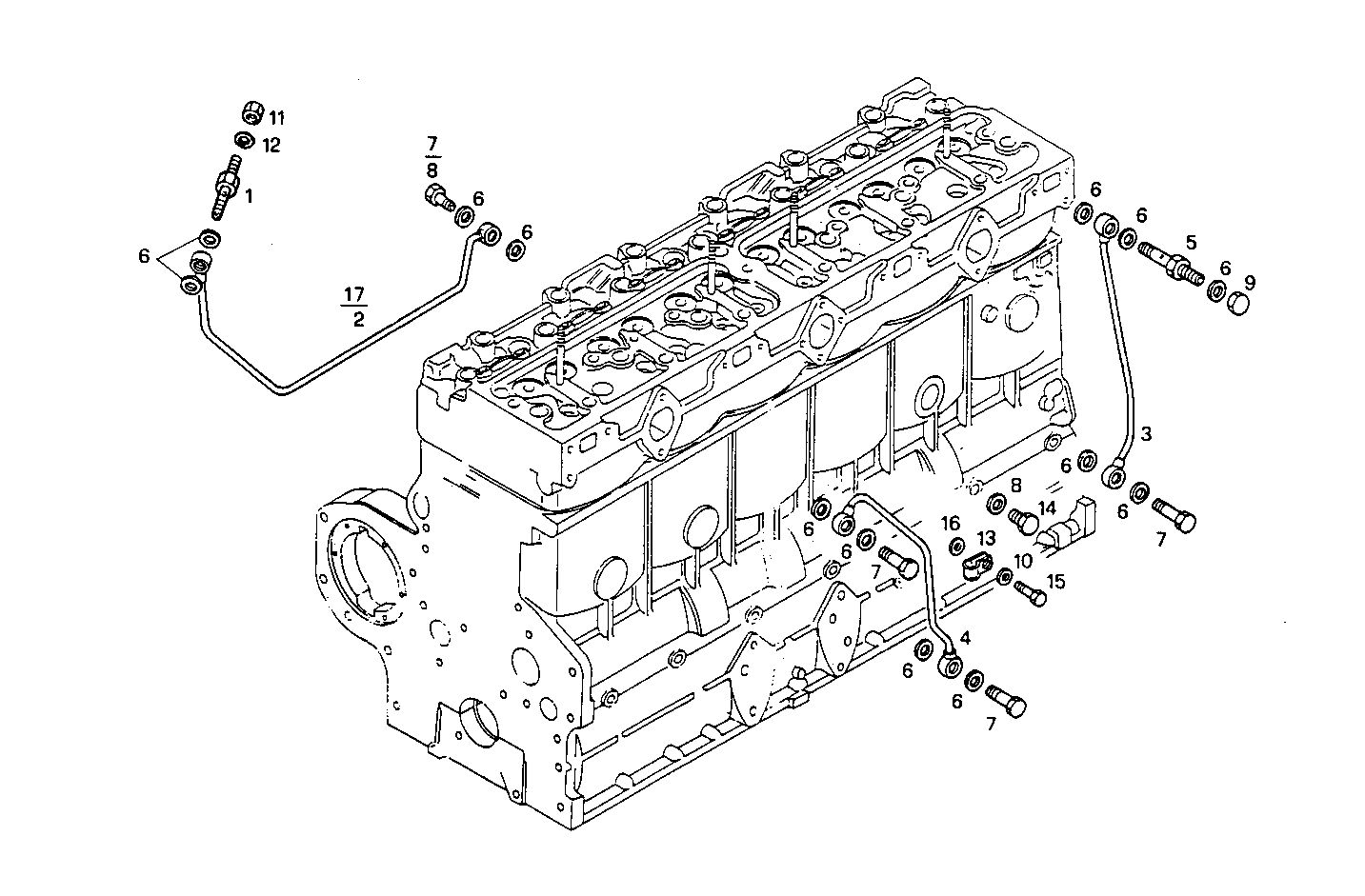

3010.038/01 LUBE OIL LINES
| Item |
Part number |
Description |
|
1 |
11901711 |
SCREW CONNECTOR |
|
2 |
4724641 |
OIL LINE |
|
3 |
98427907 |
OIL LINE |
|
4 |
98427899 |
OIL LINE |
|
5 |
98451916 |
PIPE SOCKET |
|
6 |
4858606 |
GASKET �10X14X1 MM |
|
7 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
8 |
4864079 |
SCREW CONNECTOR M10X1 |
|
9 |
38827772 |
REAR SPRING |
|
10 |
11193871 |
WASHER �8X16X1,4 MM |
|
11 |
10902111 |
HEXAGON BOLT M6X14 MM |
|
12 |
17095014 |
WASHER �10X18 MM |
|
13 |
10449890 |
PIPE CLIP �53 MM |
|
14 |
11903111 |
LOCK PLUG M10X1,25 |
|
15 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
16 |
12646701 |
WASHER �8X20 MM |
|
17 |
8011686 |
OIL LINE |
