8361i001.00

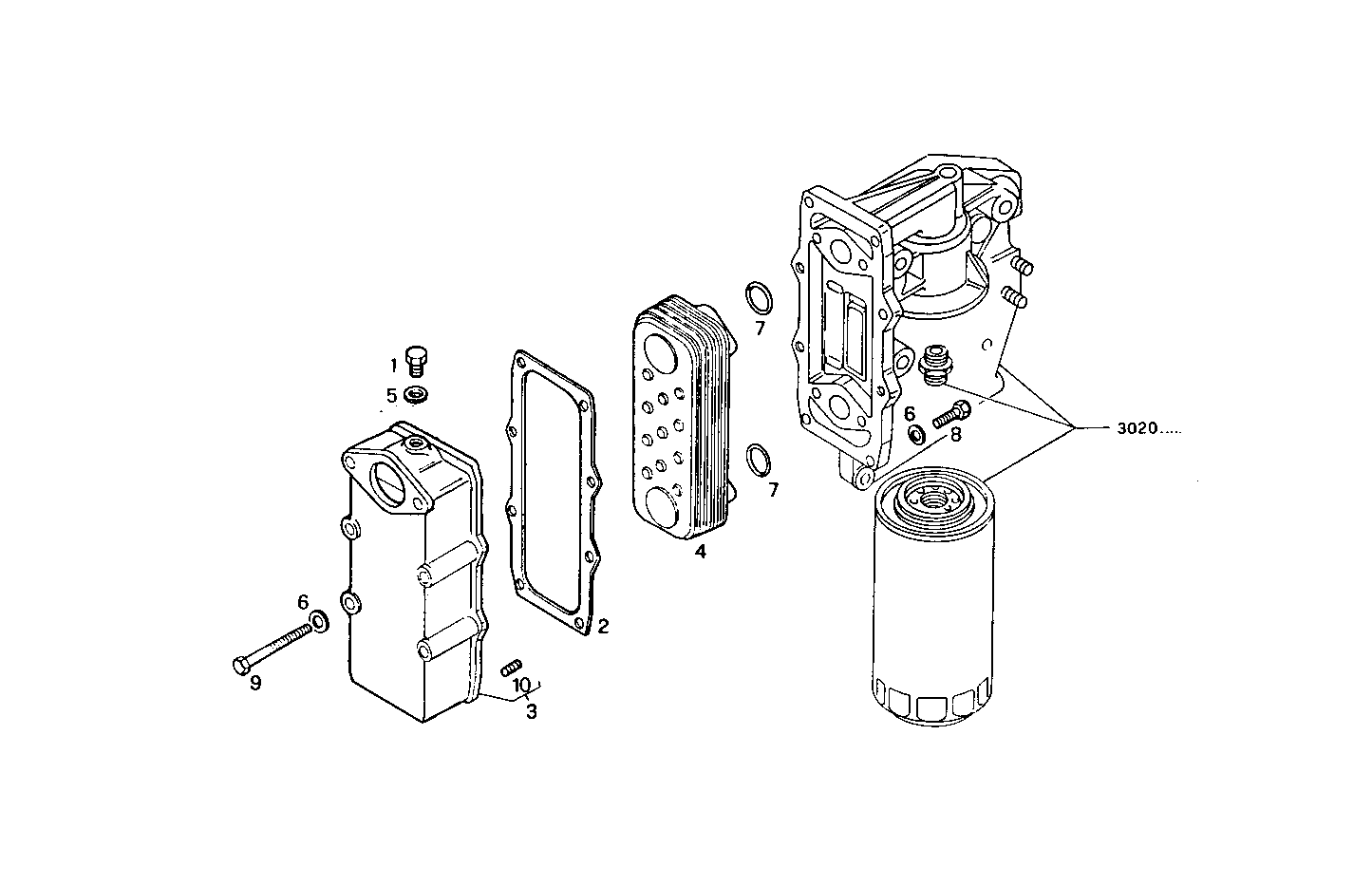

3100.012 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 10304911 THREADED PLUG M20X1,5
2 98412166 FLAT ENGINE GASKET
3 4779739 COVER ASSY
4 4738716 OIL COOLER ASSY BLACKSTONE
5 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
6 11193979 SPRING WASHER Ø8X22 MM
7 98465102 O-RING Ø44,12 MM SP=2,62 MM
8 16625734 HEXAGON BOLT M8X35
9 16045021 HEXAGON BOLT M8X90 MM
10 13582271 THREADED INSERT M8
