8361i001.00

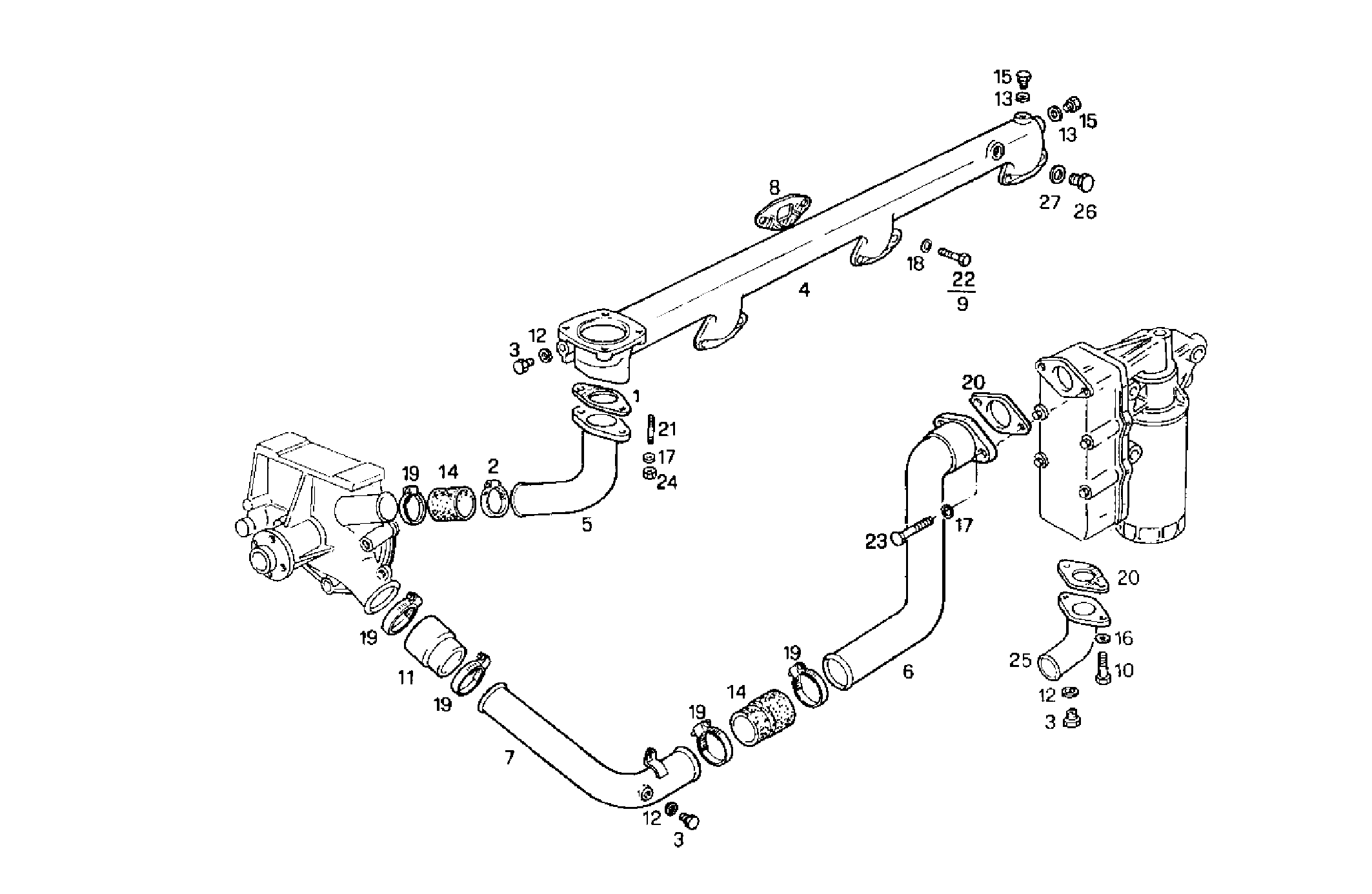

3210.030 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 98412227 GASKET
2 98490783 CLIP Ø55-65 MM
3 16992411 THREADED PLUG M16X1,5
4 4726340 WATER PIPE
5 4733010 WATER PIPE
6 98425143 WATER PIPE
7 4733185 WATER PIPE
8 98412317 GASKET
9 15971321 HEXAGON BOLT M10X1,25X75 MM
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
11 98432897 WATER HOSE
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 16508460 WASHER 22x27x1,5
14 98433328 WATER HOSE
15 10305171 PLUG M22X1,5
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17089574 WASHER Ø8X16 MM
18 17090274 WASHER Ø10X20 MM
19 17764892 PIPE CLIP Ø40-60 MM
20 98412396 GASKET
21 16729424 STUD M8X1,25X25
22 15004021 HEXAGON BOLT M10X1,25X25 MM
23 16046121 HEXAGON BOLT M8X1,25X100
24 16100821 HEXAGON NUT M8
25 4935624 WATER PIPE
26 10304911 THREADED PLUG M20X1,5
27 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
