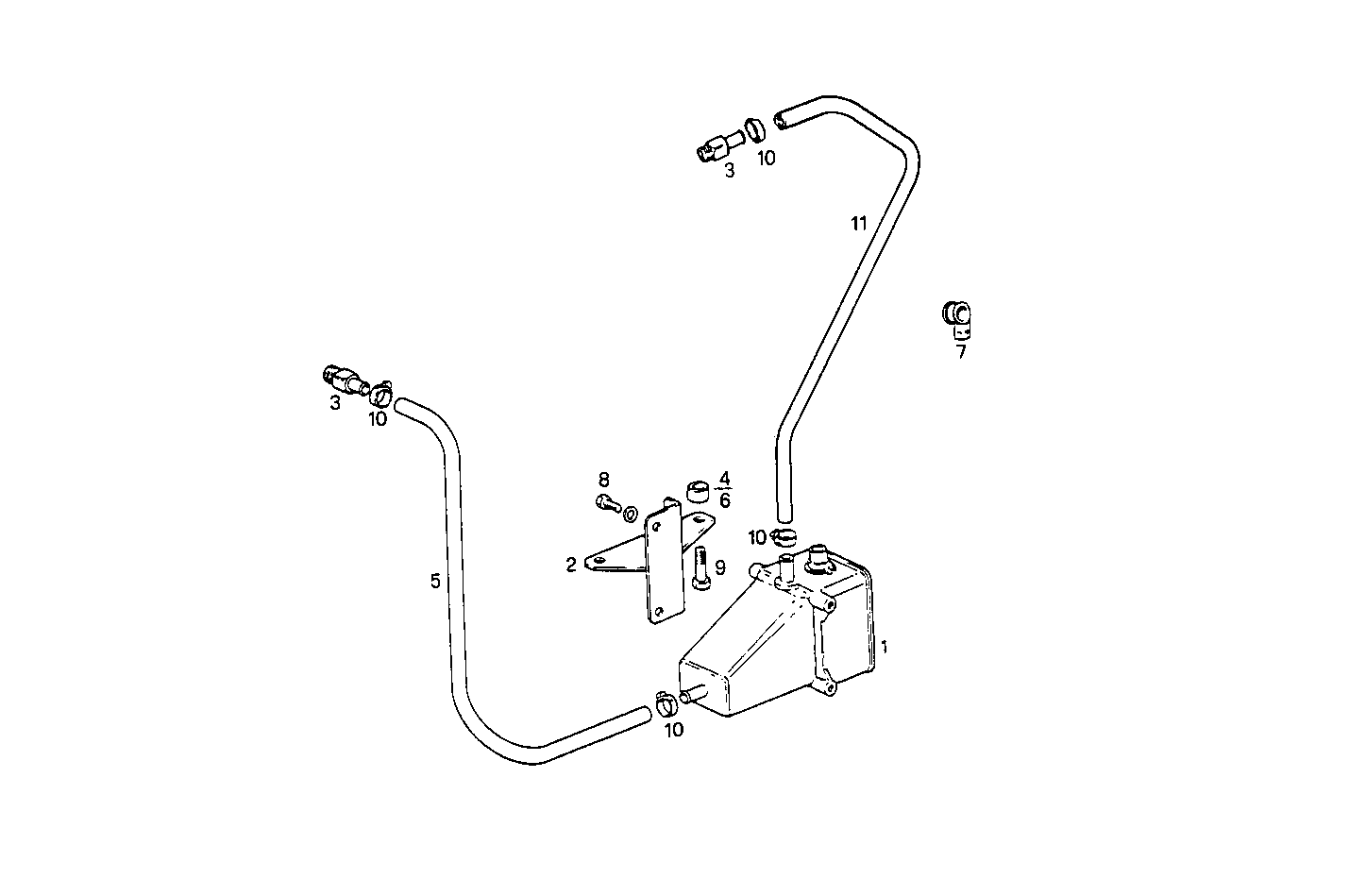

A20040007 WATER PREHEATER DEVICE - 220V - with compressor
| Item | Part number | Description |
|---|---|---|
| 1 | 8006935 | HEATER |
| 2 | 8006951 | RETAINER |
| 3 | 8113848 | PIPE SOCKET |
| 4 | 8101556 | SPACING BAR SP=13,00 MM |
| 5 | 8112187 | WATER PIPE |
| 6 | 8101581 | SPACING BAR |
| 7 | 10441690 | PIPE CLIP Ø18 MM |
| 8 | 11902121 | SCREW |
| 9 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 10 | 17764492 | CLIP Ø16-25 MM |
| 11 | 8114061 | WATER HOSE L=1000 MM |
