8361Si10.00

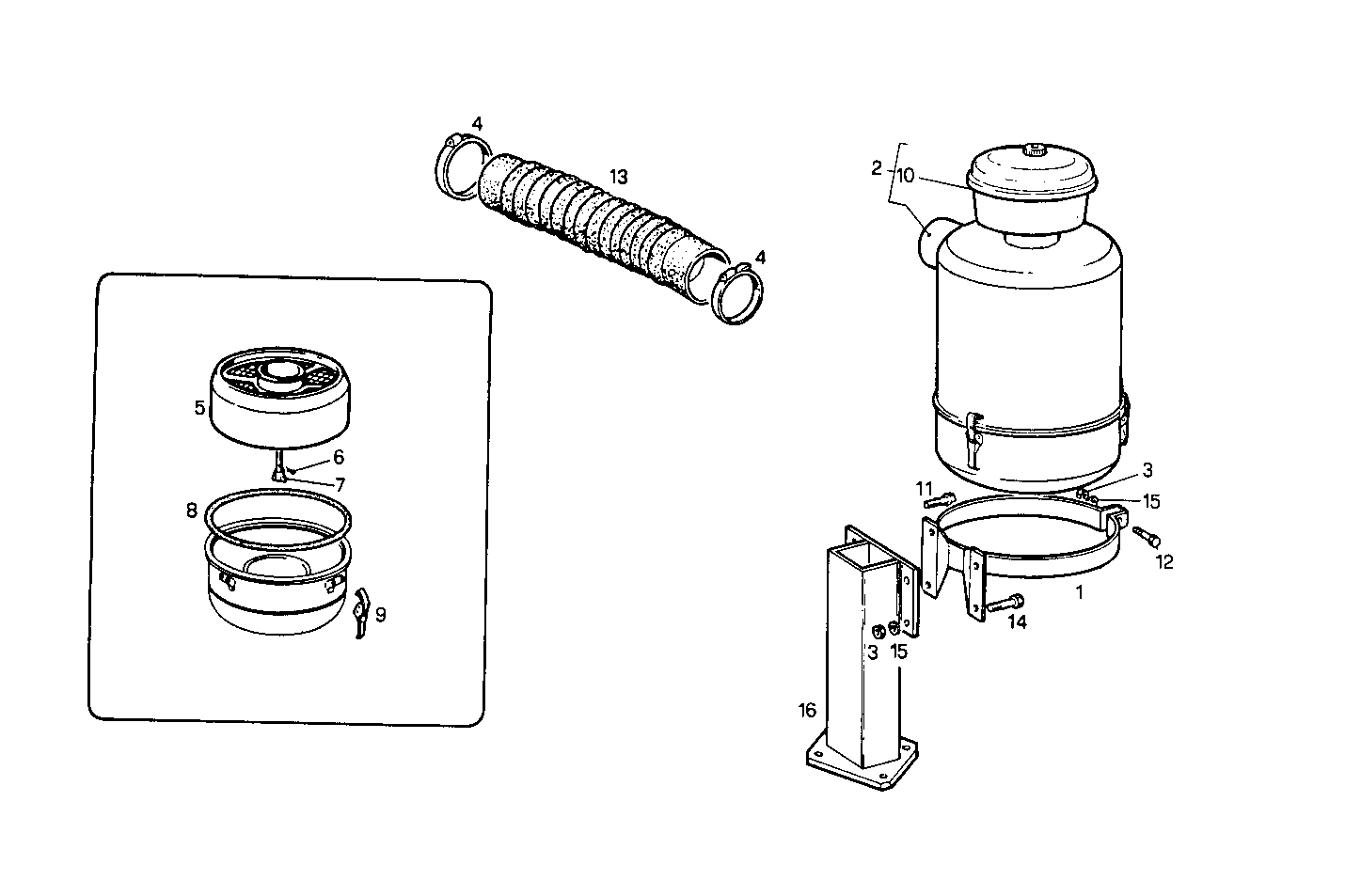

A21090008 AIR CLEANER - oil bath
| Item | Part number | Description |
|---|---|---|
| 1 | 4642957 | CLIP |
| 2 | 4934159 | AIR CLEANER |
| 3 | 12164711 | HEXAGON NUT M10X1,25 |
| 4 | 12174590 | CLIP �107-127 MM |
| 5 | 4960097 | STARTER SWITCH |
| 6 | 10734201 | SPLIT PIN �1,7 MM [up to 04-96] |
| 7 | 590275 | SCREW |
| 8 | 553122 | WASHER |
| 9 | 553662 | HOOK |
| 10 | 4931519 | PREFILTER |
| 11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 12 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 13 | 8106564 | HOSE |
| 14 | 11306921 | SCREW M10X1,25X30 |
| 15 | 11198371 | SPRING WASHER �10X20 MM |
| 16 | 8100156 | SUPPORT |
