8361Si10.00

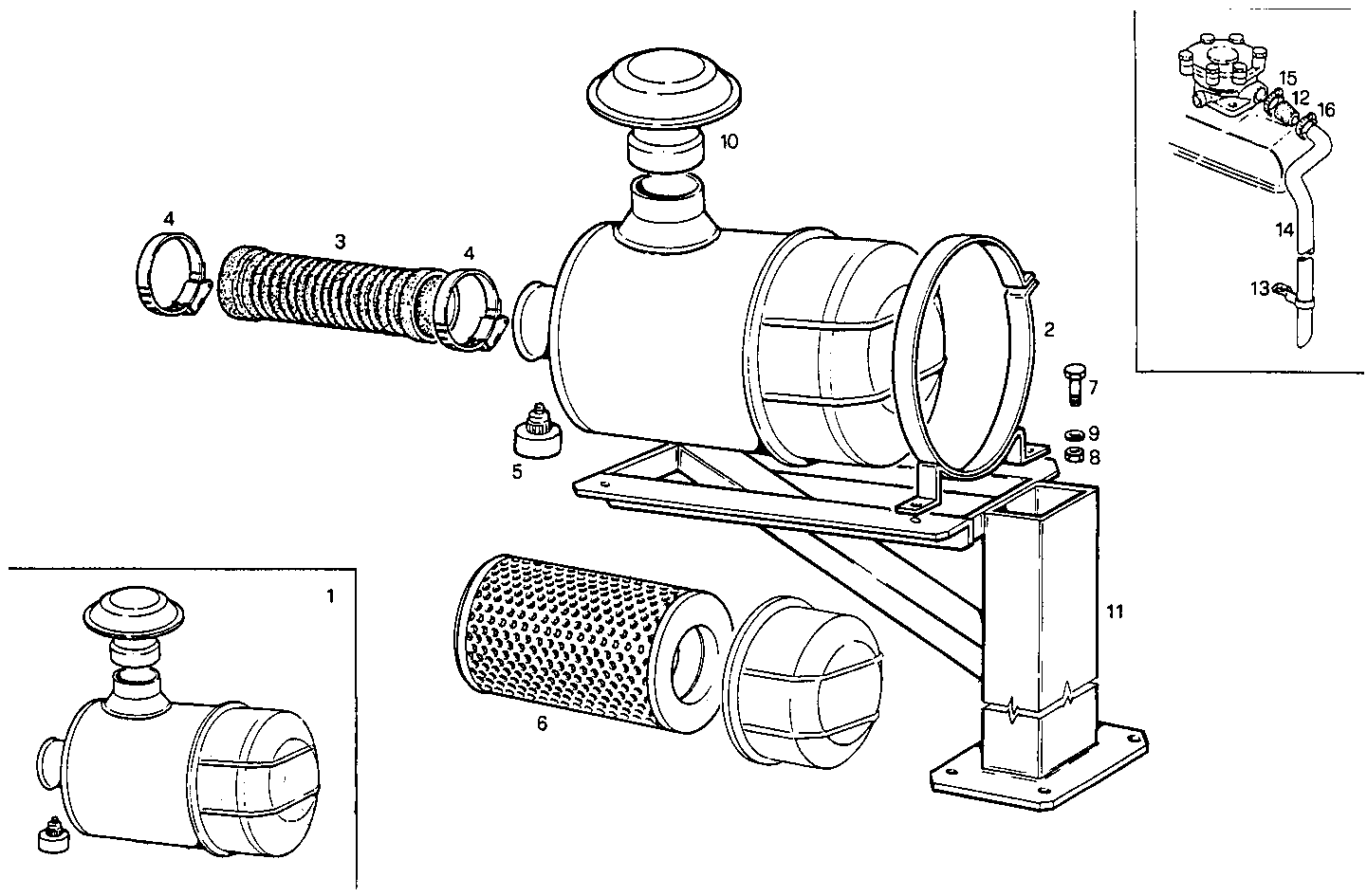

A21170005 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8106913 | AIR CLEANER ASSY |
| 2 | 8106400 | CLIP |
| 3 | 4616297 | RUBBER SLEEVE |
| 4 | 12174590 | CLIP �107-127 MM |
| 5 | 4758003 | AIR PRESSURE GAUGE |
| 6 | 8092441 | AIR FILTER ELEMENT |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 11190571 | SPRING WASHER �10X20 MM SP=2,3 |
| 10 | 8106398 | COVER |
| 11 | 8108446 | SUPPORT |
| 12 | 8015523 | RUBBER SLEEVE �30 - �25 MM |
| 13 | 4735644 | RETAINER |
| 14 | 8105979 | BREATHER PIPE |
| 15 | 17764791 | CLIP �32/50 MM |
| 16 | 17764691 | CLIP �25/40 MM |
