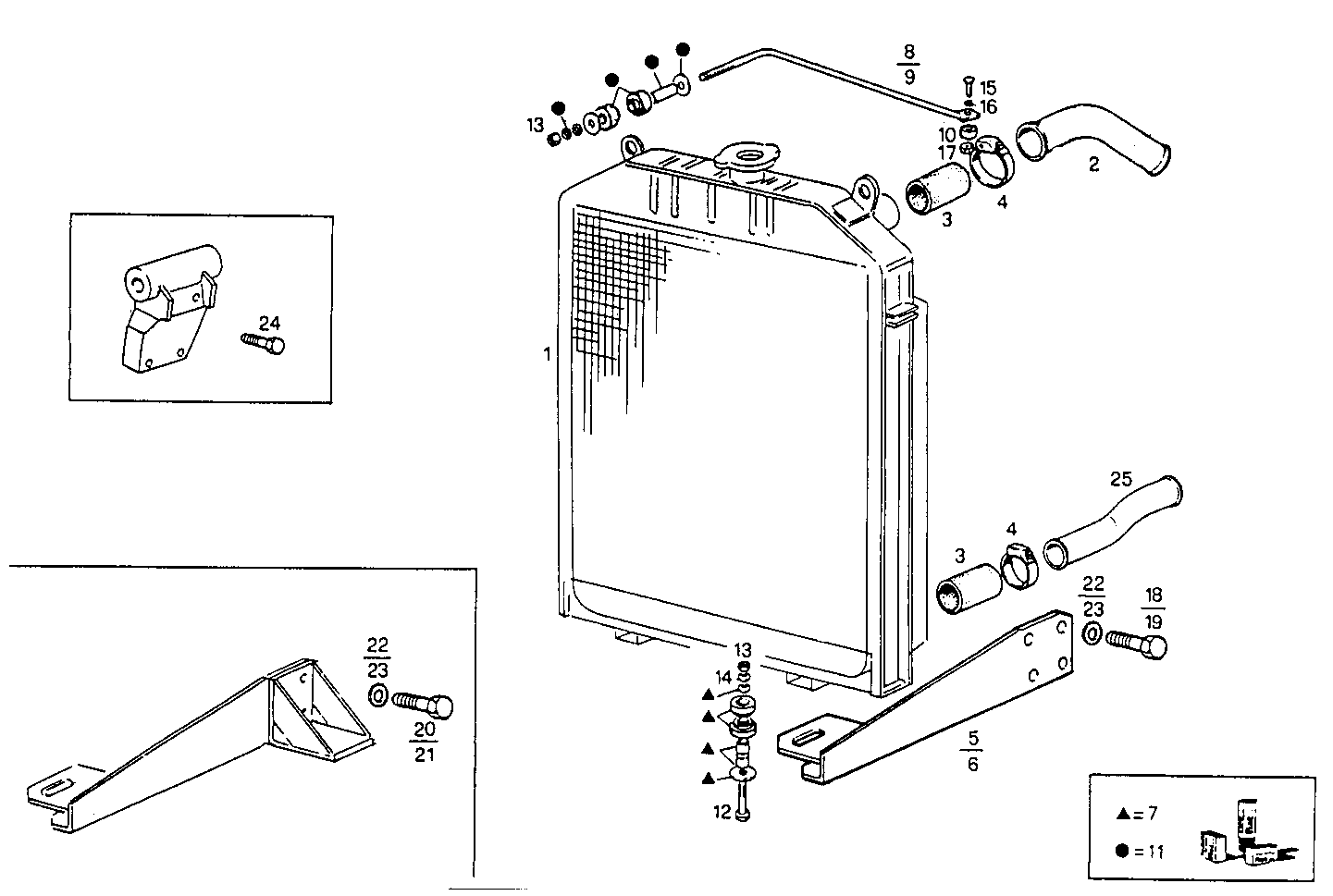

| Item |
Part number |
Description |
|
1 |
8113880 |
WATER RADIATOR ASSY |
|
2 |
8107675 |
WATER PIPE |
|
3 |
10140087 |
RUBBER SLEEVE |
|
4 |
12174790 |
CLIP �47-67 MM |
|
5 |
8107526 |
RETAINER LEFT |
|
6 |
8107527 |
RETAINER RIGHT |
|
7 |
8090412 |
KIT-RADIATOR |
|
8 |
8009095 |
TIE ROD |
|
9 |
8009096 |
TIE ROD |
|
10 |
8101556 |
SPACING BAR SP=13,00 MM |
|
11 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
12 |
15541321 |
HEXAGON BOLT M12X1,25X75 MM |
|
13 |
16101511 |
HEXAGON NUT M12X1,25 |
|
14 |
11198671 |
SPRING WASHER �13 MM |
|
15 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
16 |
11198371 |
SPRING WASHER �10X20 MM |
|
17 |
12164711 |
HEXAGON NUT M10X1,25 |
|
18 |
11391521 |
HEXAGON BOLT M16X45 MM |
|
19 |
15540521 |
SCREW M12X1,25X35 |
|
20 |
15840521 |
SCREW M16X1,5X50 |
|
21 |
15540621 |
HEXAGON BOLT M12X40 MM |
|
22 |
11194271 |
WASHER �16X32X3,4 MM |
|
24 |
8109691 |
STUD |
|
25 |
8107674 |
WATER PIPE |
