8361Si10.00

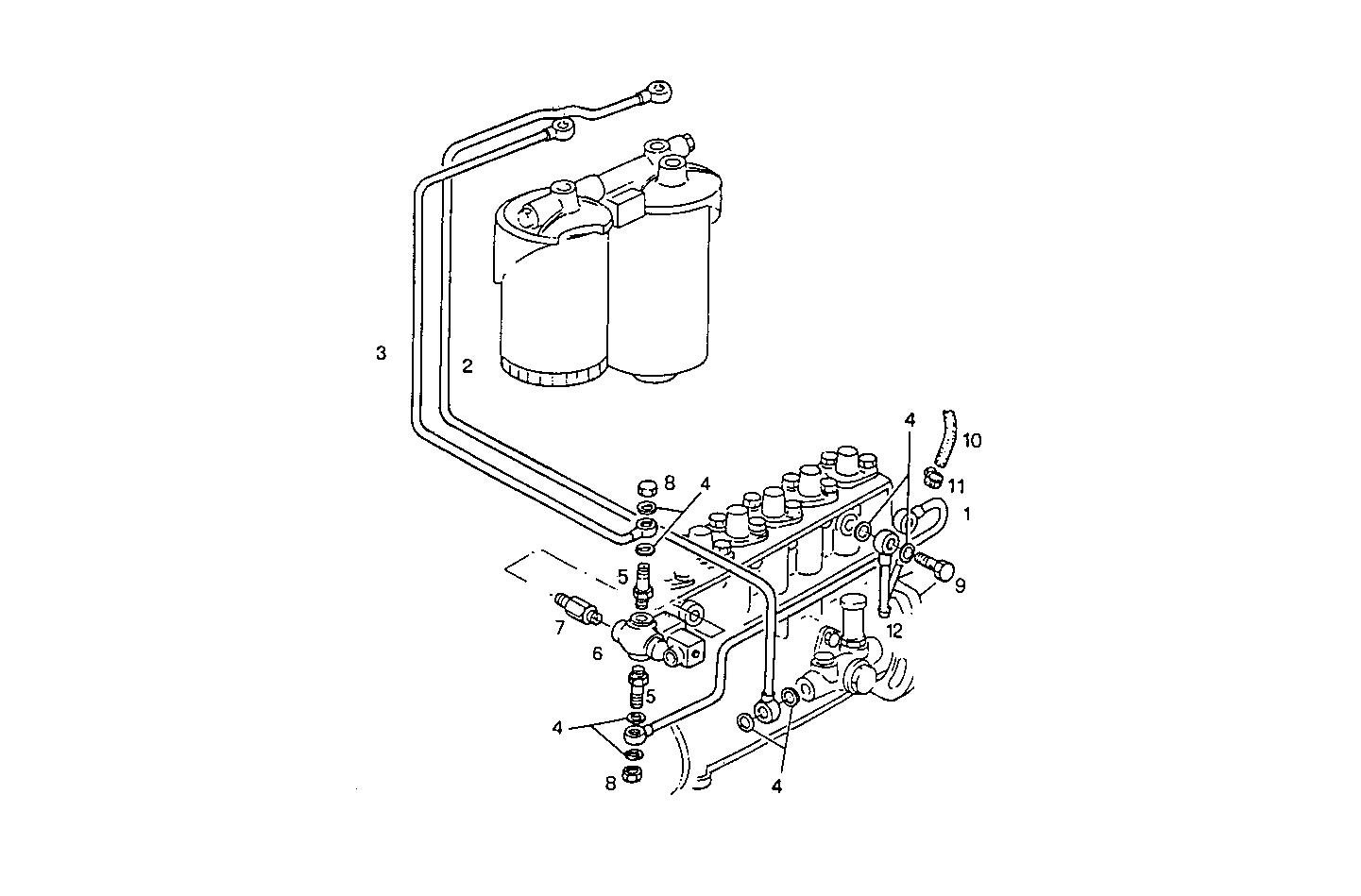

A28010008/02 ELECTRONIC GOVERNOR WOODWARD - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8109318 | FUEL LINE |
| 2 | 8109073 | FUEL LINE |
| 3 | 8109072 | FUEL LINE |
| 4 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
| 5 | 4929627 | PIPE SOCKET |
| 6 | 8108944 | ELECTROVALVE |
| 7 | 4929626 | PIPE SOCKET |
| 8 | 10182817 | LOCK PLUG |
| 9 | 4936577 | SCREW CONNECTOR |
| 10 | 4934253 | RUBBER SLEEVE L=500 MM |
| 11 | 12173690 | CLIP Ø14-22 MM |
| 12 | 8103479 | PIPE SOCKET |
