8361Si10.00

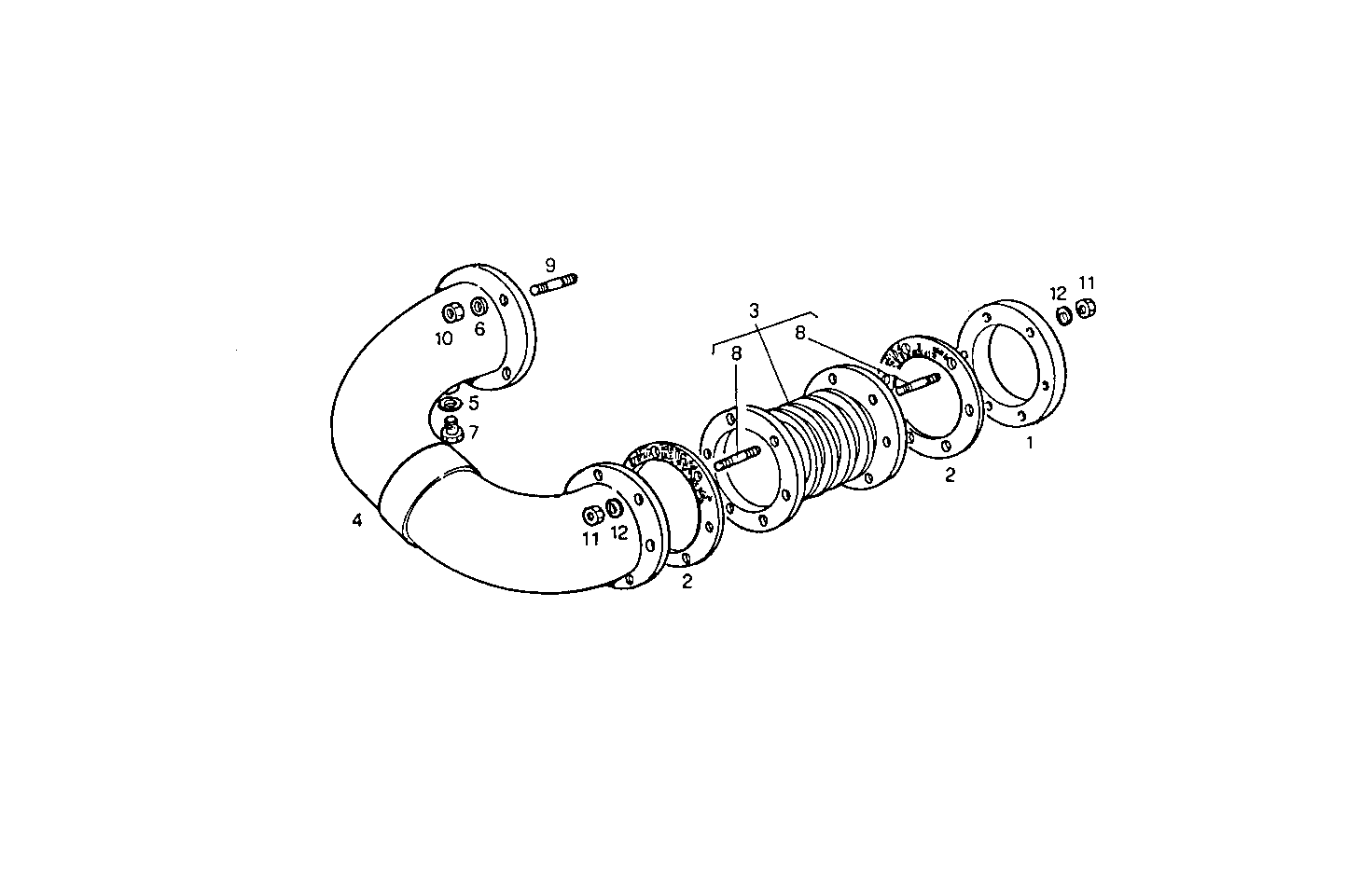

A40030001 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 4919183 | FLANGE |
| 2 | 8009606 | GASKET |
| 3 | 4935594 | EXHAUST BELLOWS |
| 4 | 8108203 | EXHAUST ELBOW |
| 5 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 6 | 10730521 | WASHER Ø10,2 MM |
| 7 | 10300511 | LOCK PLUG M12X1,5 |
| 8 | 13516921 | STUD M8X12X22 MM |
| 9 | 8106798 | STUD |
| 10 | 4927248 | NUT M10X1,25 |
| 11 | 16100821 | HEXAGON NUT M8 |
| 12 | 10730321 | WASHER Ø8,15 MM |
