8361Si10.00

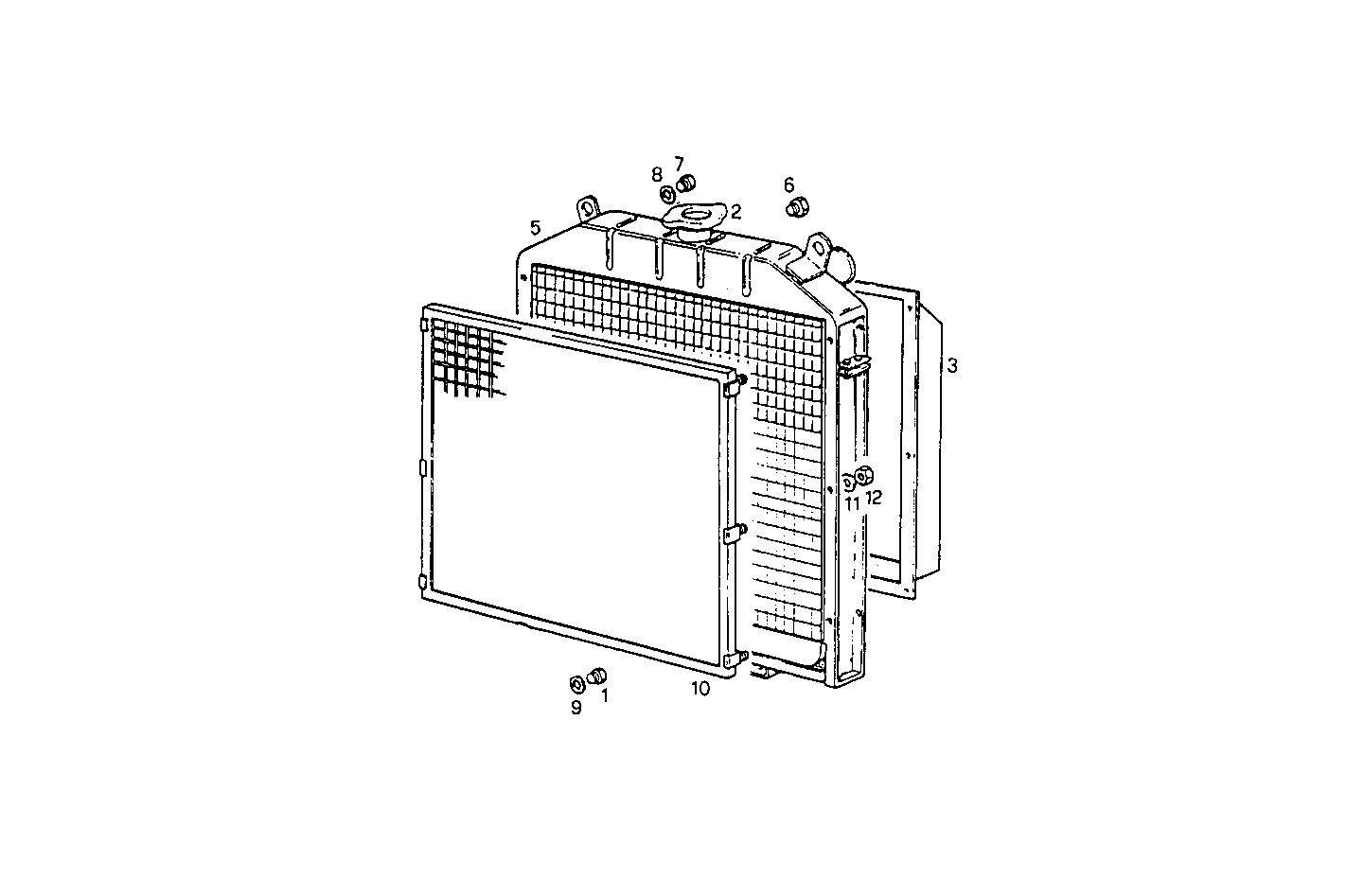

T2246002 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 10300640 | LOCK PLUG M14X1,5 |
| 2 | 8107632 | RADIATOR PLUG |
| 3 | 8107681 | AIR HOOD |
| 5 | 8107671 | WATER RADIATOR |
| 6 | 8008747 | PLUG |
| 7 | 10300511 | LOCK PLUG M12X1,5 |
| 8 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 9 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
| 10 | 8108066 | PROTECTION |
| 11 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
