8361Si10.00A029

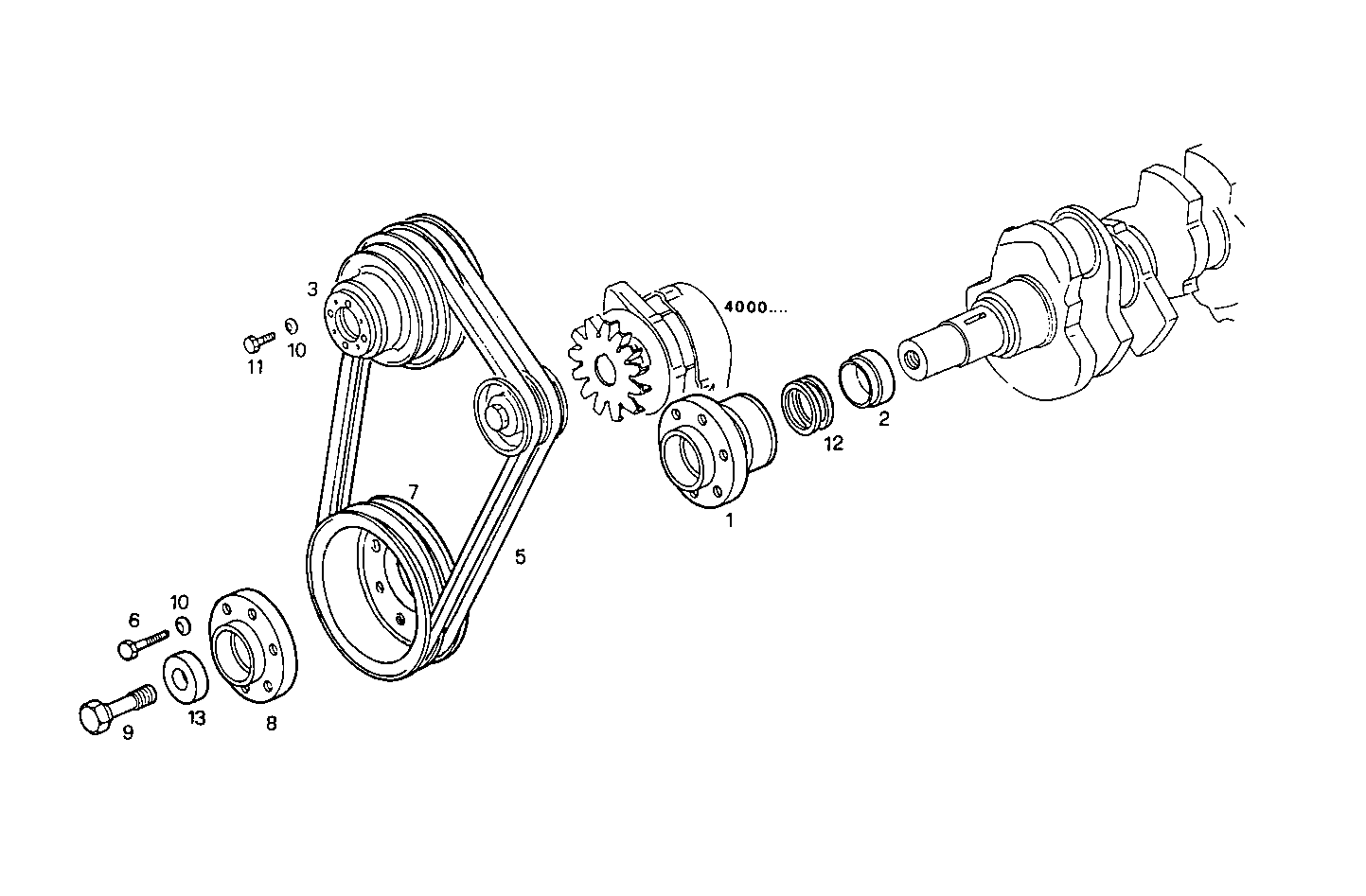

3240.127 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4820917 | HUB |
| 2 | 4711787 | BUSH |
| 3 | 8106765 | PULLEY |
| 5 | 8106362 | V-BELT KIT |
| 6 | 11234731 | HEXAGON BOLT M10X1,25X45 MM |
| 7 | 4802369 | PULLEY |
| 8 | 4725248 | SPACING BAR |
| 9 | 8823774 | SCREW |
| 10 | 17090274 | WASHER Ø10X20 MM |
| 11 | 11306931 | SCREW M10X1,25X30 |
| 12 | 4811426 | BUSH |
| 13 | 8823773 | WASHER |
