8361SI10.00A801

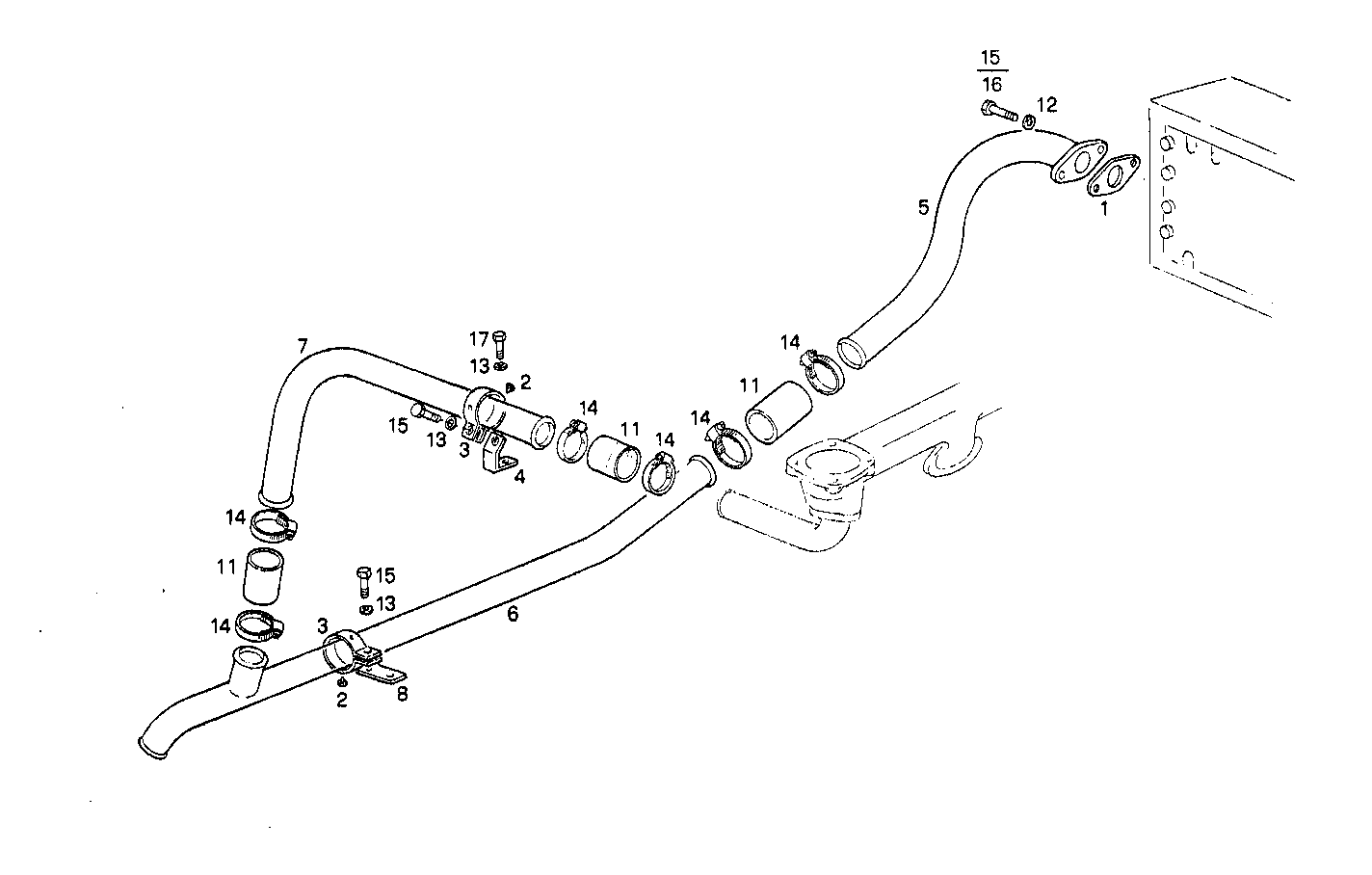

3210.133/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98412227 | GASKET |
| 2 | 4565875 | RUBBER PAD |
| 3 | 4640545 | CLIP |
| 4 | 4930322 | RETAINER |
| 5 | 8105971 | WATER PIPE |
| 6 | 8105970 | WATER PIPE |
| 7 | 8105976 | WATER PIPE |
| 8 | 8111296 | RETAINER |
| 11 | 17743887 | RUBBER SLEEVE |
| 12 | 17089574 | WASHER Ø8X16 MM |
| 13 | 17090274 | WASHER Ø10X20 MM |
| 14 | 98490783 | CLIP Ø55-65 MM |
| 15 | 16605524 | HEXAGON BOLT M8X20 MM |
| 16 | 16606124 | HEXAGON BOLT M8X50 MM |
| 17 | 16043321 | HEXAGON BOLT M8X18 MM |
