8361Si11.05

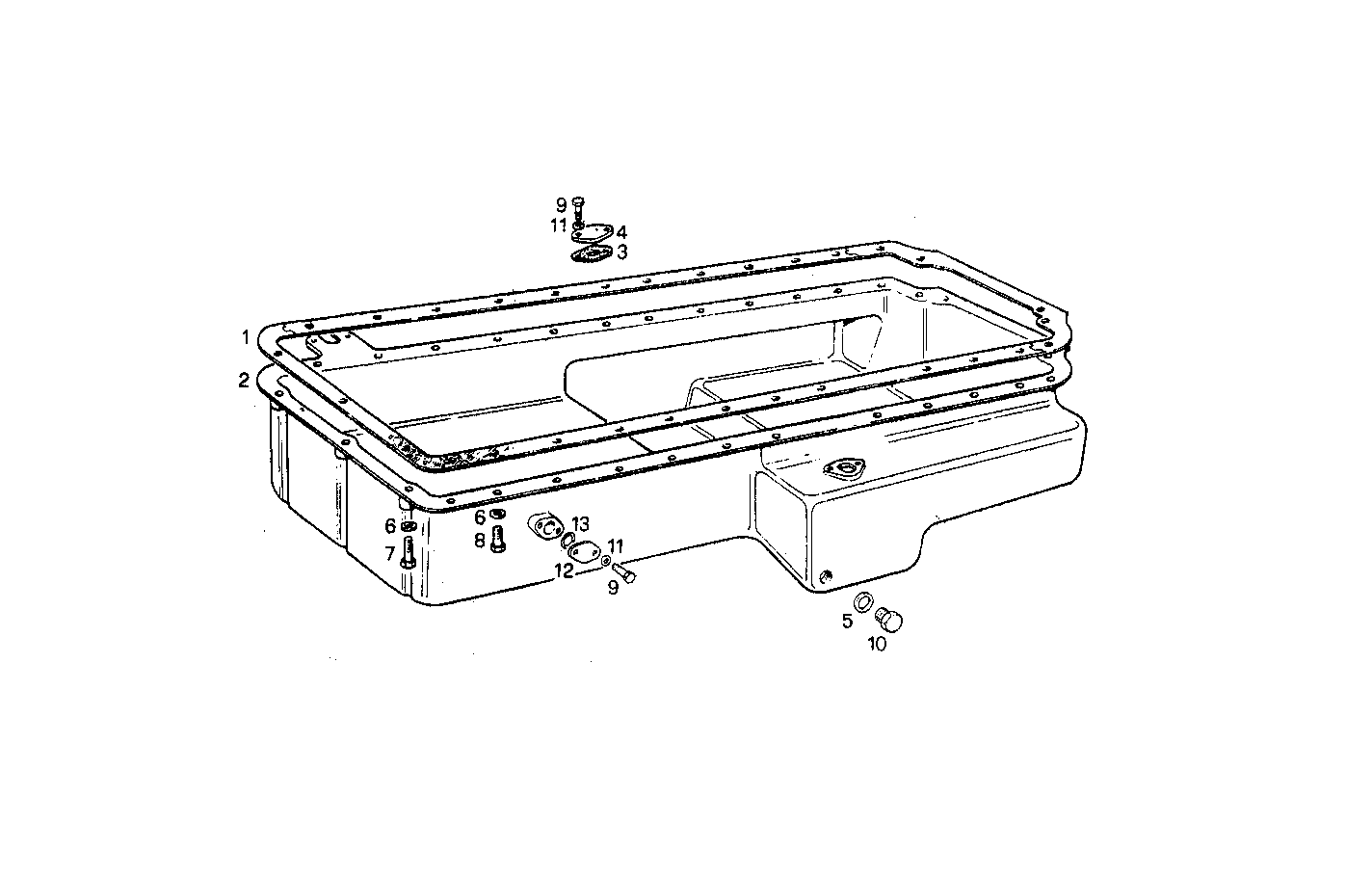

0420.015 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 98424771 OIL SUMP GASKET
2 4725293 OIL SUMP ASSY
3 98412099 GASKET
4 4735248 COVER
5 4712012 SEAL GASKET Ø22 MM
6 17090274 WASHER Ø10X20 MM
7 11234721 HEXAGON BOLT M10X1,25X45 MM
8 11306921 SCREW M10X1,25X30
9 16605524 HEXAGON BOLT M8X20 MM
10 38822532 LOCK PLUG M22X1,5
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 4726295 COVER
13 17282581 O-RING Ø28,24 MM SP=2,62 MM
